Product details
It is a type of Switch‐mode Power Rectifier. The Switch Mode DC power supply is a solid state AC to DC power conversion configuration. This arrangement operates by correcting the AC input to an unfettered DC voltage. This transitional DC voltage is then cut using pulse-width modulation through an H-Bridge formation into a high-frequency transformer. The output of the transformer is corrected and filtered to provide an exact controlled high current output.
Features
- Power pack
- Glass passivated pellet chip junction
- Ultrafast recovery time
- Low switching losses, high efficiency
- Low forward voltage drop
- High forward surge capability
- Meets MSL level 1, per J-STD-020, LF maximum peak of 245 °C (for TO-263AB package)
- Solder dip 275 °C max. 10 s, per JESD 22-B106 (for TO-220AB and ITO-220AB package)
- AEC-Q101 qualified
- TO-220AB Package
Specification

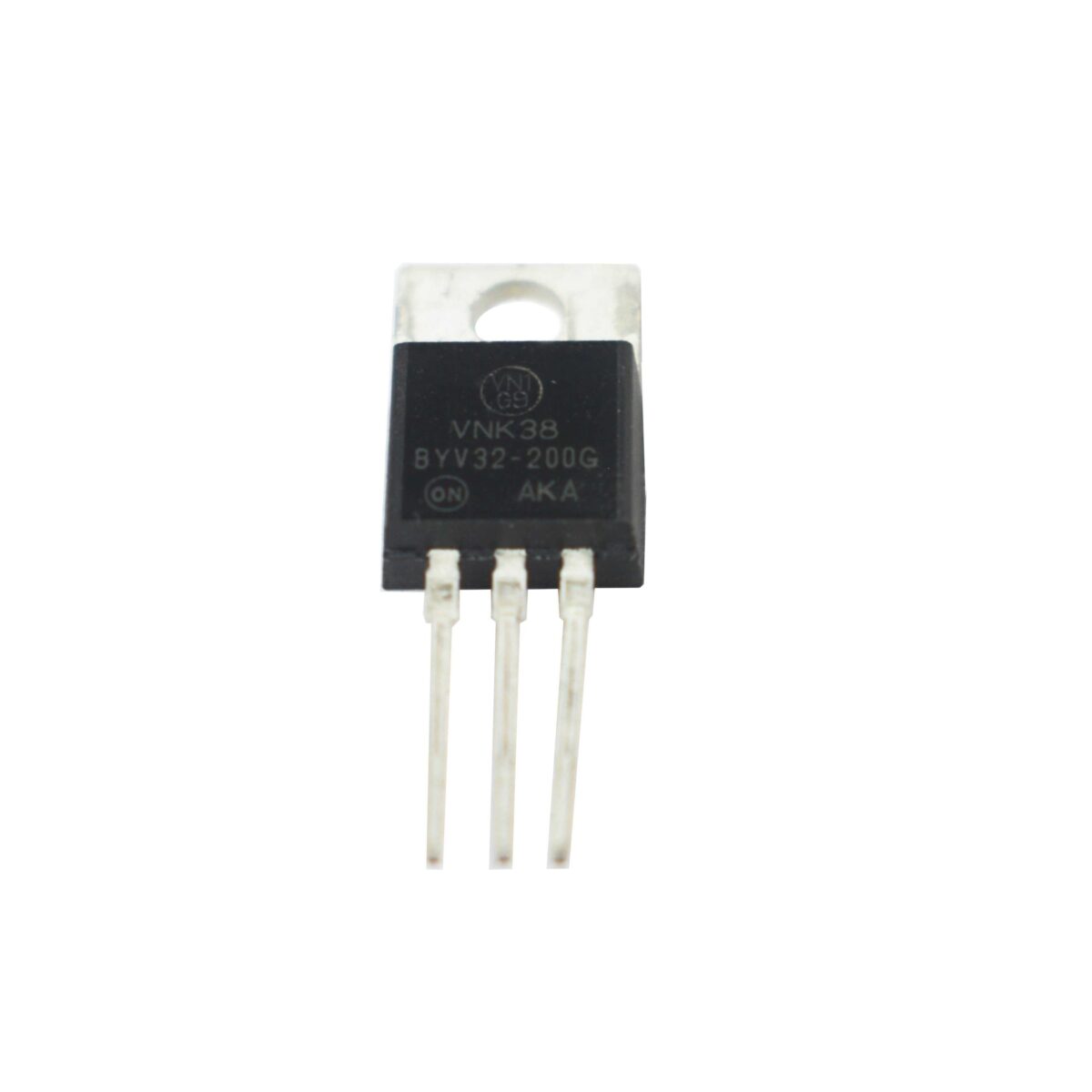

| Model | BYV32-200G | |
| Type | Switch‐mode Power Rectifier | |
| Package type | TO220 | |
| Peak Average Forward Current | 18 A | |
| Peak Forward Voltage | 1.15 V | |
| Peak Non-Repetitive Surge Current | 150 A | |
| Peak Reverse Current | 10uA | |
| Peak Reverse Recovery Time | 25 ns | |
|
-65°C to 150°C | |
| Country of Origin | China |
