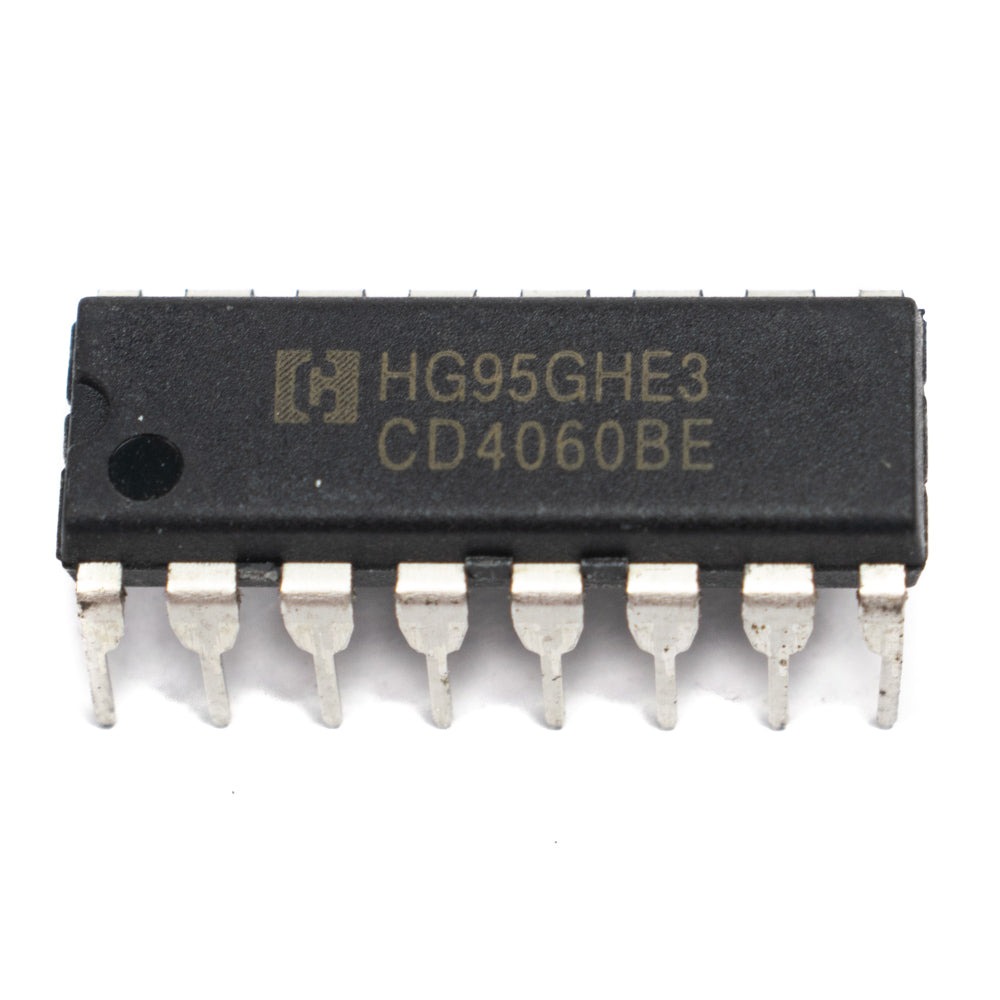

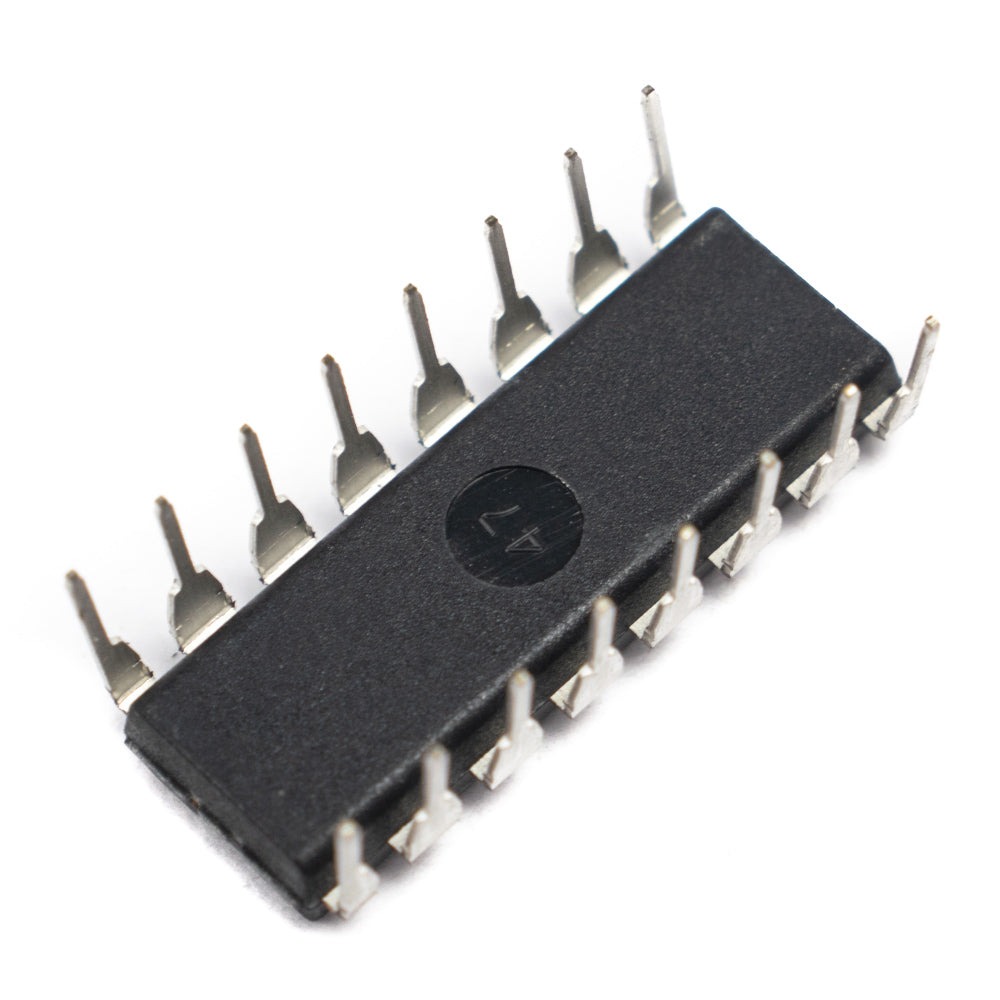

CD4060 CMOS 14-Stage Ripple-Carry Binary Counter/Divider and Oscillator

It’s a CD 4060 CMOS 14 stage ripple carry binary counter. This binary counter generally use in control counter, Timers, Frequency dividers, time delay circuit.

Features

• 12 MHz clock rate at 15 V
• Common reset
• Fully static operation
• Buffered inputs and outputs
• Schmitt trigger input-pulse line
• 100% tested for quiescent current at 20 V
• Standardized, symmetrical output characteristics
• 5-V, 10-V, and 15-V parametric ratings
• Meets all requirements of JEDEC Tentative Standard No. 13B, “Standard Specifications for Description of ’B’ Series CMOS Devices.

Oscillator Features:

• All active components on chip
• RC or crystal oscillator configuration
• RC oscillator frequency of 690 kHz min. at 15 V

Applications:

• Control counters
• Timers
• Frequency dividers
• Time-delay circuits
