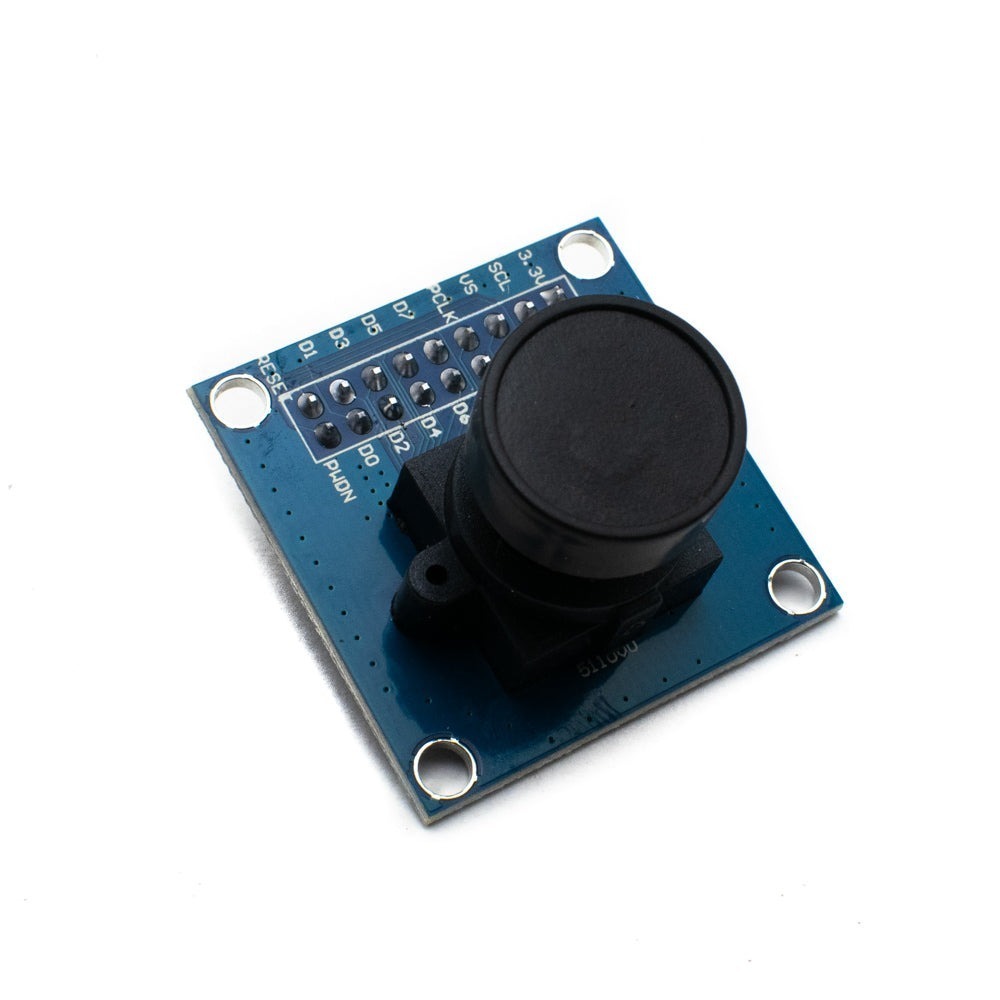

CMOS OV7670 Camera Module

Original price was: ₹294.47.Current price is: ₹249.68. (Including tax)

Discount per Bulk Quantity

Quantity	Discount	Price
5 - 10	5%	₹237.20 (Including tax)
11 - 20	8%	₹229.71 (Including tax)
21 - 40	10%	₹224.72 (Including tax)
41 - 100	12%	₹219.73 (Including tax)

Out of stock

This product is currently sold out.

No worries! Enter your email, and we'll let you know as soon as it's back in stock.

Fast Shipping
Get the Priority Shipping on Prepaid Orders

Prepaid Orders

Normal Shipping
Get Normal Delivery (Surface) with Cash On Delivery

COD Orders

Compare

Add to wishlist

15 People watching this product now!

SKU: rz24335610 Categories: All Categories, Miscellaneous Module, Modules, New Arrivals, Products on Sale, Sensors and Modules, Top Selling, Top Selling Products Tags: Arduino, Camera, CAMERACHIPTM, cmos, OV7670

Description

The OV7670 CAMERACHIPTM is a low voltage CMOS image sensor with the capability of a single-chip VGA camera and image processor in a compact footprint device. The OV7670 captures full-frame, sub-sampled, or windowed 8-bit pictures in a variety of formats using the Serial Camera Control Bus (SCCB) interface. This device contains an image array that can operate at up to 30 frames per second (fps) in VGA and allows the user total control over picture quality, formatting, and output data transmission.

The SCCB interface also allows you to programme all of the necessary image processing operations, such as exposure control, gamma, white balance, colour saturation, hue adjustment, and more. Furthermore, OmniVision CAMERACHIPs employ proprietary sensor technology to improve image quality by reducing or eliminating common lighting/electrical sources of image contamination, such as fixed pattern noise (FPN), smearing, blooming, and so on, in order to produce a clean, fully stable colour image.

Pin Configuration

Pin Number	Pin Type	Description
1	VCC	+3.3V DC power input
2	GND	Ground
3	SCL	I2C Serial Clock
4	SDA	I2C Serial Data I/O
5	VSYNK	Vertical Sync output; Active High; Indicates active frames
6	HREF	Horizontal Reference; Active High; Indicates active pixels
7	PCLK	Pixel clock output from the sensor
8	XCLK	Master clock into the sensor
9	Dout9	Pixel Data Outuput 9(MSB)
10	Dout8	Pixel Data Output 8
11	Dout7	Pixel Data Output 7
12	Dout6	Pixel Data Output 6
13	Dout5	Pixel Data Output 5
14	Dout4	Pixel Data Output 4
15	Dout3	Pixel Data Output 3
16	Dout2	Pixel Data Output 2(LSB)
17	RESET	RESET
18	PWDN	PWDN

Features

High-quality F1.8 / 6mm lens
Output support for Raw RGB (GRB 4:2:2, RGB565/555/444), YUV (4:2:2) and YCbCr (4:2:2) formats
Maximum Image Transfer rate: 30 FPS for VGA
Supports image sizes: VGA, CIF, and any size scaling down from CIF to 40×30
Standard SCCB interface is compatible with I2C interface
Lens shading correction
Flicker (50/60 Hz) auto-detection
Saturation level auto adjust (UV adjust)
Edge enhancement level auto adjust
Mounted with high quality F1.8 / 6mm lens
High sensitivity for low-light operation
Exposure Control (AEC), Automatic Gain Control (AGC), Automatic White Balance (AWB), Automatic
Supports LED and flash strobe mode
Supports scaling

Specifications

Operating voltage	3.3V DC
Active Array Size	640×480
Optical Size	⅙ inch
Power Requirements	Active: 60 mW typical (15fps VGA YUV format) Standby: <20 μA
S/N Ratio	46 dB
Temperature Range	Operation: -30°C to 70°C Stable Image: 0°C to 50°C
Country of Origin	China
