₹50.08 Original price was: ₹50.08.₹40.30Current price is: ₹40.30. (Including tax)
Discount per Bulk Quantity
Quantity | Discount | Price |
---|---|---|
5 - 10 | 5% | ₹38.29 (Including tax) |
11 - 20 | 8% | ₹37.08 (Including tax) |
21 - 40 | 10% | ₹36.28 (Including tax) |
41 - 100 | 12% | ₹35.48 (Including tax) |
Out of stock
No worries! Enter your email, and we'll let you know as soon as it's back in stock.
Get the Priority Shipping on Prepaid Orders
Prepaid Orders
Get Normal Delivery (Surface) with Cash On Delivery
COD Orders

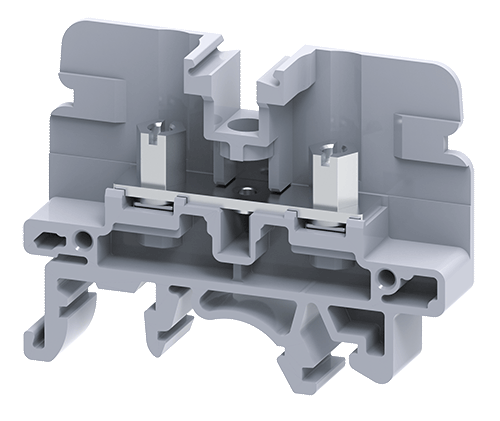

The Connectwell CSB3/N3U is a 6mm² M3 sized Stud/Bolt type Terminal Blocks, suitable for operation with a screwdriver and nut driver. This Terminal Block is recommended for applications involving connections that are subjected to high vibrations. The wire is crimped to a ring/fork type lug (ferrule) and screwed onto the Terminal Block’s flat current bar. Internal shorting links can be used to achieve cross-connection. To completely encase these assemblies, it is advised to use Protective Covers made of transparent plastic. Wiring can be done with both a screwdriver and a nut driver.
Rated Voltage | 1100V |
Rated Current | 41A |
Tightening Torque | 0.5 Nm |
Housing Material | Polyamide |
Product Function | Feed Through |
Wire Entry Orientation | Side Entry |
Mounting Possibilities | DIN 32/DIN 35/DIN 35-15 Rail |
Screw Size | M3 |
Operated by | Nut Driver/Screwdriver |
Rated Surge Voltage | 8 kV |
Pollution Degree | 3 |
Â
Dimensions
Height with DIN 32 rail | 43 mm |
Height with DIN 35 * 15mm rail | 45.4 mm |
Height with DIN 35 * 7.5mm rail | 37.9 mm |
Length | 49 mm |
Width(Thickness) | 9 mm |
Country of Origin | China |
