Connectwell CTL2.5U 2.5 sq. mm 3 Level Screw Clamp Terminal Block

Original price was: ₹118.34.Current price is: ₹95.27. (Including tax)

Discount per Bulk Quantity

QuantityDiscountPrice
5 - 105%90.49 (Including tax)
11 - 208%87.63 (Including tax)
21 - 4010%85.74 (Including tax)
41 - 10012%83.82 (Including tax)

Out of stock

This product is currently sold out.

No worries! Enter your email, and we'll let you know as soon as it's back in stock.

  • fast delivery Fast Shipping

    Get the Priority Shipping on Prepaid Orders

Prepaid Orders

  • normal shipping Normal Shipping

    Get Normal Delivery (Surface) with Cash On Delivery

COD Orders

13 People watching this product now!
Description

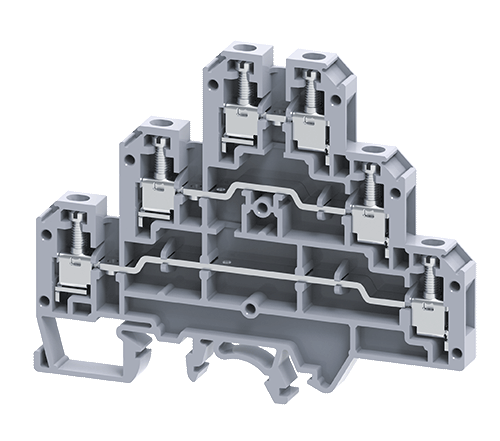

The Connectwell CTL2.5U 2.5 sq. mm 3-Level Screw Clamp Terminal Blocks. CTL2.5U Terminal Blocks are an excellent choice for control systems involving sensor and actuator applications. The simplified three-level connections greatly increase the circuit’s wiring density. The top level of the CTL2.5U terminal block connects signal wires, while the middle and bottom levels connect positive and negative potentials. In addition to the traditional white color, marking tags in blue and red are recommended for effective identification.
Specifications

Related voltage

500V

Rated Current

24A

Tightening Torque

0.4 Nm

Housing Material

Polyamide

Product Function

Triple Level

Wire Entry Orientation

Side Entry

Mounting Possibilities

DIN 32/DIN 35/DIN 35-15 Rail

Screw Size

M2.5

Operated by

Screwdriver

Rated Surge Voltage

4 KV

Pollution Degree

3



Dimensions

Height with DIN 32 rail

73.8mm

Height with DIN 35 * 15mm rail

75.6mm

Height with DIN 35 * 7.5mm rail

68mm

Length

84mm

Width(Thickness)

6mm

Country of OriginChina
