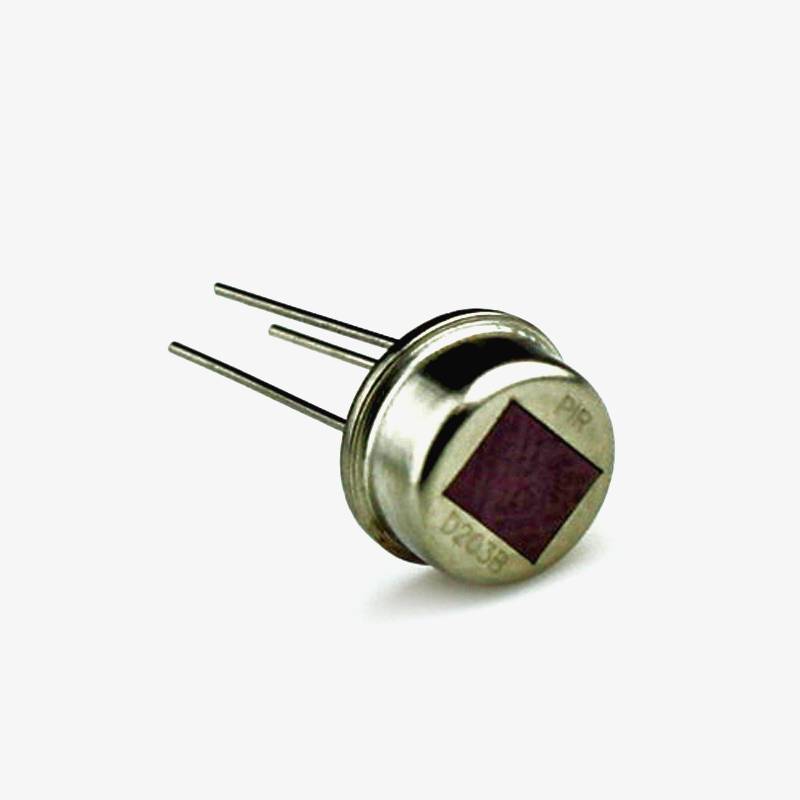

D203B Dual Elements Passive Infrared PIR Sensor used for Alarm Systems

0 Reviews
Available on backorder

Original price was: ₹67.85.Current price is: ₹51.75.

(-24%)
  • Estimated delivery time 2-4 days
  • (Subject to stock Availability)
SKU: rz24332351

Product details

Passive infrared (PIR) sensors use a pair of pyroelectric sensors to detect heat energy in the surrounding environment. These two sensors sit beside each other, and when the signal differential between the two sensors changes (if a person enters the room, for example), the sensor will engage.

Features:

  1. Large detection angle
  2. Custom design is available
  3. Higher in cost-performance

Specifications:

Encapsulation Type

TO-5

IR Receiving Electrode

2×1mm, 2 elements

Window Size

5×3.8mm

Spectral Response

5-14μm

Transmittance

≥75%

Output Signal[Vp-p]

≥3500mV

Sensitivity

≥3300V/W

Detectivity (D*)

≥1.4 ×108 cmHz1/2/W

Noise[Vp-p]

<70mV

Output Balance

<10%

Offset Voltage

0.3~1.2V

Supply Voltage

3—15V

Operating Temp

-30—70ºC

Storage Temp

-40—80ºC



Package Includes:

1 pc of D203B Dual Elements Passive Infrared PIR Sensor used for Alarm Systems
