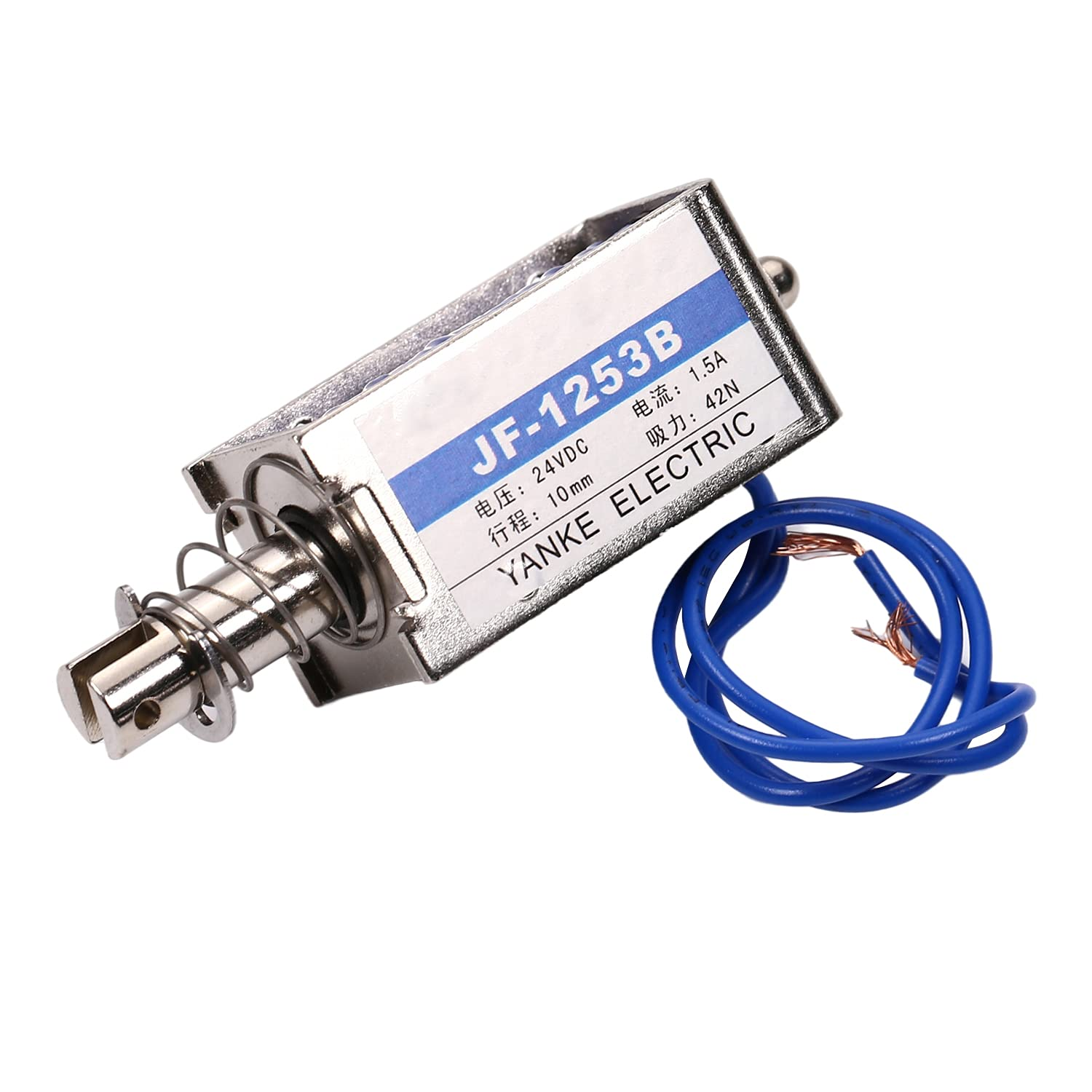

DC 24V 42N 10mm Push Pull Solenoid Electromagnet

SKU: 1031056
In Stock

1,035.00

  1. Model: DC 24V 10mm 42N
  2. Rated Operating Voltage (VDC): 24
  3. Operation Mode: Push-Pull (Normally Closed)
  4. Holding Force (N): 42
In Stock
Add to Wishlist
Add to Wishlist

Did you like this product? Add to favorites now and follow the product.

Add to Wishlist
Add to Wishlist

Description

DC 24V Push-Pull Solenoid electromagnet, 10mm 42N  Push-Pull Type, open frame type, linear motion, plunger spring return, open coil form, DC electron magnet. Used widely in home appliances, vending machines, a game machine, auto door locks.

This DC 24V 10mm 42N Push-Pull Solenoid Electromagnet can be used for locking sell-machine, storage shelf, file cabinet and etc. The hidden way of unlocking can be used for an emergency. The lock works as the circuits disconnects, and it will unlock as the instant power-on.

It is steady, durable and energy-saving, and had a long lifespan. In the anti-theft and shockproof design, the lock is better than other kinds of locks. After connecting the wires and when the current is available, the electric lock can control the door’s opening and closing.

Note: Take care of polarity while making the connection without a connector.


Features:

  1. Iron Body Material
  2. High-quality ultra-compact electric lock.
  3. Rustproof, durable, safe, convenient to use.
  4. Suction tightly sucks the iron, thus locking the door.
  5. Designed with the open frame type and mount board, high power.
  6. Easy to install for the electric door lock or other automatic door lock systems with the mounting board
  7. Applicable for being installed in the escape door or fire door electronic controlled system.
  8. Adopts the principle of electric magnetism, when the current through the silicon, the electromagnetic lock will achieve a strong.

Package Includes:

1 x DC 24V 10mm 42N Push-Pull Solenoid Electromagnet

Additional information

Model

DC 24V 10mm 42N

Rated Operating Voltage (VDC)

24

Operation Mode

Push-Pull (Normally Closed)

Holding Force (N)

42

Length (mm)

90

Width (mm)

30

Height (mm)

27

Weight (gm)

105
