Description

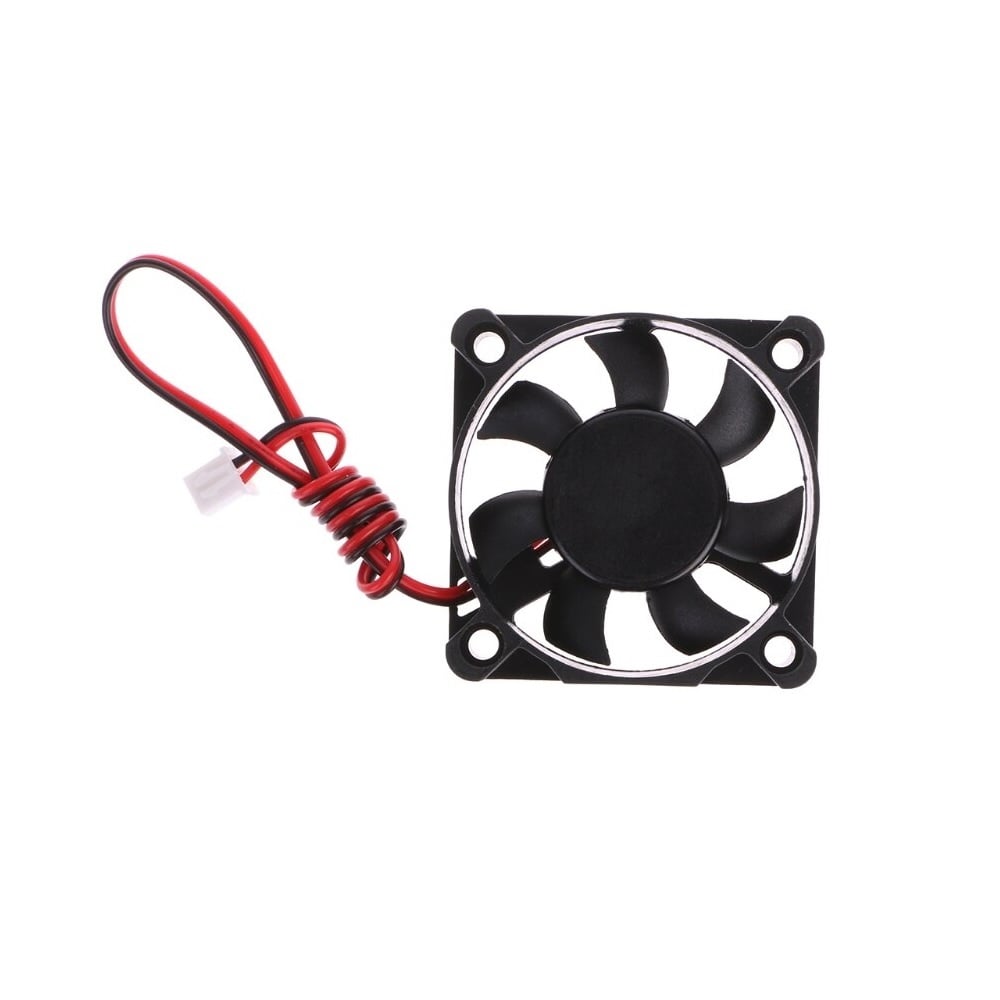

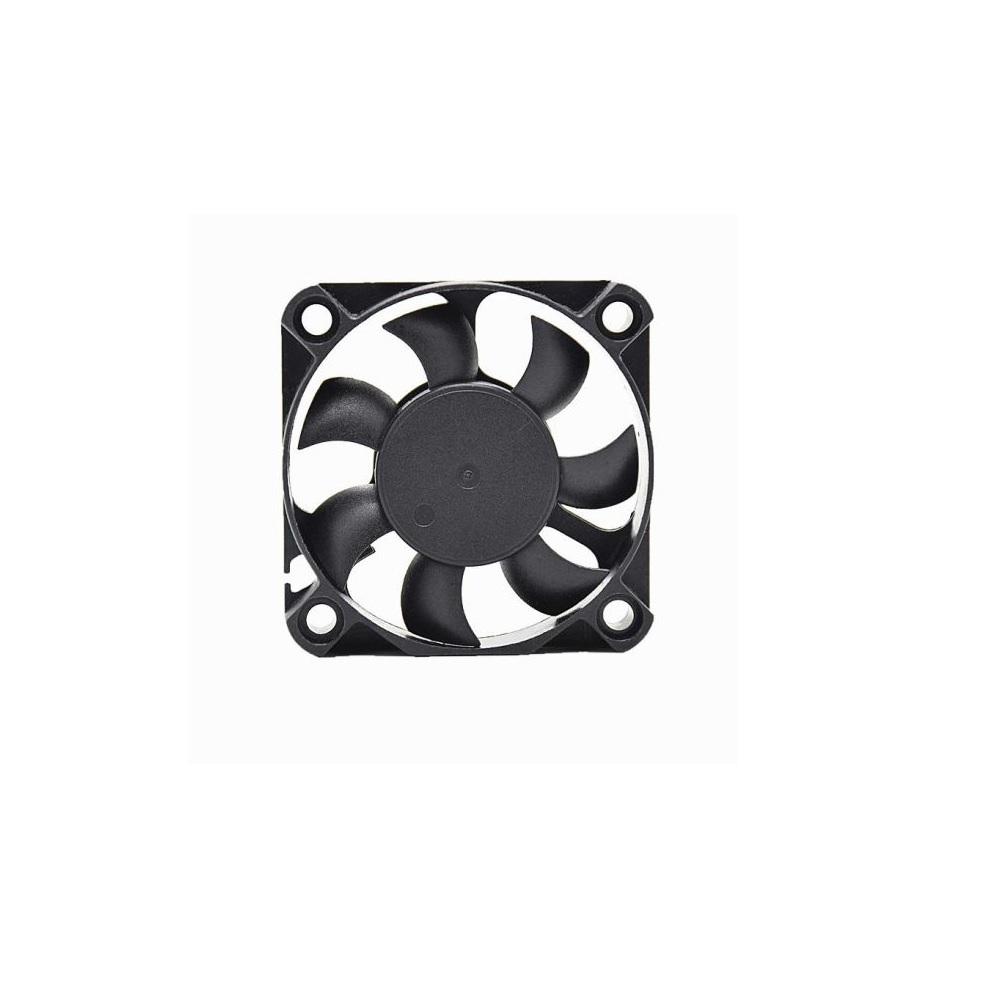

The 12V 5010 Double Ball Cooling Fan for is Small but powerful exhaust cooling is designed for the noiseless operations. It has two pin connector to connect in a printer controller. Fan operates at 12V supply and operates automatically by the Printer controller system. It is used to mount on extruder to maintain the temperature of an extruder for seamless printing.

Note: The image shown may differ from the actual product in terms of the brand name.

Features:

1. Perfectly fit on the extruder
2. Noiseless Performance
3. Very low Current consumption
4.  Easy to install and connect.
5. Long Connecting Wire

Specifications:

1. Operating Voltage: 12V DC
2. Operating Current: 0.15 Amp±10%
3. Rated speed: 7000rpm±10%
4. Air flow: 2.2CFM±10%
5. Cable Length: 30 cm
6. Noise: 23dBA±10%
7. Connector: PH2.0-2P
8. Dimensions in mm (LxWxH): 50 x 10 x 50
9. Net weight: 15g (Approx)
10. Service life: 3,5000 hours
11. Color: Black

Package Includes:

1 x 12V 5010 Cooling Fan
