Product details

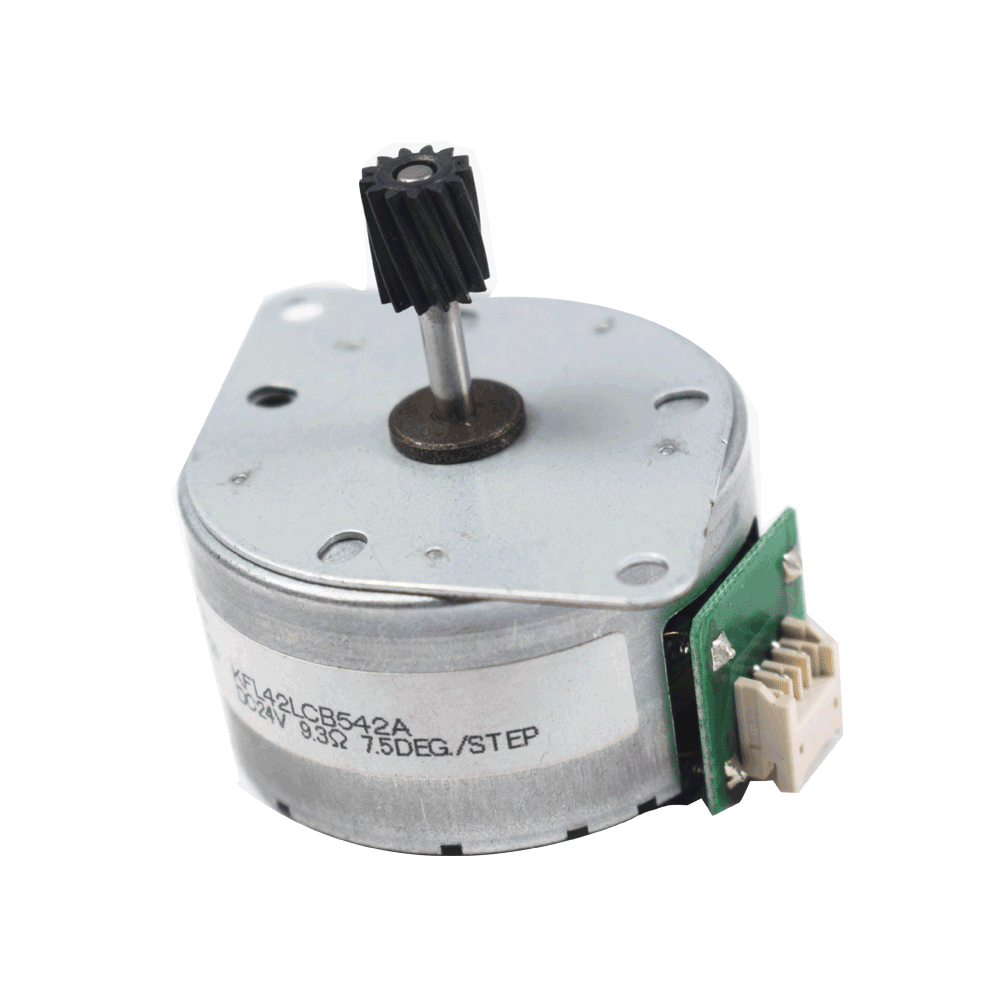

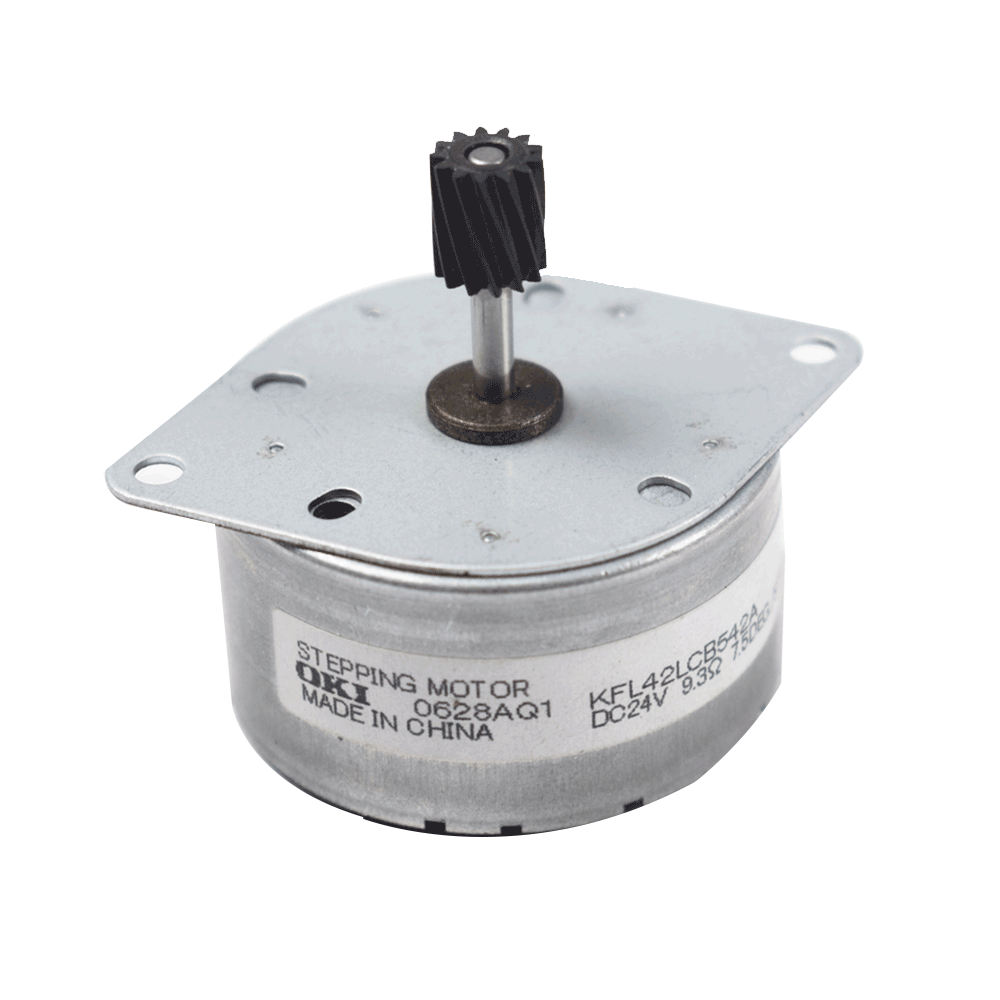

This is a 24 Volt DC Stepping Motor 7.5 Deg/Step. Stepper motors are used in motion systems high precision positioning is required. Stepper motors can deliver direct and precise motions in a small volume due to their high power even at low speeds, stall torque, and ability to divide steps into micro-steps. The absence of mechanical commutation gives these motors a longer life which is usually given by the sleeves according to the load applied on the shaft.
Applications
-
Office Machines
-
Automated Machines
Specifications
| Brand | OKI |
| Product Type | Stepping Motor |
| Resistance per Phase | 9.3 Ohm |
| Step Angle | 7.5 Deg/Step |
| No. of Lead | 4 |
| Operating Voltage | 24V DC |
| Shaft Length | 20mm |
| Shaft Diameter | 3mm |
| No of Step | 48 Step |
| Motor Diameter | 42mm |
| Country of Origin | China |
