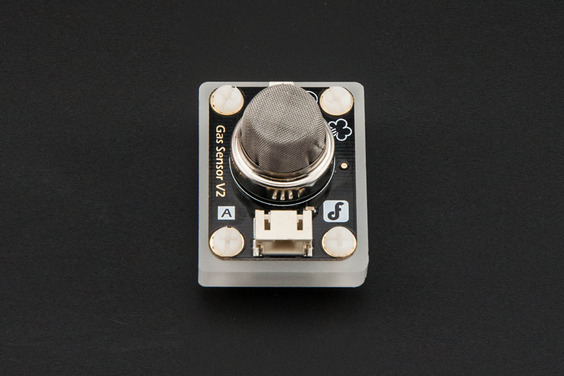

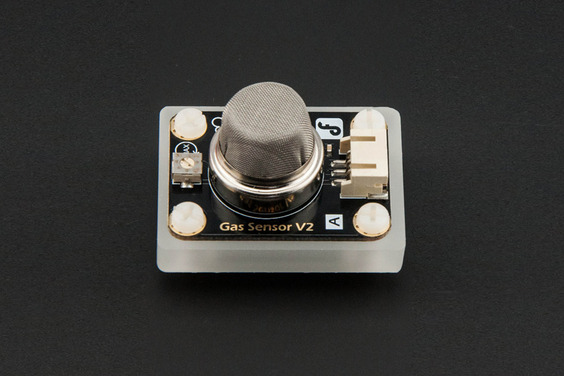

DFRobot Gravity Analog CH4 Gas Sensor (MQ4) For Arduino

19 People watching this product now!

SKU: rz24310663 Category: Gas and Dust Sensor

Description

The MQ4 is used in gas leakage detecting equipment in consumer and industry markets,this sensor is suitable for detecting CH4,Natural gas, LNG, avoid exposure to alcohol, cooking fumes, and cigarette smoke. The sensitivity can be adjusted by the potentiometer

Features:

High sensitivity to CH4，Natural gas.
Small sensitivity to alcohol, smoke.
Fast response
Stable and long life
Simple drive circuit

Specifications:

Power supply needs: 5V
Interface type: Analog
Pin Definition: 1-Output 2-VCC 3-GND
High sensitivity to CH4£¬Natural gas
Small sensitivity to alcohol, smoke
Fast response
Stable and long life
Simple drive circuit
Size: 40x20mm

Packages Includes:

1 x DFRobot Gravity Analog CH4 Gas Sensor (MQ4) For Arduino
