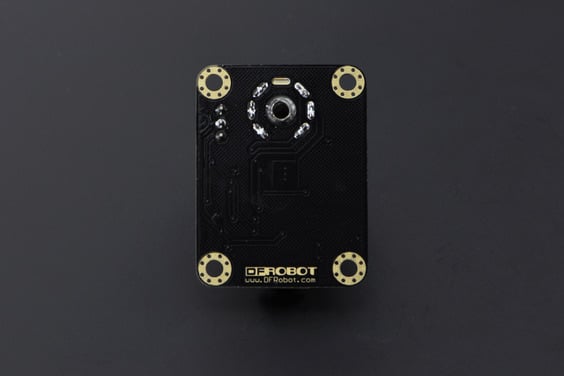

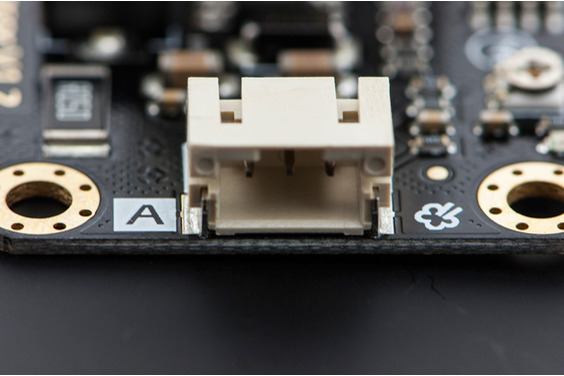

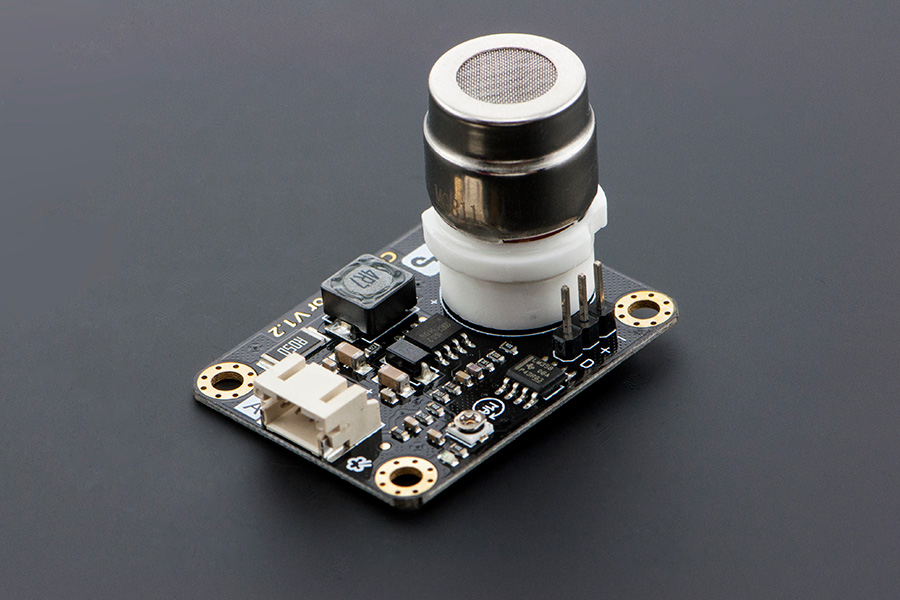

DFRobot Gravity Analog CO2 Gas Sensor For Arduino (MG-811 Sensor)

17 People watching this product now!

SKU: rz24310126 Category: Gas and Dust Sensor

Description

The greenhouse Effect” is melting the Earth’s ice core every minute and creating dangerous icebergs. By knowing the exact concentration of CO2(Carbon Dioxide), we can do something to reduce the CO2 and to protect our Earth. Here is the Arduino-based CO2 sensor designed by DFRobot’s lovely engineer. This is the first CO2 sensor in the Arduino market. The output voltage of the module falls as the concentration of CO2 increases. The potentiometer onboard is designed to set the threshold of voltage. As long as the CO2 concentration is high enough (the voltage is lower than the threshold), a digital signal (ON/OFF) will be released.

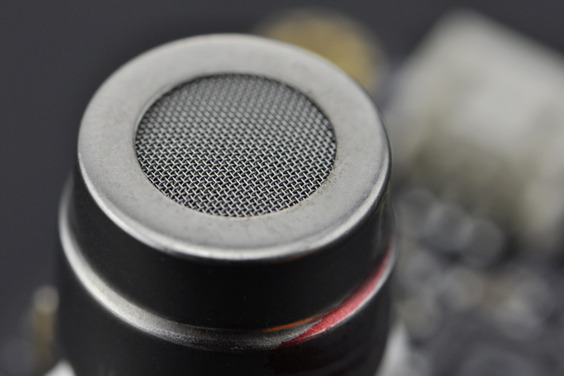

It has an MG-811 sensor module which is highly sensitive to CO2 and less sensitive to alcohol and CO, low humidity & temperature dependency. The onboard heating circuit brings the best temperature for the sensor to function. Internal power boosting to 6V for heating sensor best performance. This sensor has an onboard conditioning circuit for amplifying the output signal.

Features:

Good sensitivity and selectivity to CO2
Low humidity and temperature dependency
Long stability and reproducibility

Specifications:

Heating Voltage: 6.0±0.1 V
Heating Resistor: 30.0±5%Ω
Heating Current: at 200mA
Heating Power: 1200mW
Operating Temperature: 20-50

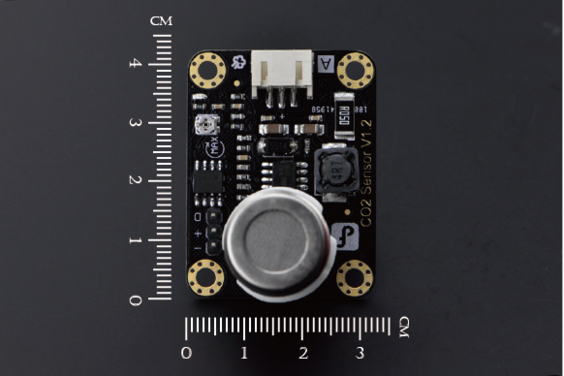

Size:32x42mm (1.26×1.65″)

Package Includes:

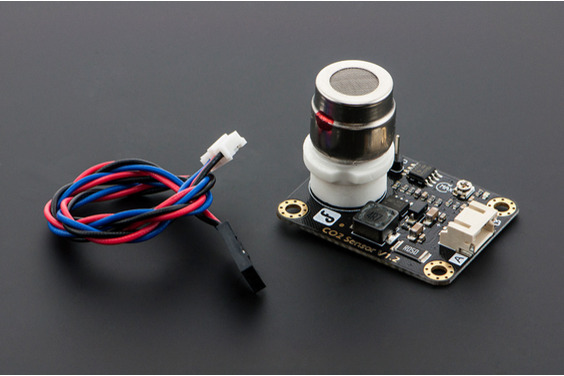

1 x DFRobot Gravity Analog CO2 Gas Sensor For Arduino (MG-811 Sensor)
