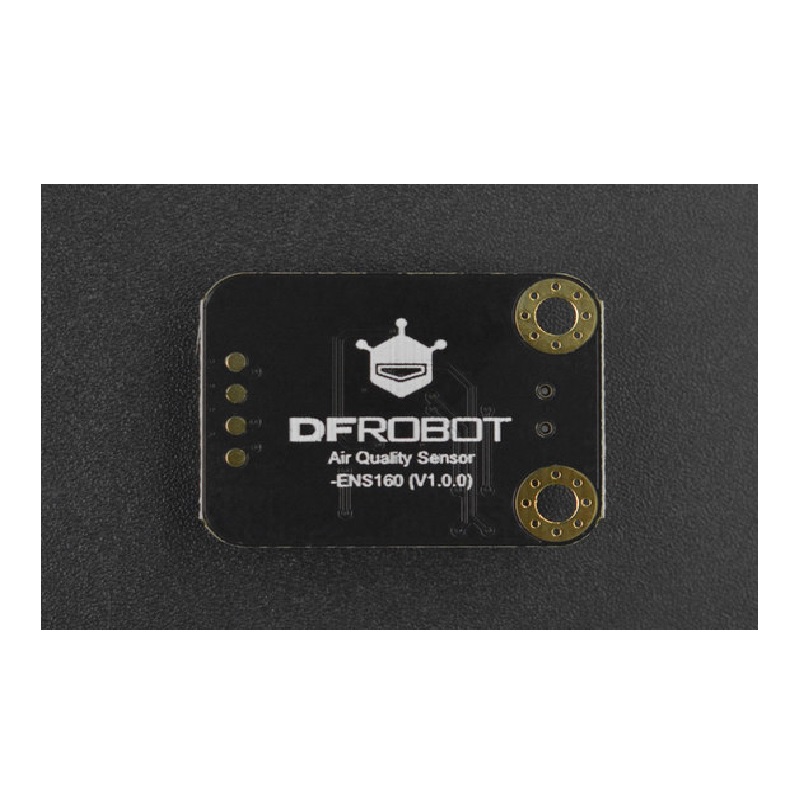

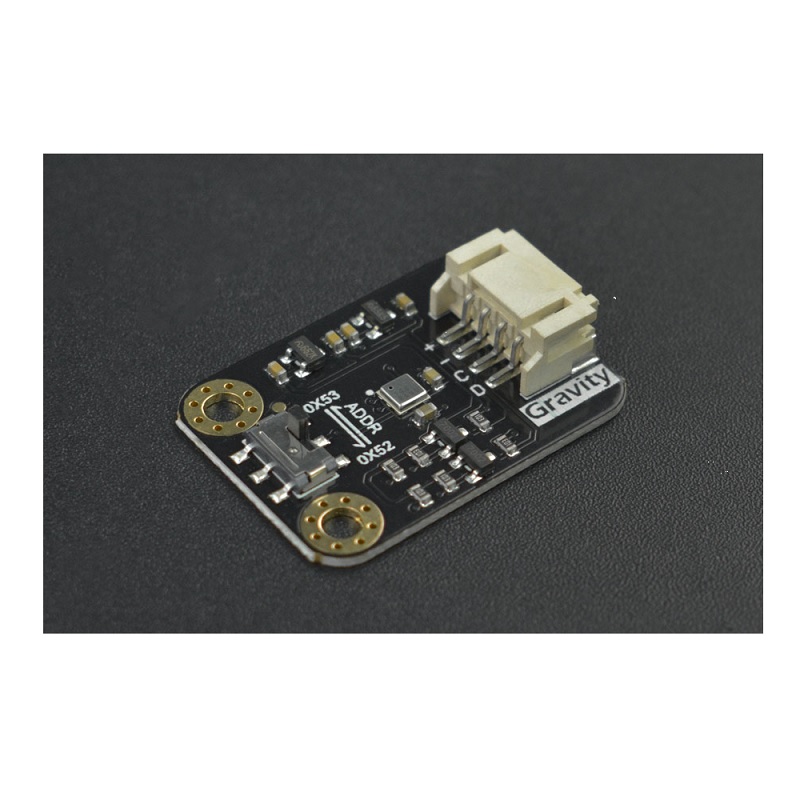

DFRobot Gravity ENS160 Air Quality Sensor

13 People watching this product now!

SKU: rz24315545 Category: Gas and Dust Sensor

Description

This Gravity: ENS160 Air Quality Sensor, based on Scio Sense’s new ENS160 sensor chip, is specifically designed for indoor air quality monitoring and offers detection of multiple IAQ data (TVOC, eCO2, AQI). The innovative True VOC™ technology combines the metal oxide (MOX) technology that brings this sensor superior accuracy, fast response, anti-interference, etc. With intelligent on-chip algorithms, the ENS160 can directly output rich and easy-to-understand environmental data. Preheat the sensor 3 minutes before use then you can obtain accurate data more quickly. What’s more, the built-in automatic baseline correction algorithm ensures the long-term stability of the sensor.

Applications:

Air purification/home automation device.
Environmental pollution detection.
HVAC/Ventilation system.
Building automation/smart thermostat.
Electrical appliances/ range hoods.

Features:

Multiple IAQ outputs (TVOC, eCO2, AQI), various environmental data.
Less than 3 minutes warm-up time, get data faster.
Built-in algorithm, more accurate output.
Automatic baseline correction, more stable for long-term use.

Packages Includes:

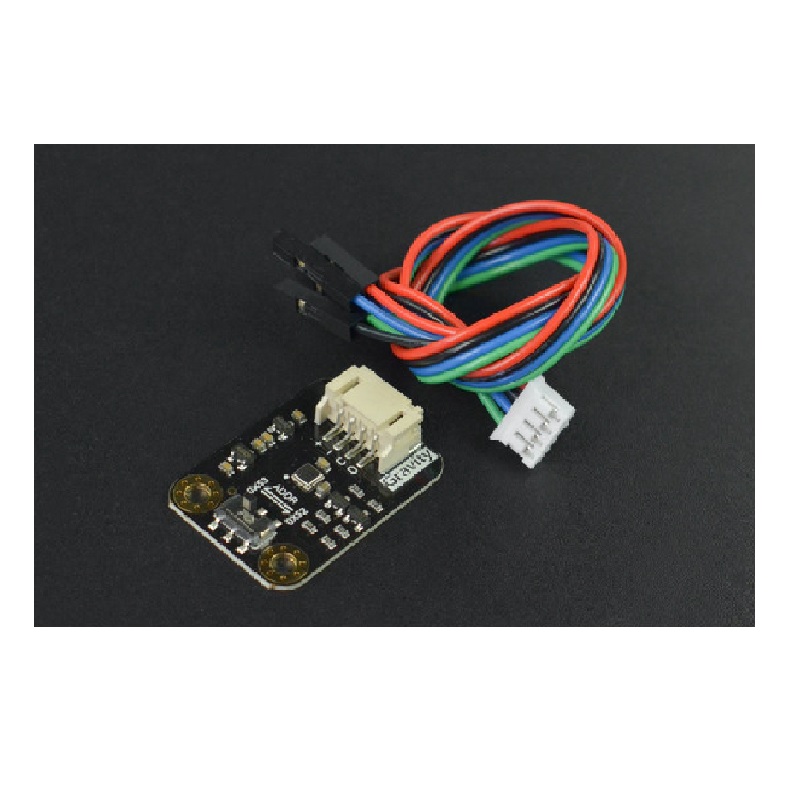

1 x DF Robot Gravity ENS160 Air Quality Sensor.

Additional information

Power Supply Voltage	3.3 V~5.5 V
Working Current	29 mA
Interface Mode	I2C
I2C Address	0x52 , 0x53
Operating Temperature Range	-40℃~85℃
Working Humidity Range	5 %RH~95 %RH
eCO2 Measurement Range	400 ppm~65000ppm
TVOC Measuring Range	0ppb~65000ppb

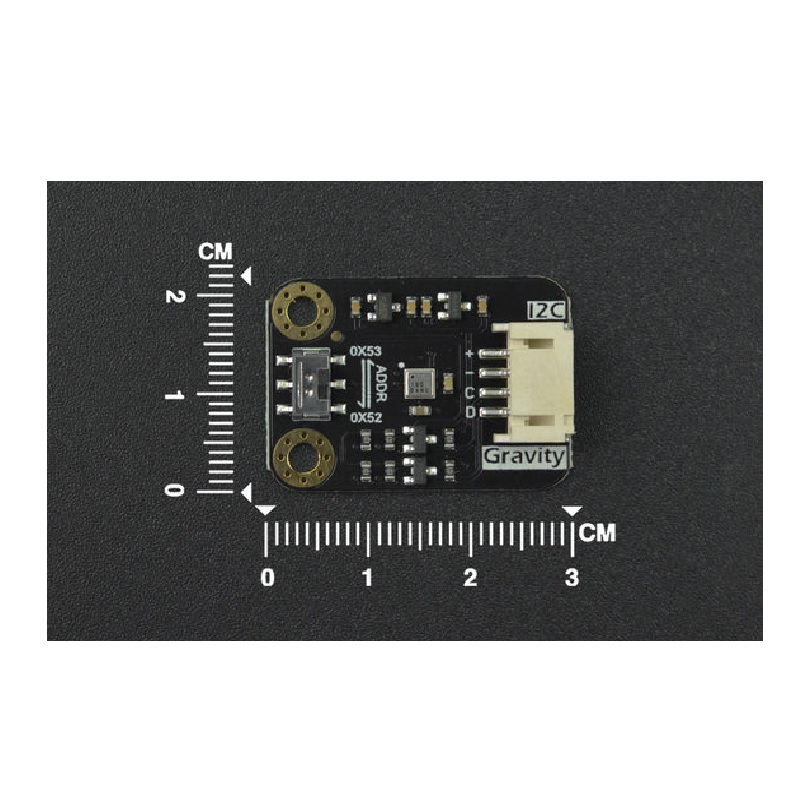

Product Size	30×22 mm/1.18×0.87 inch
