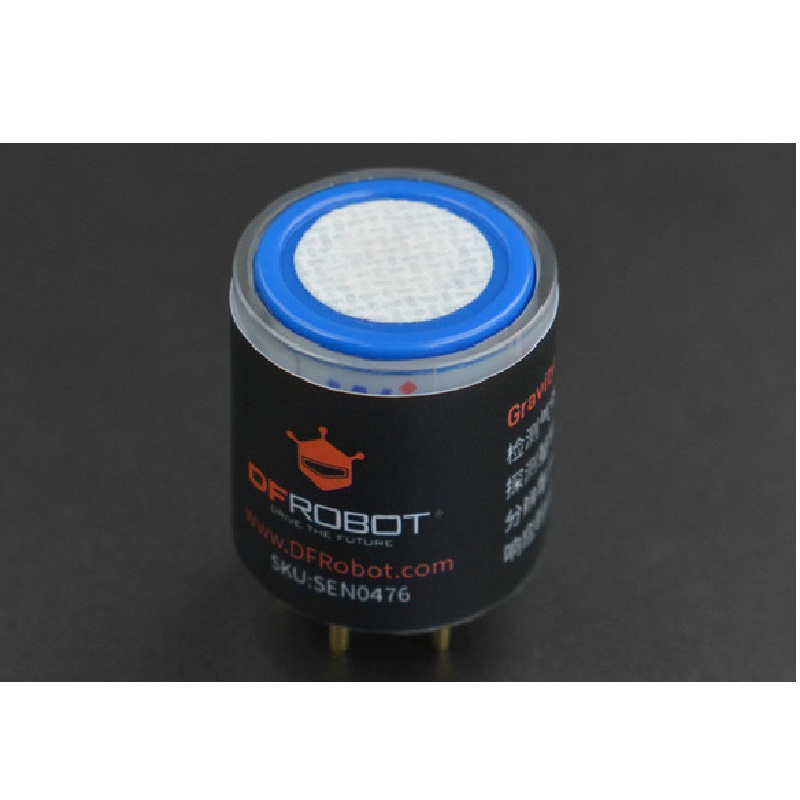

DFRobot Gravity HCL Sensor (Calibrated) &#8211; I2C &amp; UART

13 People watching this product now!

SKU: rz24315468 Category: Gas and Dust Sensor

Description

This is a HCL ( hydrogen chloride )Sensor (Calibrated) – I2C & UART sensor that detects oxygen concentration and supports three output modes: analog, I2C, and UART. The probe has been calibrated at the factory, which can quickly and accurately measure the concentration of oxygen in the environment. Can be widely applied to fields like portable devices, air quality monitoring devices, industries, mines, warehouses, and other spaces where the air is not easy to circulate.

The probe adopts the electrochemical principle, has the characteristics of strong anti-interference ability, high stability, high sensitivity, etc., and the service life is as long as two years. The sensor has 32 modifiable I2C addresses, an integrated temperature compensation algorithm, and a threshold alarm function, It has good compatibility with mainstream main control devices such as Arduino, ESP32, and Raspberry Pi. The easy-to-use Gravity interface, coupled with our sample code, can quickly build an oxygen concentration detector.

If you by this product you will get ( 1 PCB, 1 Connection wire, 1 HCL Sensor (Calibrated) – I2C & UART ) All products are brand new & Comes with 6 Months Warranty. The products is easy to handle & easy to use also easy to operate with your projects,

Features:

Factory calibrated, accurate measurement
High sensitivity, low power consumption
New condition .
Excellent stability and anti-interference
Three output modes: I2C, UART and analog
Long service life(2 years)
Compatible with 3.3~5.5V main controllers
32 modifiable I2C addresses
Reverse connection protection
Temperature compensation
Threshold alarm

Specifications:

Detection Gas: CO, O2, NH3, H2S, NO2, HCL, H2, PH3, SO2, O3, CL2, HF(Need to change different probe)
Working Voltage: 3.3～5.5V DC
Working Current: <5mA
Output Signal: I2C, UART output (0~3V), analog voltage (see the characteristic parameters of specific probe)
Working Temperature: -20～50℃
Working Humidity: 15～90%RH (non-condensing)
Storage Temperature: -20～50℃
Storage Humidity: 15～90%RH (non-condensing)
Lifespan: >2 years (in the air)

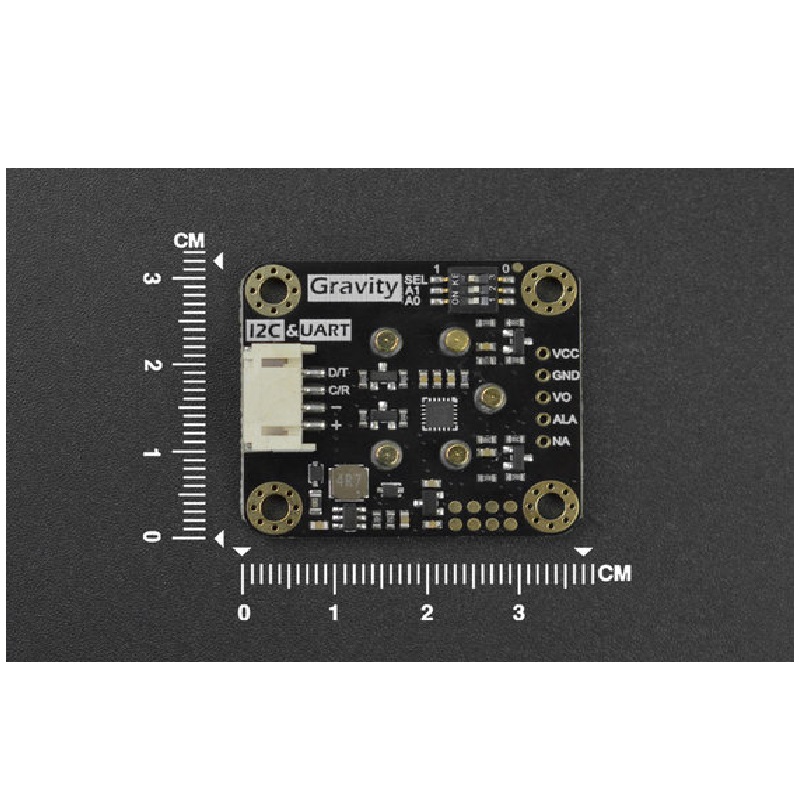

Adapter Plate Size: 37×32mm

HCL Sensor (Calibrated) – I2C & UART

GAs detections: HCL
Detections range: 1-10ppm
Resolution: 1.1ppm
Response time: ≤60S

Packages Includes:

1 x DFRobot Gravity HCL Sensor (Calibrated) – I2C & UART
