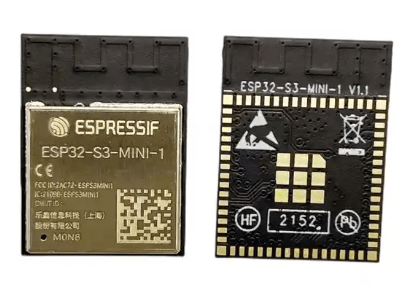

ESP32-S3-MINI-1-N8 Dual Core Wi-Fi and BLE 5.0 module

It’s an Espressif ESP32-S3-MINI-1 8MB ESP32-S3-MINI-1-N8 equipped with ESP32-S3FN8 chip dual core Wi-Fi and BLE 5.0 module. The Espressif ESP32-S3-MINI-1-N8 is a development board equipped with the ESP32-S3FN8 chip‚ which is a member of the ESP32-S3 series of microcontrollers produced by Espressif Systems. The ESP32-S3-MINI-1-N8 board is designed to provide a compact and feature-rich platform for developing applications that require Wi-Fi and Bluetooth Low Energy (BLE) connectivity. The board is based on the ESP32-S3FN8 chip‚ which is a powerful microcontroller featuring a dual-core processor running at up to 240 MHz. It combines a CPU with a Wi-Fi 2.4 GHz IEEE 802.11b/g/n module and a Bluetooth 5.0 module.

Features

• The ESP32-S3-MINI-1-N8 supports Wi-Fi connectivity with IEEE 802.11b/g/n standards. It allows you to connect to wireless networks‚ access the internet‚ and communicate with other devices over Wi-Fi
• The board is equipped with a BLE 5.0 module‚ enabling low-power wireless communication with other BLE-enabled devices. This is particularly useful for applications that require energy efficiency and short-range communication
• The ESP32-S3FN8 chip features two cores‚ which can be independently programmed and controlled. This allows for multitasking and improved performance in applications that require parallel processing

CPU and On-Chip Memory

• ESP32-S3 embedded, Xtensa® dual-core 32-bit LX7 microprocessor, up to 240 MHz
• 384 KB ROM
• 512 KB SRAM
• 16 KB SRAM in RTC
• Up to 8 MB Quad SPI flash
• 2 MB PSRAM (ESP32-S3FH4R2 only)

Wi-Fi

• 802.11 b/g/n
• Bit rate: 802.11n up to 150 Mbps
• A-MPDU and A-MSDU aggregation
• 0.4 µs guard interval support
• Center frequency range of operating channel: 2412 ~ 2484 MHz

Bluetooth

• Bluetooth LE: Bluetooth 5, Bluetooth mesh
