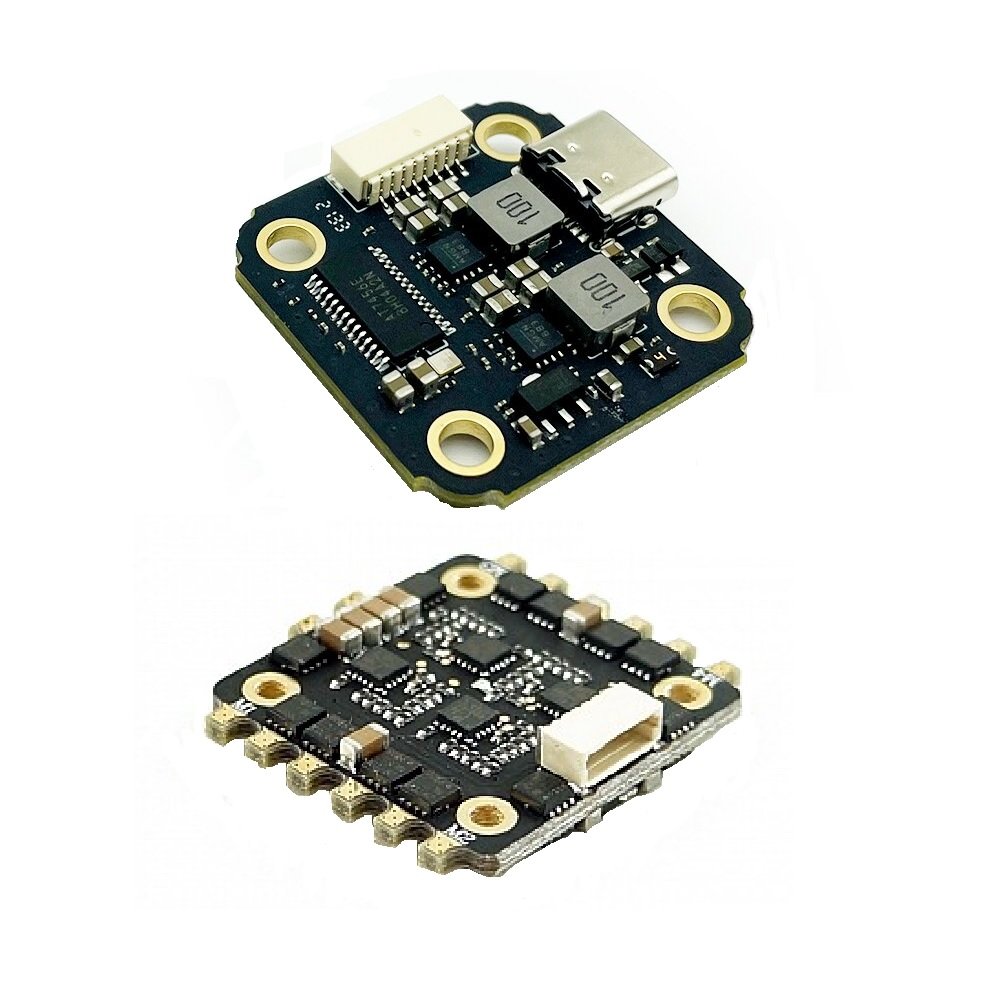

F7 MINI V1.0 Flight Controller +35A 2-5S BLHELI_S 4 in 1 ESC Flytower

This product is a combo kit of 1 Flight  controller & 1 ESC which are highly efficient to work in drones, we brought this combo of flight controller & ESC  in chipper price than market price, This  high performance Flight controller is able to handle your Drone &  model plane controller with 95% accuracy.

ESC (Electronic Speed Controller) comes in the kit is compatible with flight controller they work together very efficiently.

The flight controller uses the data gathered by the sensors to calculate the desired speed for each of the four motors. The flight controller sends this desired speed to the Electronic Speed Controllers (ESC’s), which translates this desired speed into a signal that the motors can understand.

The MPU6500 is the most widely used IMU sensor, and it’s used in nearly all of the greatest flight controllers. The reason for this is that it has a high vibration tolerance and can sample the gyro at 8kHz over an SPI interface.

Note: Product can vary from images in terms of Color and Design

Features:

1. This is combo kit of Flight controller & ESC
2. High performance & efficient flight controller & ESC
3. Light weight, Easy to connect
4. Compact in size
5. Flight controller comes with ARM processor
6. ESC is build to give best performance

Specifications:

Flight Controller:

1. Model: F7 MINI V1.0
2. Main control chip: ARM STM32F405RGT6
3. Input voltage: 3-6S Lipo
4. SPI Gyro: MPU6500
5. Barometer: BMP280
6. Power Port: 1 C-Type
7. Firmware: AOCODAF722MINI
8. Weight: 6g
9. Dimensions: 3 x 3 x 1 mm

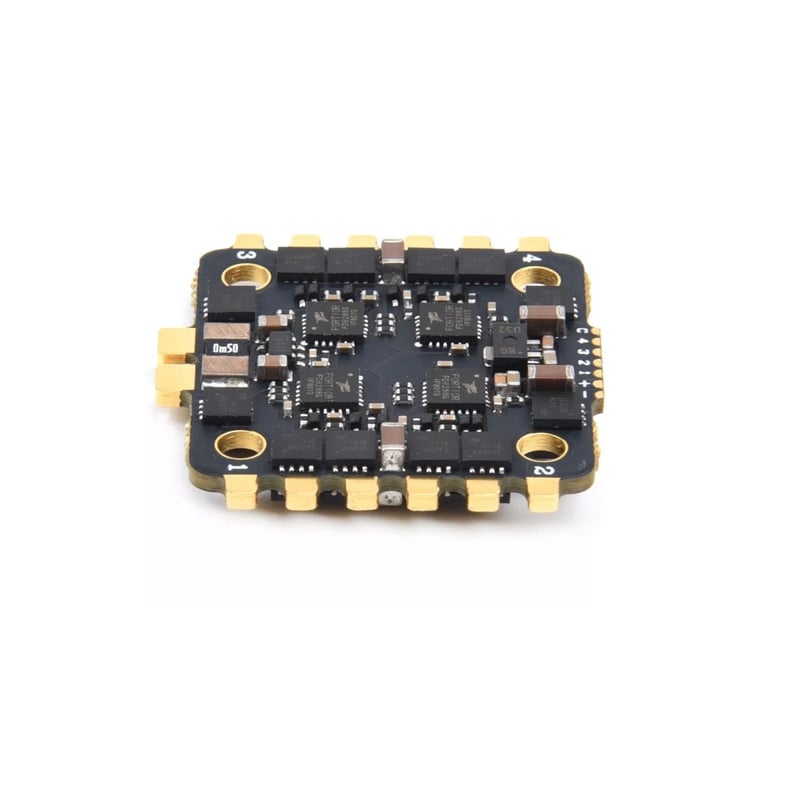

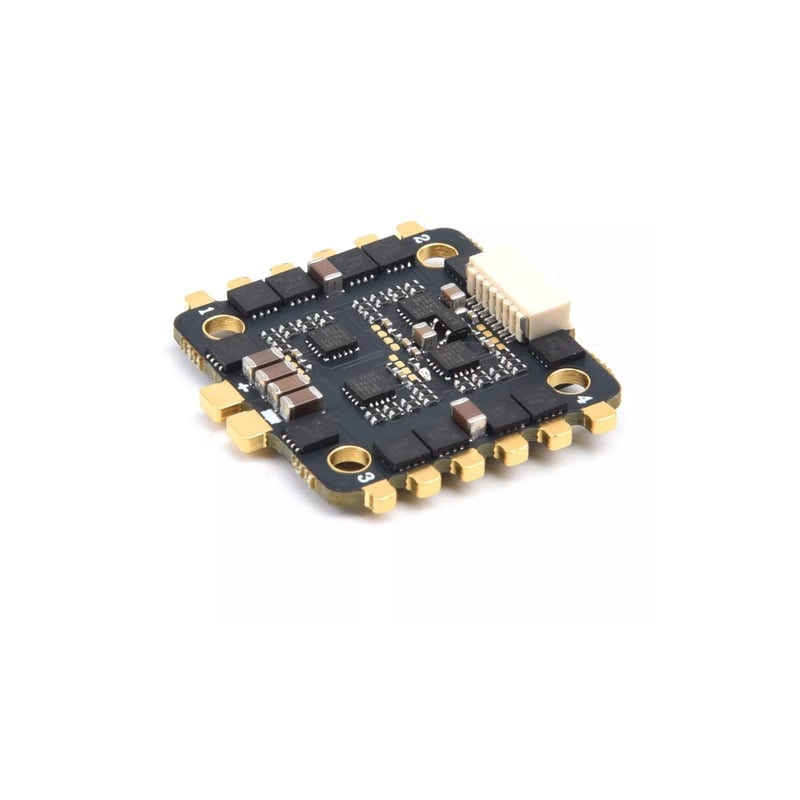

ESC (Electronic Speed Controller):

1. Product: ESC
2. Current: 35A
3. Lipo: 2-5S

4. Programming: YES
5. Weight: 11g
6. Dimension: 3 x 3 x 0.6 mm

Packages Includes:

1 x F7 MINI V1.0 Flight Controller

1 x 35A 2-5S BLHELI_S 4 in 1 ESC Flytower

1 x Screw Pack
