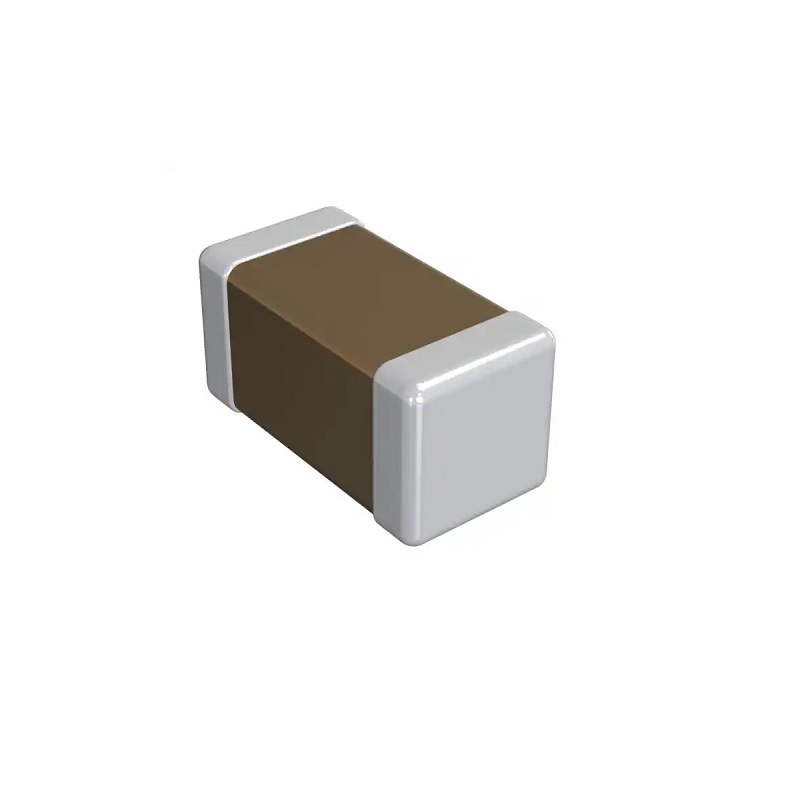

This is a GCM188R72A103KA37D SMD Multilayer Ceramic Capacitor. The Capacitor is used to mount in any circuit. For this tiny size, the Capacitor looks unique and it fits in any small area. These capacitors feature excellent pulse responsibility and noise reduction due to low impedance at high frequency. Ceramic Capacitors are automotive grade and ideal for automotive electronic equipment, including powertrain and safety equipment.

Features:

1. Available in paper or embossed tape-and-reel packaging for automatic placement.
2. Sn plating is applied to the external electrodes.
3. Higher resistance of solder-leaching due to the Ni-barrier termination.
4. Applicable for reflow-soldering and flow-soldering.

Package Includes:

1 x GCM188R72A103KA37D SMD Multilayer Ceramic Capacitor, 10000 pF, 100 V, 0603 [1608 Metric], ± 10%, X7R, GCM Series

0.33uF 0603 Surface  SMD Capacitor, it is high quality with high-temperature tolerance caps, a rectangular block of ceramic dielectric in which a number of interleaved metal electrodes are contained.

Features:

1. Supplied in tape on reel
2. Nickel-barrier end termination
3. RoHS compliant
4. Halogen Free compliant

Package Includes:

1 x 0.33uF Capacitor SMD: C 0603

This 0.1 uF SMD C 0603 Capacitor uses surface mount technology and comes in 0603 packages

Features:

1. Supplied in tape on reel
2. Nickel-barrier end termination
3. RoHS compliant
4. Halogen Free compliant

Package Includes:

1 x 0.1uF Capacitor SMD:C 0603

This Surface Mount (SMD) Multilayer Ceramic Capacitor is a rectangular block of ceramic dielectric in which a number of interleaved metal electrodes are contained. It is very low cost, and used mostly for reducing the noise or filtering on data lines, power lines etc.

Applications:

1. Consumer electronics, for example
   Tuners, Television receivers, All types of cameras
2. Telecommunications
3. Data processing

Note: Images are for reference only. The actual?product may vary in terms of the markings on the capacitor. The dimensions may vary ?10% due to manual measurements.

Features:

1. Supplied in tape on reel
2. Nickel-barrier end termination
3. RoHS compliant
4. Halogen Free compliant

Package Includes:

1 x 82pf (0.082nF) 50V Capacitor – 0805 SMD Package (pack of 20)

This Surface Mount (SMD) Multilayer Ceramic Capacitor is a rectangular block of ceramic dielectric in which a number of interleaved metal electrodes are contained. It is very low cost, and used mostly for reducing the noise or filtering on data lines, power lines etc.

Applications:

1. Consumer electronics, for example
   Tuners, Television receivers, All types of cameras
2. Telecommunications
3. Data processing

Note: Images are for reference only. The actual?product may vary in terms of the markings on the capacitor. The dimensions may vary ?10% due to manual measurements.

Features:

1. Supplied in tape on reel
2. Nickel-barrier end termination
3. RoHS compliant
4. Halogen Free compliant

Package Includes:

1 x 3.3nF 50V Capacitor – 1206 SMD Package -(pack of 10)

By design, both capacitors are electrolytic capacitors that use an oxide-layer dielectric, but only the second model can be considered an SMD capacitor. Given their higher capacitance values and voltage compatibilities, electrolytic capacitors are generally considered through-hole capacitors.

Applications:

1. SMD technology, for high temperature re-flow soldering
2. Industrial and professional applications
3. Automotive, general industrial, telecom
4. Smoothing, filtering, buffering

Features:

1. Lightweight
2. Polarized aluminum electrolytic capacitors
3. Non-solid electrolyte
4. self healing

Specifications:

1. Extended useful life: up to 6000 h at 125 °C
2. Product: High Temp Electrolytic Capacitors
3. Capacitance: 100uF
4. Voltage Rating DC: 50V
5. Tolerance: 20 %
6. Operating temperature: – 55°C to+ 125°C

Packages Includes:

1 x Aluminum Electrolytic SMD Capacitor- (pack of 5)
