433MHz RF Receiver Module Kl-Cw11

SKU: 1048042
In Stock

104.00

  1. Frequency: 433MHz
  2. Working Voltage: DC3/5V, optional
  3. Working Current: 4mA
  4. Modulation: ASK/OOK
  5. Sensitivity: -106dBm.
In Stock
Add to Wishlist
Add to Wishlist

Did you like this product? Add to favorites now and follow the product.

Add to Wishlist
Add to Wishlist

Description

KL-CW11 adopts a superheterodyne circuit. It has high sensitivity, high reliability, and competitive price.  It’s widely used in remote garage door openers, auto gates as retract type, brakes, factory automatic, communication and security system, etc.

433 MHz RF receiver module is the most common and cheapest RF receiver for commercial use. This module helps to receiver the 433MHz frequency commonly but it also has a node on it that is changeable by users for different frequencies. The variable node can adjust the frequency from 315MHz to 433MHz.

The module can receive the data but it is unable to decode and view the data from the receiver without using any third device. Most of the time smart boards and microcontrollers interface with the receiver. The output of the module comes in an encoded form that is decodable through programming and encoders. On the other hand, it works well with the 433 MHz RF transmitter module.

Applications:
  1. Home automation
  2. Transmit Serial data for a short distance
  3. Car security system
  4. Wireless logging
  5. Short distance communication

Features:

  1. The Transmitter offers one-way communication through 433.92MHz frequency at a 1Kb data rate
  2. It operates at 3-12V which is the power operating volts of most of the microcontrollers and boards.
  3. The module uses the ASK modulation method to transmits the data.
  4. It is one of the low-cost power effective modules for both commercial and developers.
  5. 433MHz Transmitter is one of the oldest RF transmitters and it has a lot of applications and examples on the internet which helps to achieve interfacing with almost every application.

Package Includes:

1 x 433MHz RF Receiver Module Kl-Cw11

Additional information

Maximum Clock Frequency (MHz)

433

Working Voltage

DC3/5V

Working Current

4mA

Modulation Type

ASK/OOK

Sensitivity (dBm)

-106

Working Temperature Range (°C)

-10 ~ 60

Length (mm)

30

Width (mm)

14

Height (mm)

12

Weight (gm)

12

Quick Comparison

Settings433MHz RF Receiver Module Kl-Cw11 removeReceiver chipset CMT2210LH-ESR. removeRFM95W Wireless Receiving Module,915mhz removeRF module RFM119W-915S1 removeRFM96W 433mhz Wireless Receiving Module(Only 433mhz) removeNRF24L01 Wireless Data Transmission module (Green) 10pin remove
Name433MHz RF Receiver Module Kl-Cw11 removeReceiver chipset CMT2210LH-ESR. removeRFM95W Wireless Receiving Module,915mhz removeRF module RFM119W-915S1 removeRFM96W 433mhz Wireless Receiving Module(Only 433mhz) removeNRF24L01 Wireless Data Transmission module (Green) 10pin remove
SKU10480421195295103110611952991031107975816
Rating
Price104.0015.00 633.0095.00 633.00151.00
Stock
In Stock
Out of stock
Out of stock
Out of stock
Out of stock
In Stock
AvailabilityIn StockOut of stockOut of stockOut of stockOut of stockIn Stock
Add to cart

Add to cart

Read more

Read more

Read more

Read more

Add to cart

Description
  1. Frequency: 433MHz
  2. Working Voltage: DC3/5V, optional
  3. Working Current: 4mA
  4. Modulation: ASK/OOK
  5. Sensitivity: -106dBm.
  1. Crystal frequency: ±20 ppm.
  2. Sensitivity: -109 dBm (3.0 kbps), 0.1%BER.
  3. Receiver bandwidth: 330 kHz.
  4. Image rejection ratio: 30 dBm.
  1.  Input Voltage:3 V
  2. Bit Rate:300 kbps
  3. Sensitivity :Down to -144 dBm
  4. Dimension:16x16x2 mm
  5. Weight:3 gm
  1. Power Supply: 1.8V to 3.6V.
  2. Frequency: 240 to 960 MHz.
  3. Very Easy Development with RFPDK.
  4. All Features Programmable.
  5. Two-wire Interface for Registers Accessing and EEPROM Programming.
  1. Input Voltage:3 V
  2. Bit Rate:300 kbps
  3. Sensitivity :Down to -144 dBm
  4. Dimension:15x15x2 mm
  5. Weight:3 gm
  1. 125 Channels, Multi-point communication, and frequency hopping to meet the communication needs
  2. Built-in hardware CRC error detection, Multipoint communication address control.
  3. Low-power 1.9 ~ 3.6V, only 1uA on Power-down mode
  4. Built-in 2.4Ghz antenna
  5. Built-in voltage regulator
  6. Standard DIP Pitch Interface for embedded applications
  7. size: 34mm X 17mm X 1mm
Content
KL-CW11 adopts a superheterodyne circuit. It has high sensitivity, high reliability, and competitive price.  It’s widely used in remote garage door openers, auto gates as retract type, brakes, factory automatic, communication and security system, etc.

433 MHz RF receiver module is the most common and cheapest RF receiver for commercial use. This module helps to receiver the 433MHz frequency commonly but it also has a node on it that is changeable by users for different frequencies. The variable node can adjust the frequency from 315MHz to 433MHz.

The module can receive the data but it is unable to decode and view the data from the receiver without using any third device. Most of the time smart boards and microcontrollers interface with the receiver. The output of the module comes in an encoded form that is decodable through programming and encoders. On the other hand, it works well with the 433 MHz RF transmitter module.

Applications:
  1. Home automation
  2. Transmit Serial data for a short distance
  3. Car security system
  4. Wireless logging
  5. Short distance communication

Features:

  1. The Transmitter offers one-way communication through 433.92MHz frequency at a 1Kb data rate
  2. It operates at 3-12V which is the power operating volts of most of the microcontrollers and boards.
  3. The module uses the ASK modulation method to transmits the data.
  4. It is one of the low-cost power effective modules for both commercial and developers.
  5. 433MHz Transmitter is one of the oldest RF transmitters and it has a lot of applications and examples on the internet which helps to achieve interfacing with almost every application.

Package Includes:

1 x 433MHz RF Receiver Module Kl-Cw11

CMT2210/17LH is a low power, high performance OOK RF receiver, suitable for wireless applications with 315 / 433.92 / 868 / 915 MHz and nearby frequency points in a ISM band. The CMT2210/17LH is a real plug and play chip. The CMT2210LH operates in a band of 300 – 480 MHz. While the CMT2217LH operates in a band of 300 – 480 MHz by default and can be configured through a CMOSTEK tool to operate in a band of 300 – 480 MHz.
The change of RF frequencies can be fulfilled by selecting crystals with different frequencies. The crystal frequencies corresponding to different RF frequencies can be read from the RFPDK interface. This chip is capable of a data rate range of 0.5 – 40 kbps and it is optimized to 1 – 5 kbps as factory setting, ideal for pairing with the low-cost transmitter based on the encoder or MCU. By selecting the VDD5V pin and VDDL pin open circuit or short circuit on the PCB, the CMT2210/17LH can operate in two voltage ranges , namely, 3.0 – 5.5 V and 2.0 – 3.6 V. When operating at 433.92MHz, the chip consumes only 4.5 mA current while achieving the receiver sensitivity of the -109 dBm. the CMT2210/17LH receiver, co-working with the
CMT211x/5x receiver, can deliver cost-effective RF application solutions.

Applications:

  1. Consumer electronics and appliances -lost-cost solution.
  2. Home security and building automation.
  3. Infrared receiver replacement.
  4. Industrial monitoring and control.
  5. Wireless metering reading.
  6. Wireless lighting control system.
  7. Wireless alarm and security system.
  8. Remote Keyless Entry (RKE).

Features:

  1. CMT2217LH.
  2. OOK demodulation.
  3. Maximum input signal: 10 dBm.
  4. Run independently. Input from the antenna and output from data pin.
  5. No need for register configuration.
  6. Low power consumption: 4.5 mA@ 433.92 MHz.
  7. RoHS compliant.

Specifications:

  1. Supply voltage options: 3.0 – 5.5 V (High voltage mode). 2.0 – 3.6 V (Low voltage mode).
  2. Operating frequency: 300 – 480 MHz for.
  3. CMT2210LH and 300 – 960 MHz for.
  4. Data rate: 0.5 – 40 kbps.
  5. Sensitivity: -109 dBm (3.0 kbps), 0.1%BER.
  6. Receiver bandwidth: 330 kHz.
  7. Image rejection ratio: 30 dBm.

Packages Includes:

1 x Receiver chipset CMT2210LH-ESR.

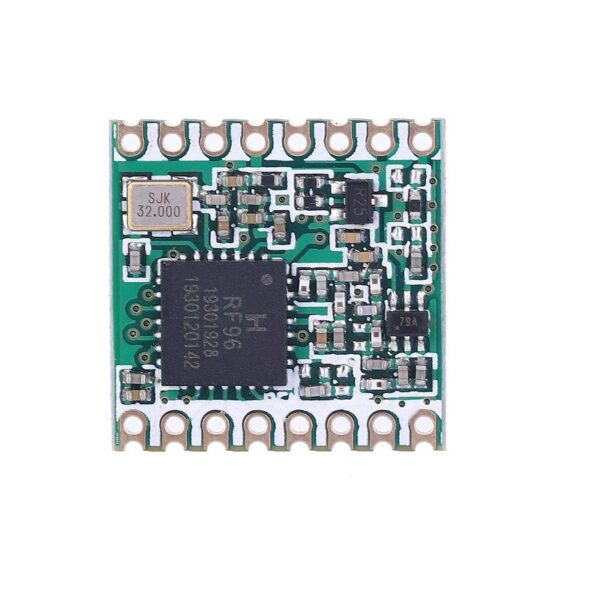

The  RFM95W transceivers feature the  LoRaTM long-range modem that provides ultra-long range spread spectrum communication and high interference immunity whilst minimizing current consumption. Using Hope RF’s patented LoRaTM modulation technique RFM95W can achieve a sensitivity of over -148dBm using a low-cost crystal and bill of materials.

The high sensitivity combined with the integrated +20 dBm power amplifier yields an industry-leading link budget making it optimal for any application requiring range or robustness. LoRaTM also provides significant advantages in both blocking and selectivity over conventional modulation techniques, solving the traditional design compromise between range, interference immunity, and energy consumption.


Features:

  1.  LoRaTM Modem.
  2.  168 dB maximum link budget.
  3.  +20 dBm – 100 mW constant RF output vs. V supply.
  4.  +14 dBm high-efficiency PA.
  5.  Programmable bit rate up to 300 kbps.
  6.  High sensitivity: down to -148 dBm.
  7.  Bullet-proof front end: IIP3 = -12.5 dBm.
  8.  Excellent blocking immunity.
  9.  Low RX current of 10.3 mA, 200 nA register retention.
  10.  Fully integrated synthesizer with a resolution of 61 Hz.
  11.  FSK, GFSK, MSK, GMSK, LoRaTM and OOK modulation.
  12.  Built-in bit synchronizer for clock recovery

Package Includes:

1 x RFM95W Wireless Receiving Module,915mhz

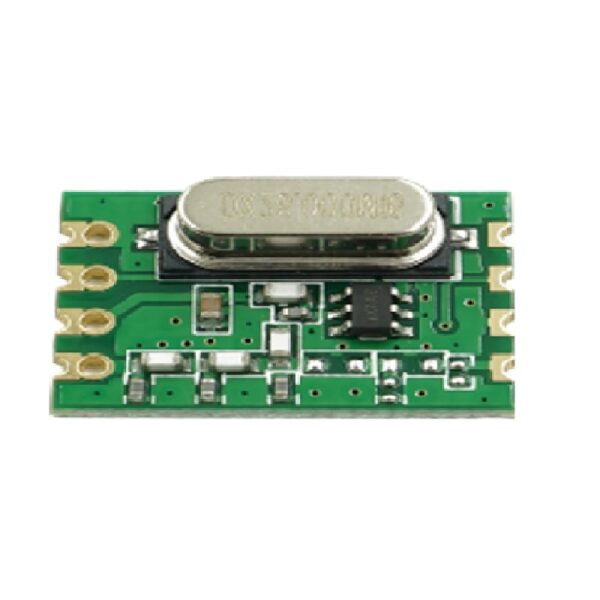

The RFM119W/RFM119SW is a high performance, highly flexible, low-cost, single-chip (G)FSK/OOK
