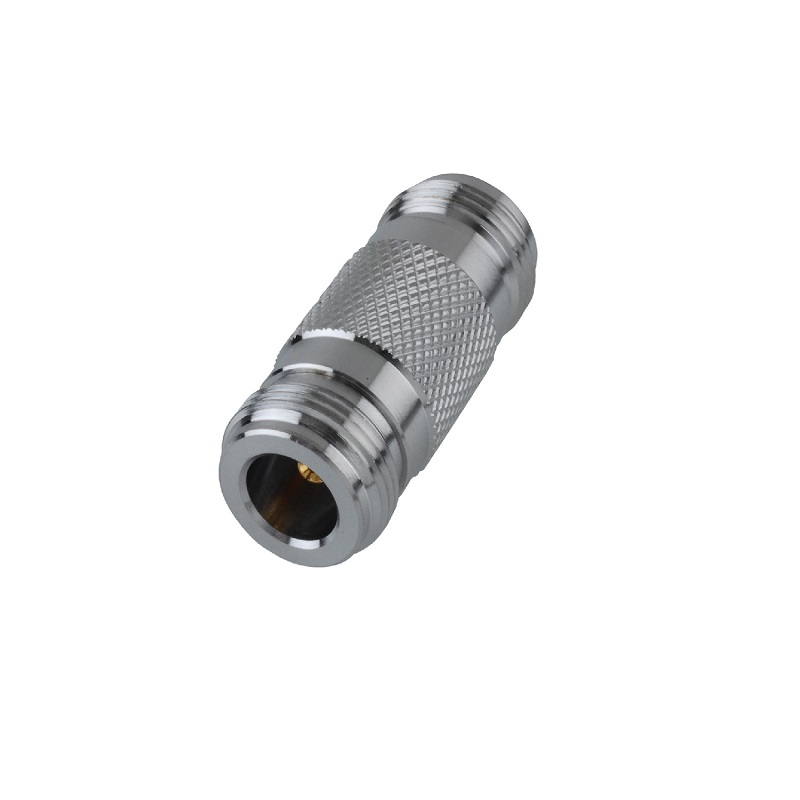

This is a 172123 N to N Jack RF / Coaxial Straight Adapter, 50 ohm. The 172123 is an N-type Jack to N-type Jack Straight Adapter with gold-plated phosphor bronze contact. Body made up of brass with white bronze finish and PTFE insulator. This adapter is commonly used in applications requiring 2 dissimilar RF interfaces to be connected.

Features:

1. Broad Line of Military, Industrial, and Commercial Grade Products Available
2. Excellent RF Performance from DC to 11 GHz
3. Accommodates a Wide Range of Medium- to Miniature-Sized RG Coaxial Cables in a Rugged, Medium-Sized Design
4. Threaded Coupling Mechanism Is Ideal for Vibration Resistance

Package Includes:

1 x 172123 N to N Jack RF / Coaxial Straight Adapter, 50 ohm

SMA to type N adapter is a between series coaxial adapter design. This 50 Ohm SMA adapter is precision manufactured to RF components industry specifications and has a maximum frequency of 11 GHz.

Applications:

Interconnection of RF cables and equipment

Features:

1. Flat response
2. Excellent VSWR
3. Passivated stainless steel
4. Low-cost adapters, available from stock

Specifications:

1. Resistance: 50Ω
2. Frequency Range: DC-11GHz
3. Working Voltage: 335V RMS
4. Withstand Voltage: 1000V RMS
5. Insertion Loss: <0.24dB/3GHz
6. VSWR: <1.15:1
7. Durability: >500 cycles
8. Body Material: Brass
9. Plating Material: Nickel/Gold
10. Pin/Socket Contact: Brass/Beryllium-Copper
11. Pin/Socket Plating: Gold/Gold
12. Insulator: PTFE
13. Operating Temperature: -40° to 85° C

Package Includes:

1 x N(M) to SMA(F) Adapter

It is a 50Ω SMA (F) jack straight Panel Mount 2 Hole. This Straight flange mount SMA connector features a gold-plated brass body and mechanical interface. This female connector is suitable for applications including Wi-Fi equipment. It operates at a voltage rating of 500 V
and a frequency of 18 GHz.

Features:

1.  Gold plated body
2.  Suitable for applications including Wi-Fi equipment
3.  Solder termination method

Package Includes:

1 x SMA (F) jack straight Panel Mount 2 Hole

These plugs will allow you to make a TV extension cable to connect your TV or TNT box to the wall socket or antenna and then you can receive TNT channels.

Features:

1.  Metal Shielded Plugs
2. Anti-Parasite Plugs
3. Large diameter core
4. Ergonomically shaped moulded plugs

Specification:

1. Mounting up to 1.02 low loss cables
2. Universal Compatibility: These plugs are compatible with all types of coaxial cables

Package Includes:

1 x Male Cable TV Plug Pack of – 2, RF Head

RG58 50Ω BNC Cable With Male Connector at Both Ends-3Meter PE insulated, tinned copper wire type, polyvinyl chloride non-contaminating (PVCNC) jacket, and tinned copper braid shield. The molded strain relief is directly bonded to the cable jacket for superior strength and durability. PTFE insulation and nickel tarnish-resistant outer shells used in the BNC connector provide long life and reliability. Gold-plated brass center contacts assure the most noise-free connection possible. The connectors and cable is impedance matched.

Features:

1. The molded strain relief is directly bonded to the cable jacket for superior strength and durability.
2. PTFE insulation and nickel tarnish-resistant outer shells used in the BNC connector provide long life and reliability.
3. Gold-plated center contacts assure the most noise-free connection possible.
4. The connectors and cable are impedance matched.

Package Includes:

1 x RG58 cable, 50Ω (3m)  – BNC Male connector at both ends

BNC Connector For CCTV Male Type With Plastic

We at robu offers, a full range of cable mount BNC/TNC and diverse range of RF connectors plugs, jacks and bulkhead jacks. These connectors are designed to terminate to industry-standard 50 ohm and 75-ohm cables with longer life, perfect designs and durable industry-grade Standards and finish. . A range of standard items is listed in the category RF Connectors. Explore the Category for more cable mount as well as PCB/Panel Mount RF connectors which suits your needs.

Appliance: Antennas, Cable Assembly, Automotive, Radios, Video, Broadcast, Telecom, Satcom, Monitors, Recorders, Switchers, Base Stations, Medical Equipment, Instrumentation, CCTV, CATV, HDTV, etc.

Features and Specifications:

Features:

1. BNC Connector,Straight/180°, Male Plug, Solder Type,75ohm,brass plating nickel
2. Compact Design for less installation space required;
3. Easy quick connect and disconnect coupling;

Specifications:

Electrical Characteristics

1. Impedance：50ohm
2. Frequency Range: 0~1 GHz for 75 ohm
3. VSWR: Straight type ≦ 1.22/3GHz / R/A type ≦ 1.30/3GHz
4. Dielectric Withstanding Voltage: 1500 V rms
5. Working Voltage: 500 V rms
6. Center Contact Resistance ≦ 1.5 mΩ (Milliohms max.)
7. Outer Contact Resistance ≦ 2.0 mΩ (Milliohms max.)
8. Insultation Resistance ≧5 × 103 mΩ (Milliohms min.)

Mechanical Characteristics

1. Coupling: bayonet
2. Contact Retention: 6 lbs min.
3. Mating Durability: ≧500 cycles

Environmental Characteristics

1. Environmental Characteristics: Teflon -55℃~+155℃ / POM -40℃~+60℃
2. Coupling Nut Retention: 100 lbs. min.
3. Vibration: MIL-STD-202 Meth. 204
4. Corrosion Resistance: MIL-STD-202 Meth. 101

Note: Refer Schematic Image for Dimensional Details

Package Includes:

1 x BNC Connector For CCTV Male Type With Plastic
