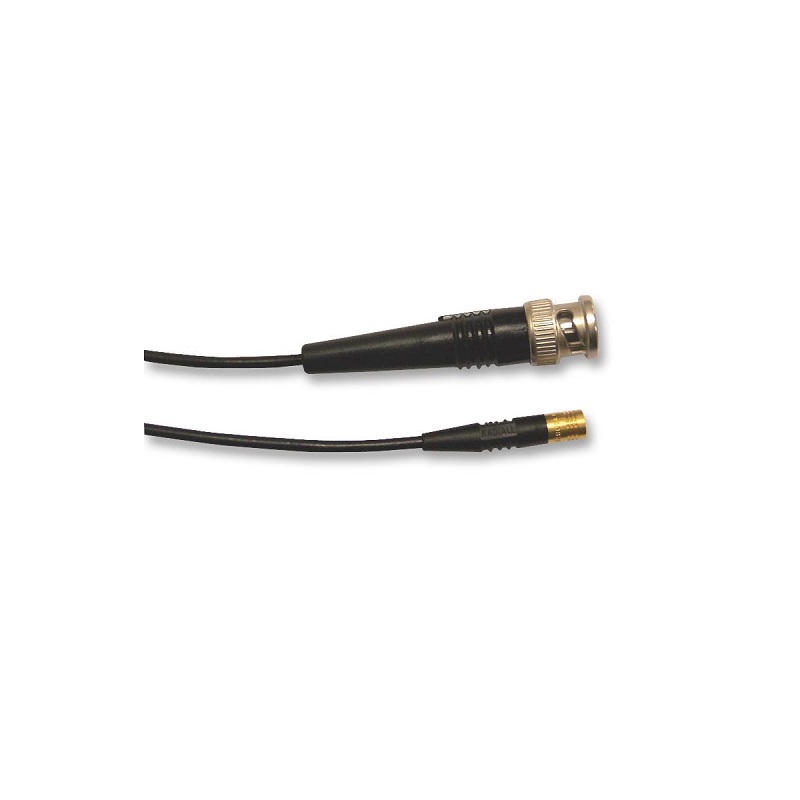

This is an R284C0351028 RF / Coaxial Cable Assembly, BNC Plug to SMB Plug, RG174, 50 ohms, 3.28 ft, 1 m, Black. Coaxial cable is commonly used by cable operators, telephone companies, and internet providers around the world to convey data, video, and voice communications to customers. They are also called RF cables, which stand for radiofrequency. The R284C0351028 from Radial is a cable assembly. It has BNC straight plug crimp type cable 2.6/50S  on one side and SMB straight plug crimp type cable 2.6/50+75S  on another side.

Features:

1. It  Supports High Bandwidth Levels.
2. This cable is Easy to Install.
3. The cable is Easy to Locate.
4. Coaxial cable also  Can Provide Power.

Package Include:

1 x R284C0351028 RF / Coaxial Cable Assembly, BNC Plug to SMB Plug, RG174, 50 ohms, 3.28 ft, 1 m, Black

SMA Female Connector Right Angled Through-Hole for PCB Mount

We at robu offers, a full range of cable mount BNC/TNC and a diverse range of RF connectors plugs, jacks and bulkhead jacks. These connectors are designed to provide compatibility with industry-grade 50 ohm and 75-ohm cables for longer operational life with gold and nickel plating for environmental protections.

A range of standard items is listed in the category RF Connectors. Explore the Category for more cable mount as well as PCB/Panel Mount RF connectors that suits your needs. Contact us for any other specific requirements.

Main Application of SMA Connectors:

• Aerospace and Defense: Hand-held field Device and Instrumentation
• Medical: Instrumentation
• Commercial Vehicle: Bluetooth and GPS
• Telecommunications: Wireless Base Stations, Cellular Mobile System
• Data/Communications:Wifi, WiMAX
• Industrial: Active and passive components, instrumentation, M2M Communications, Vehicle Tracking System

Features and Specifications:

Features:

1. Through Hole, Pcb Mount, Jack/female, Angled/90°, 50Ω;
2. Excellent electrical performance up to 18GHz with low reflection;
3. Thread type coupling mechanism ensure small loss and high security in a compact design;
4. High Quality with 30 days 100% Money back;
5. From the OEM Original Factory, same quality with much better price.

Specifications:

Electrical Characteristics

1. Impedance：50 ohm
2. Frequency Range: 0~6 GHz
3. VSWR: Straight type ≦ 1.3max / R/A type ≦ 1.5max
4. Dielectric Withstanding Voltage:1000 V rms min for RG142, RG405
   750 V rms min. for RG316, RG402
   500v rms min. for RG178
5. Working Voltage: 500 V rms max. for RG142, RG405
   375 V rms max. for RG316, RG402
   170 V rms max. for RG178
6. Center Contact Resistance ≦ 6.0 mΩ  (Milliohms max.)
7. Outer Contact Resistance ≦ 2.0 mΩ  (Milliohms max.)
8. Insultation Resistance ≧ 5 x 10³ mΩ (Megohms min.)

Mechanical Characteristics

1. Coupling: 1/4-36 thread
2. Contact Retention: 15 in-lbs min.
3. Coupling nut torque: 30 in-lbs. min.
4. Durability(mating) ≧ 500 cycles (For Beryllium Copper Contact)

Environmental Characteristics

1. Environmental Characteristics: -65°C ~ +165°C
2. Vibration: MIL-STD-202 Meth.204
3. Corrosion resistance: MIL-STD-202 Meth. 101

Note: Refer Schematic Image for Dimensional Details

Package Includes:

1 x SMA Female Connector Right Angled Through-Hole for PCB Mount

SMA Female Straight Edge PCB Mount Connector

We at robu offers, a full range of cable mount BNC/TNC and a diverse range of RF connectors plugs, jacks and bulkhead jacks. These connectors are designed to provide compatibility with industry-grade 50 ohm and 75-ohm cables for longer operational life with gold and nickel plating for environmental protections.

A range of standard items is listed in the category RF Connectors. Explore the Category for more cable mount as well as PCB/Panel Mount RF connectors that suits your needs. Contact us for any other specific requirements.

Appliance:

• Aerospace and Defense: Hand-held field Device and Instrumentation
• Medical: Instrumentation
• Commercial Vehicle: Bluetooth and GPS
• Telecommunications: Wireless Base Stations, Cellular Mobile System
• Data/Communications:Wifi, WiMAX
• Industrial: Active and passive components, instrumentation, M2M Communications, Vehicle Tracking System

Features and Specifications:

Features:

1. SMA Connector,Female,Straight,PCB Connector,Plate Edge Mount,Copper,Gold Plating;
2. Excellent electrical performance up to 18GHz with low reflection;
3. Thread type coupling mechanism ensure small loss and high security in compact design;

Specifications:

1. Impedance：50 ohm
2. Frequency Range: 0~6 GHz
3. VSWR: Straight type ≦ 1.3max / R/A type ≦ 1.5max
4. Dielectric Withstanding Voltage:1000 V rms min for RG142, RG405
5. 750 V rms min. for RG316, RG402
6. 500v rms min. for RG178
7. Working Voltage: 500 V rms max. for RG142, RG405
8. 375 V rms max. for RG316, RG402
9. 170 V rms max. for RG178
10. Center Contact Resistance ≦ 6.0 mΩ  (Milliohms max.)
11. Outer Contact Resistance ≦ 2.0 mΩ  (Milliohms max.)
12. Insultation Resistance ≧ 5 x 10³ mΩ (Megohms min.)

Mechanical Characteristics

1. Coupling: 1/4-36 thread
2. Contact Retention: 15 in-lbs min.
3. Coupling nut torque: 30 in-lbs. min.
4. Durability(mating) ≧ 500 cycles (For Beryllium Copper Contact)

Environmental Characteristics

1. Temprature Range: -55°C ~ +155°C
2. Vibration: MIL-STD-202 Meth.204
3. Corrosion resistance: MIL-STD-202 Meth. 101

Note: Refer Schematic Image for Dimensional Details

Package Includes:

1 x SMA Female Straight Edge PCB Mount Connector

Low PIM  N male plug to SMA male plug coaxial connector adapter has an operational frequency range of DC-3 GHz, offers excellent VSWR performance(VSWR≤1.08）and Low Passive Intermodulation.

This 50 Ohm type N adapter is precision manufactured to RF components industry specifications. In addition to low PIM adapters, HDG also provides other RF coaxial cable accessories of the Cell site, such as gel seal closure, jumper cable, RF coaxial cable…etc.

One side is N Male with a male pin, and the other side is SMA Male with a male pin, used for connecting N to SMA RF coaxial cable or device.

Features:

1. Flat response
2. Excellent VSWR
3. Passivated stainless steel
4. Low-cost adapters, available from stock

Specifications:

1. Characteristic Impedance: 50ohm
2. Frequency Range: DC-3GHz
3. VSWR: ≤1.08
4. Insulation Resistance: ≥5000MΩ
5. Dielectric Withstanding Voltage: ≥2500V RMS,50Hz
6. Outer contact: ≤1.5mΩ
7. Center contact: ≤1.0mΩ
8. Durability: >500 cycles
9. Body Material: Brass
10. Plating Material: Nickel/Gold
11. Pin/Socket Contact: Brass/Beryllium-Copper
12. Pin/Socket Plating: Gold/Gold
13. Insulator: PTFE
14. Operating Temperature: -40° to 85° C

Package Includes:

1 x N(M) to SMA(M) Adapter

This is an MC002989 RF / Coaxial Cable Assembly, 3 GHz, Gold Plated, SMA Plug to SMA Plug, RG316, 50 ohms, 10 “, 255 mm. Coaxial cable is commonly used by cable operators, telephone companies, and internet providers around the world to convey data, video, and voice communications to customers. They are also called RF cables, which stand for radiofrequency. The MC002989 from Multicomp Pro is an SMA Straight Plug-to-SMA Straight Plug Cable Assembly using RG-316 coaxial cable, 255mm/10 inches long. Features gold-plated brass plugs at each end.

Features:

1. It  Supports High Bandwidth Levels.
2. This cable is Easy to Install.
3. The cable is Easy to Locate.
4. Coaxial cable also  Can Provide Power.

Package Includes:

1 x MC002989 RF / Coaxial Cable Assembly, 3 GHz, Gold Plated, SMA Plug to SMA Plug, RG316, 50 ohms, 10 “, 255 mm

BNC Connector Video Camera Straight Female For Cable

We at robu offers, a full range of cable mount BNC/TNC and diverse range of RF connectors plugs, jacks and bulkhead jacks. These connectors are designed to terminate to industry-standard 50 ohm and 75-ohm cables with longer life, perfect designs and durable industry-grade Standards and finish. . A range of standard items is listed in the category RF Connectors. Explore the Category for more cable mount as well as PCB/Panel Mount RF connectors which suits your needs.

Main Application of BNC Connectors:

Antennas, Cable Assembly, Automotive, Radios, Video, Broadcast, Telecom, Satcom, Monitors, Recorders, Switchers, Base Stations, Medical Equipment, Instrumentation, CCTV, CATV, HDTV, etc.

Features and Specifications:

Features:

1. Cable Connector, Jack/female, Straight/180°,50Ω, UT085
2. Compact Design for less installation space required;
3. Easy quick connect and disconnect coupling.

Specifications:

Electrical Characteristics

1. Impedance：50 ohm
2. Frequency Range: 0~4 GHz
3. VSWR: Straight type ≦ 1.22/3GHz / R/A type ≦ 1.30/3GHz
4. Dielectric Withstanding Voltage: 1500 V rms
5. Working Voltage: 500 V rms
6. Center Contact Resistance ≦ 1.5 mΩ (Milliohms max.)
7. Outer Contact Resistance ≦ 2.0 mΩ (Milliohms max.)
8. Insultation Resistance ≧5 × 10³ mΩ (Milliohms min.)

Mechanical Characteristics

1. Coupling: bayonet
2. Contact Retention: 6 lbs min.
3. Mating Durability: ≧500 cycles

Environmental Characteristics

1. Environmental Characteristics: Teflon -55oC~+155oC / POM -40oC~+60oC
2. Coupling Nut Retention: 100 lbs. min.
3. Vibration: MIL-STD-202 Meth. 204
4. Corrosion Resistance: MIL-STD-202 Meth. 101

Note: Refer Schematic Image for Dimensional Details

Package Includes:

1 x BNC Connector Video Camera Straight Female For Cable
