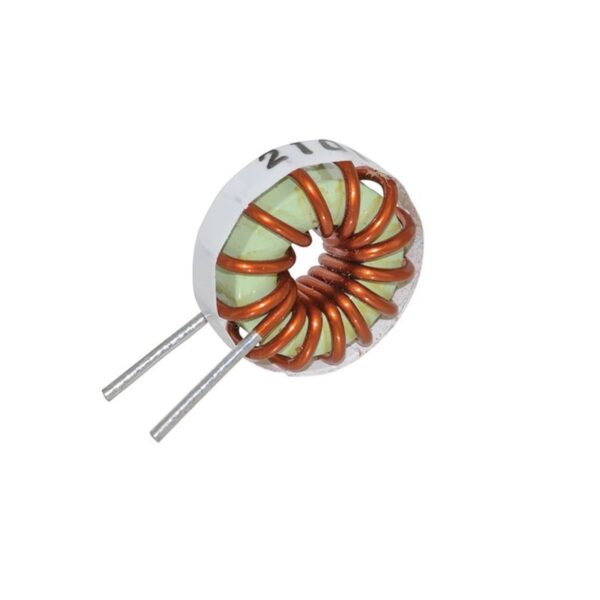

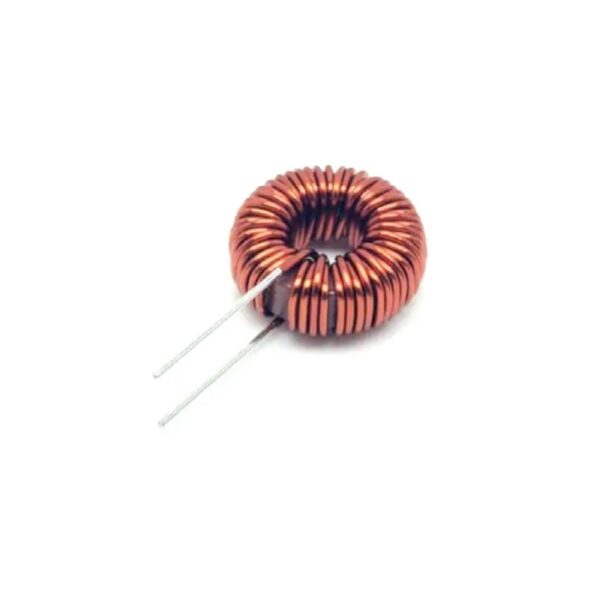

HHBC12-1R0A0028V Differential Mode Coils

The KEMET HHBC coils are normal mode chokes with a wide variety of characteristics. These coils are designed with Fe-Si dust cores and are useful in various
fields, such as DC/DC converters and differential noise countermeasures.

Applications:

1. Switching power supply outlet
2. DC-DC converter
3. Phase compensation
4. Boost converter
5. Normal mode noise countermeasure

Features:

1. Fe-Si dust core material
2. Available for noise countermeasure as well as general use
3. Good balance of core loss and DC superposition characteristics
4. Wide variety of sizes and specifications
5. Operating temperature range from −40°C to +125°C

Specifications:

1. Model: HHBC12-1R0A0028V
2. Rated Current: 5A
3. Inductance (µH): 28 , 26.5
4. DC Resistance/ Line (mΩ) Maximum: 21.1
5. Temperature Rise1 (K) Maximum: 25
6. Wire Diameter (mm): 1.0
7. Weight: 13g

Packages Includes:

1 x HHBC12-1R0A0028V Differential Mode Coils
