Product details
The LM2596 regulator series is a monolithic integrated circuit that provides all of the active operations for a step-down switching regulator capable of driving a 3A load with excellent line and load control. Multiple variants are available for these devices in 3.3V, 5V, and 12V fixed output voltages and an adjustable output variant.
These regulators are simple to operate because they require only a few external components. The switching frequency of the IL2596 series is 150kHz. A standard 5-lead TO220 package is available. Other features include a guaranteed 4% output voltage tolerance under specified input voltage and output load conditions and a 15% oscillator frequency tolerance. External shutdown is provided, with a typical standby current of 100A.
Features
- Adjustable output
- Adjustable version output voltage range, 1.2V to 37V
- ± 4% max over the line and load conditions
- Guaranteed 3A output load current
- Input voltage range up to 40V
- Requires only four external components
- Excellent line and load regulation specifications
- 150kHz fixed frequency internal oscillator
- TTL shutdown capability
- Low power standby mode,
- IQ typically 100µA
- Thermal shutdown and current limit protection
Applications
- Simple, high-efficiency step-down regulator
- On-card switching regulators
- Positive to negative converter
Specifications

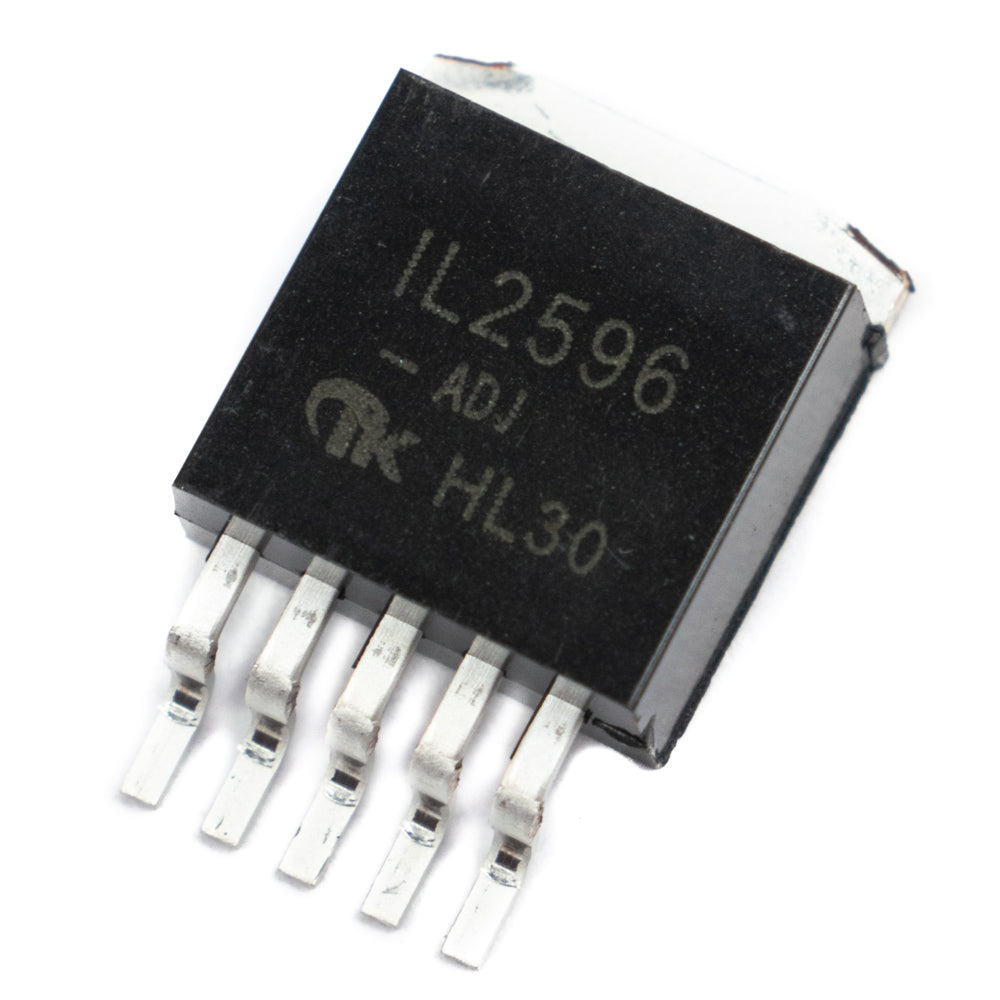

Model | IL2596-ADJ |
Brand |
IKSemicon
|
Input Voltage |
4.5V-40V DC
|
Rated Current |
0.2-3A
|
Efficiency |
73%
|
Number of Pins | 5 |
Output Voltage Range | 1.23V-37V |
Switching Frequency | 150 kHz |
Package | TO-263 |
Mounting Type | SMD |
Quantity | 500 |
Country of Origin | China |
