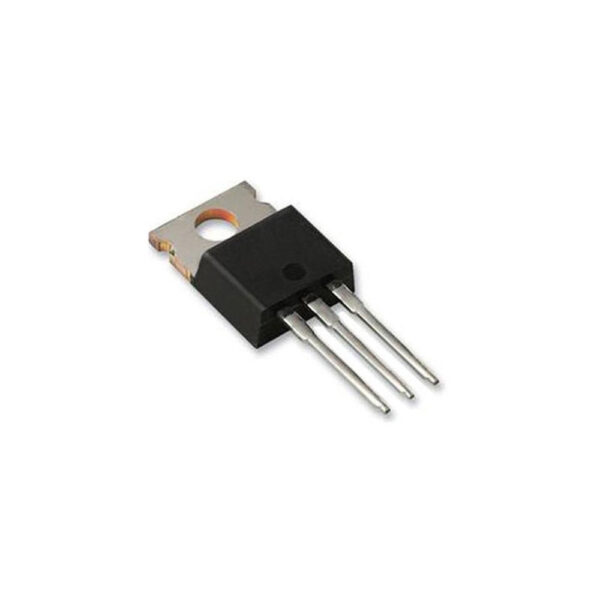

BTA12-600B 12A 600V TRIAC TO-220 Package
BTA12-600B 12A 600V TRIAC TO-220 Package 38.2043.42 (Including tax)

IRF9530 MOSFET 100V 14A P-Channel Power MOSFET TO-220 Package

Original price was: ₹47.49.Current price is: ₹44.79. (Including tax)

Discount per Bulk Quantity

QuantityDiscountPrice
5 - 105%42.53 (Including tax)
11 - 208%41.19 (Including tax)
21 - 4010%40.30 (Including tax)
41 - 10012%39.42 (Including tax)

Out of stock

This product is currently sold out.

No worries! Enter your email, and we'll let you know as soon as it's back in stock.

  • fast delivery Fast Shipping

    Get the Priority Shipping on Prepaid Orders

Prepaid Orders

  • normal shipping Normal Shipping

    Get Normal Delivery (Surface) with Cash On Delivery

COD Orders

18 People watching this product now!
Description

IRF9530 is a new generation of high voltage MOSFET family that is utilizing an advanced charge balance mechanism for outstanding low on-resistance and lower gate charge performance. This advanced technology has been tailored to minimize conduction loss, provide superior switching performance, and withstand extreme dv/dt rate and higher avalanche energy. It is very suitable for various AC/DC power conversion in switching mode operation for system miniaturization and higher efficiency.

Features

  • Dynamic dV/dt rating
  • Repetitive avalanche rated
  • 175 °C operating temperature
  • Fast switching
  • Ease of paralleling
  • Simple drive requirements
  • Low on-resistance
  • Suitable for various AC/DC power conversion in switching mode operation.


Applications

  • Switching high power devices
  • Motor speed control
  • LED dimmer and flasher
  • Converters and inverters circuits
 Specification
Number of Channels 1 Channel
Transistor PolarityP-Channel
Drain-Source Breakdown Voltage-100 V
Continuous Drain Current-14 A
Drain-Source Resistance0.20 Ohms
Gate-Source Voltage20 V
Gate Charge58 nC
Operating Temperature Range-55°C – 175 °C
Power Dissipation 50 W
Country of OriginChina
Additional information
Weight 2 kg
