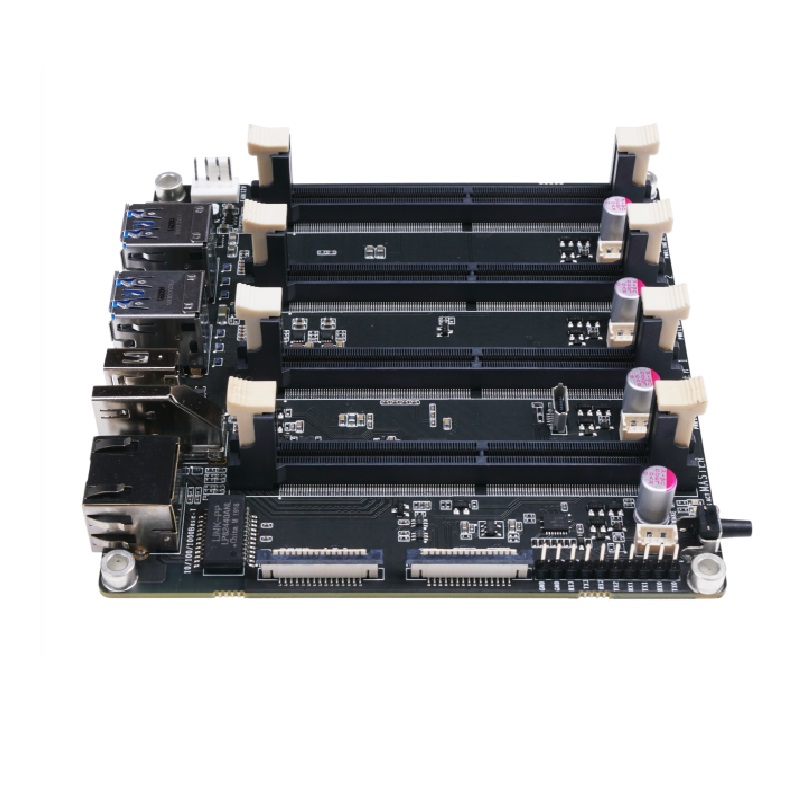

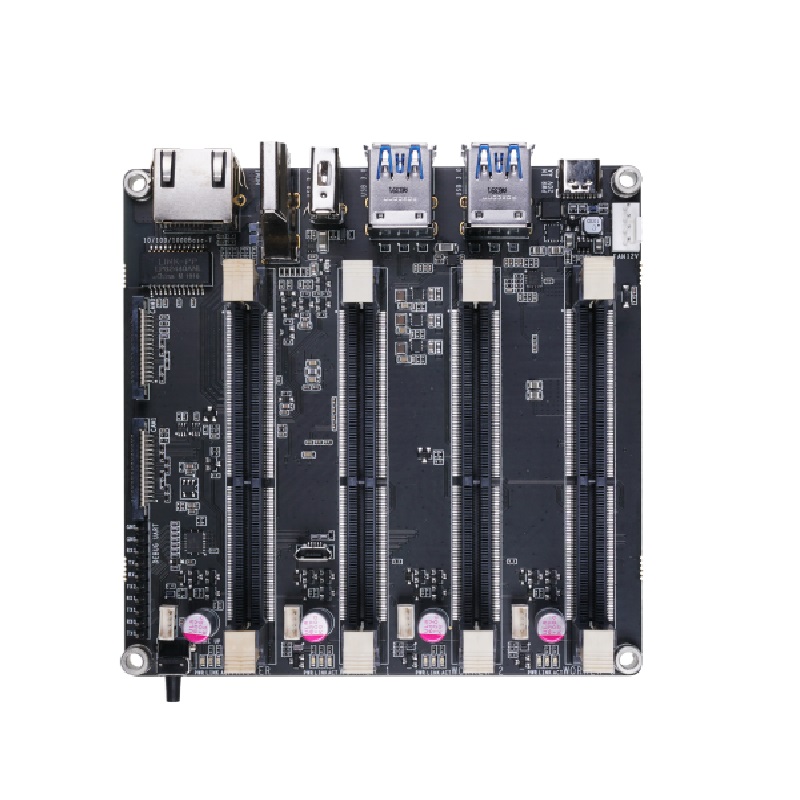

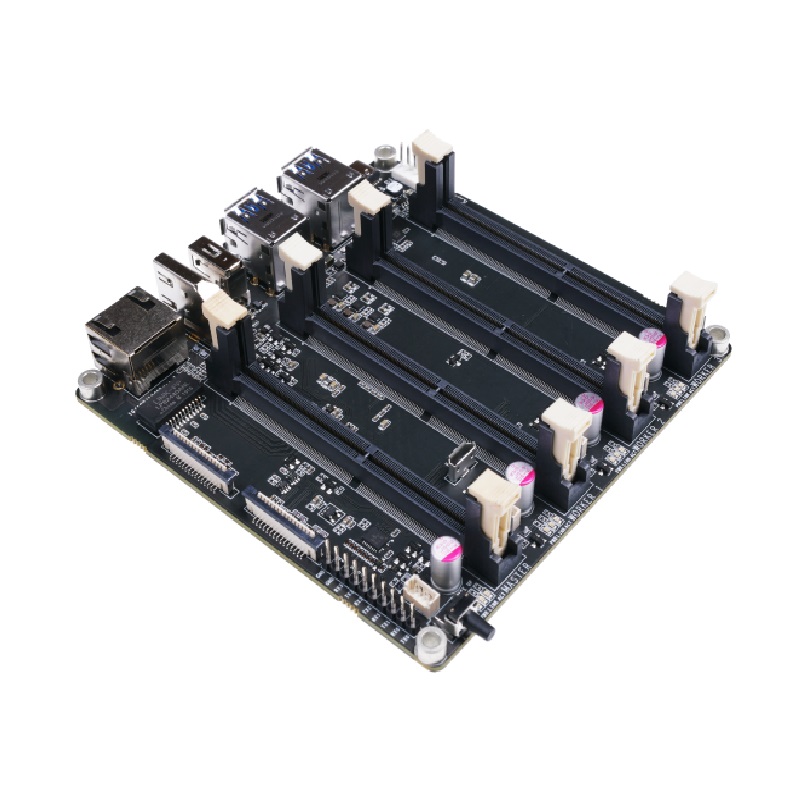

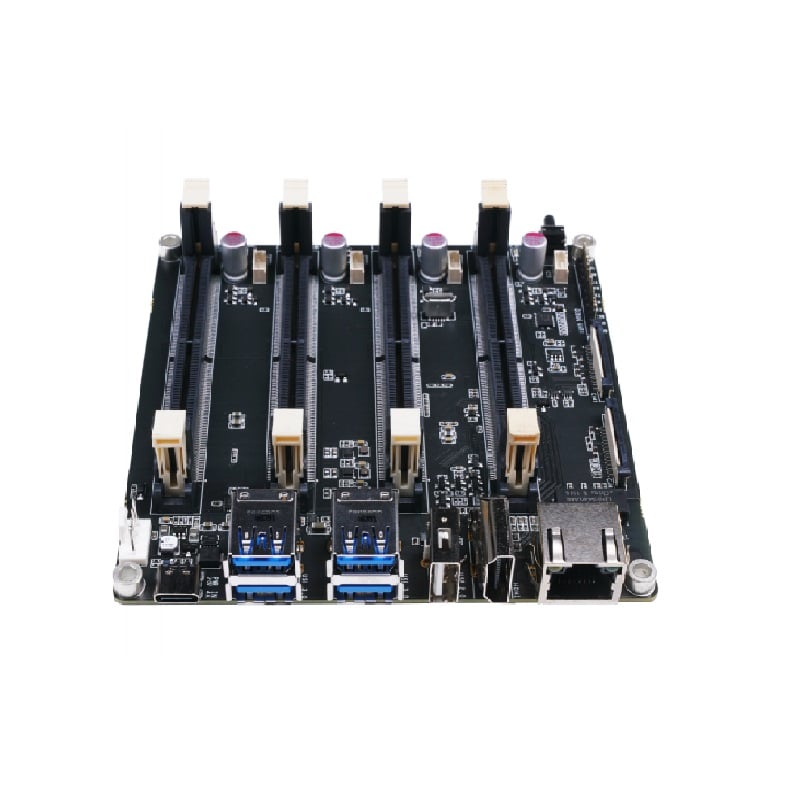

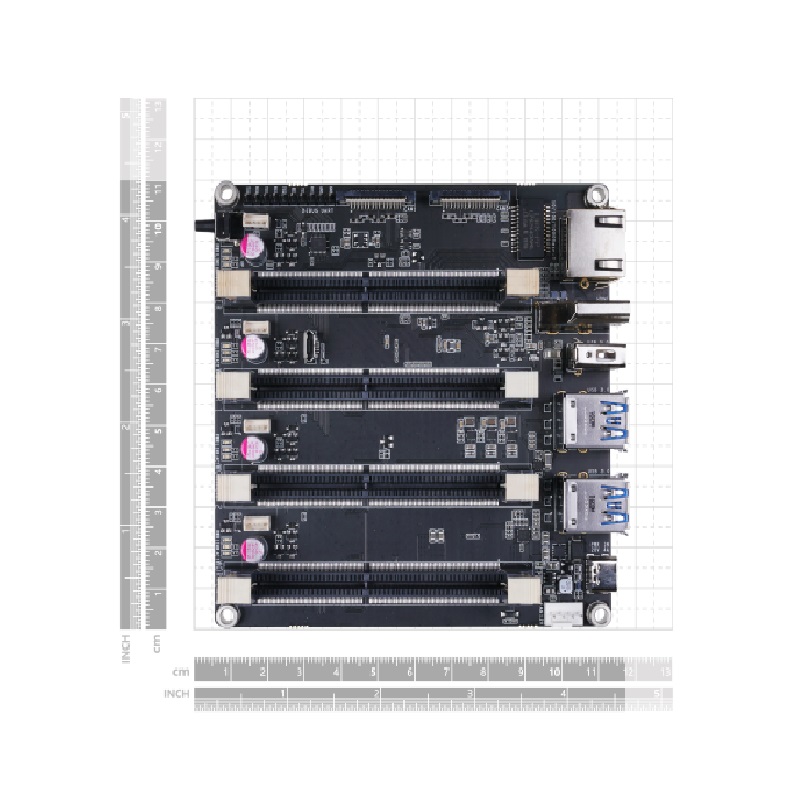

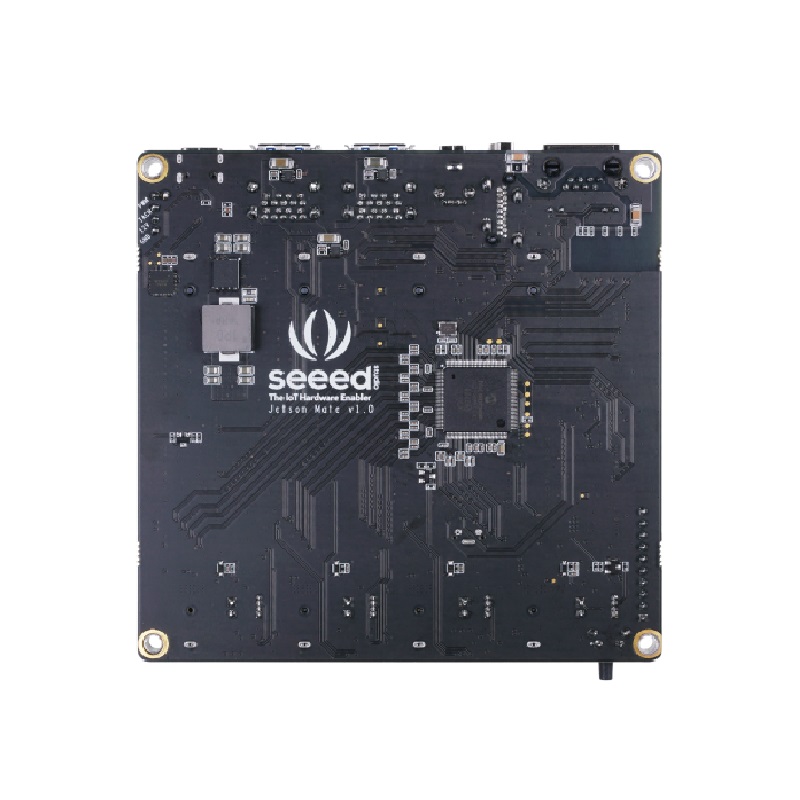

Jetson Mate is a carrier board in which you can install up to 4 NVIDIA Jetson Nano/NX SoMs. There is an onboard 5-port Gigabit switch enabling the 4 SoMs to communicate with each other. All the 3 peripheral SoMs can be powered on or off separately. With a 65W 2-Port PD charger, for Jetson Nano SoMs or a 90W 2-Port PD charger for Jetson NX SoMs, and one ethernet cable, developers can easily build their own Jetson Cluster.
Applications:
1 x Jetson Mate
1 x Cable: 30mm Long Black 4-Pin Male to 4-Pin Female 28 AGW – 1.25mm
| Product Name |
Carrier Board for GPU Cluster and Server |
|---|---|
| Brand |
Seeed Studio |
| Color |
Black |
| Use |
GPU Cluster and Server |
| Card Slots |
4 Slots |
| Onboard 5-Port Gigabit Switch |
Microchip KSZ9896CTXC |
| Power |
65W PD for Jetson Nano SoMs 90W PD for Jetson NX SoMs |
| Dimensions |
110mm x 110mm |
Only logged in customers who have purchased this product may leave a review.
Shipping and Delivery Policy
1. Shipping Process:
2. Shipping Charges:
3. Order Tracking:
4. Delivery Address:
5. Delivery Issues:
6. No Return Policy for Opened/Soldered Products:
7. Refund Policy:
Out of stock
Out of stock
Out of stock
Out of stock
Out of stock
Out of stock
| Processor |
Amlogic S922X Processor (12nm) Quad-core Cortex-A73(2.2Ghz) and Dual-core Cortex-A53(2Ghz) ARMv8-A architecture with Neon and Crypto extensions Mali-G52 GPU with 6 x Execution Engines (800Mhz) |
|---|---|
| Power |
1 x DC jack : outer (negative) diameter 5.5mm ,inner(positive) diameter 2.1mm 7.5V ~ 16V (Recommend range of input) – DC 12V/2A power adapter is recommendedPower consumption: – IDLE : ≃ 1.5W (Performance governor) ,1.3W(Conservative governor) – CPU Stress (Passive Heat-Sink) : ≃ 5.4W (@1908/2208MHz ,Stock) ,5.8W (@2016/2400MHz ,Overclock) – CPU Stress (Active Cooling-FAN) : ≃ 6.1W (@1908/2208MHz ,Stock) ,6.4W (@2016/2400MHz ,Overclock) – Power-Off : ≃ 0.2W |
| Memory |
LPDDR4 4GiB or 2GiB with 32-bit bus width Data rate: 3216 MT/s 1.1Volt low power design |
| Storage |
1 x eMMC connector (8G ,16G ,32G ,64G and 128G are available) 1 x microSD slot (DS/HS modes up to UHS-I SDR104) |
| Networking |
Optional WiFi or Ethernet USB adapters |
| Video |
1 x HDMI 2.0 (up to 4K@60Hz with HDR ,CEC ,EDID) – Although the +5V Power pin is able to supply a minimum of 300mA ,according to HDMI 2.0 specification ,a sink shall not draw more than 50mA of current from the +5V Power pin. |
| Audio |
1 x HDMI digital output |
| External I/O |
1 x USB 3.0 Host port 1 x USB 2.0 Host port 1 x Debug serial console (UART) 1 x MIPI DSI 4Lane (TBD) 1 x Peripheral Expansion Header (40-pin ,2.54mm pitch) – 2 x DC 5V ,2 x DC 3.3V ,1 x DC 1.8V ,8 x GND – 1 x SPI – 1 x UART – 2 x I2C – 25 x GPIO (Max) – 2 x ADC input (10bit ,1.8V Max) – All of I/O signal level is 3.3 Volt except for ADC input at max 1.8 Volt |
| Other features |
Built with a large passive heatsink System LEDS Indicators: – Red (PWR) – Solid light when DC power is connected – Blue (ALIVE) – Flashing like heartbeat while Kernel is running. Active Cooling Fan Connector (5V 2-pin) – Connector (2-pin ,1.25mm pitch) |
| Dimensions |
Dimensions including Fan heatsink: 69mm x 56mm x 22mm Dimensions including Tall heatsink: 69mm x 56mm x 32mm |
| Weight (gm) |
66g including a Tall heatsink |
