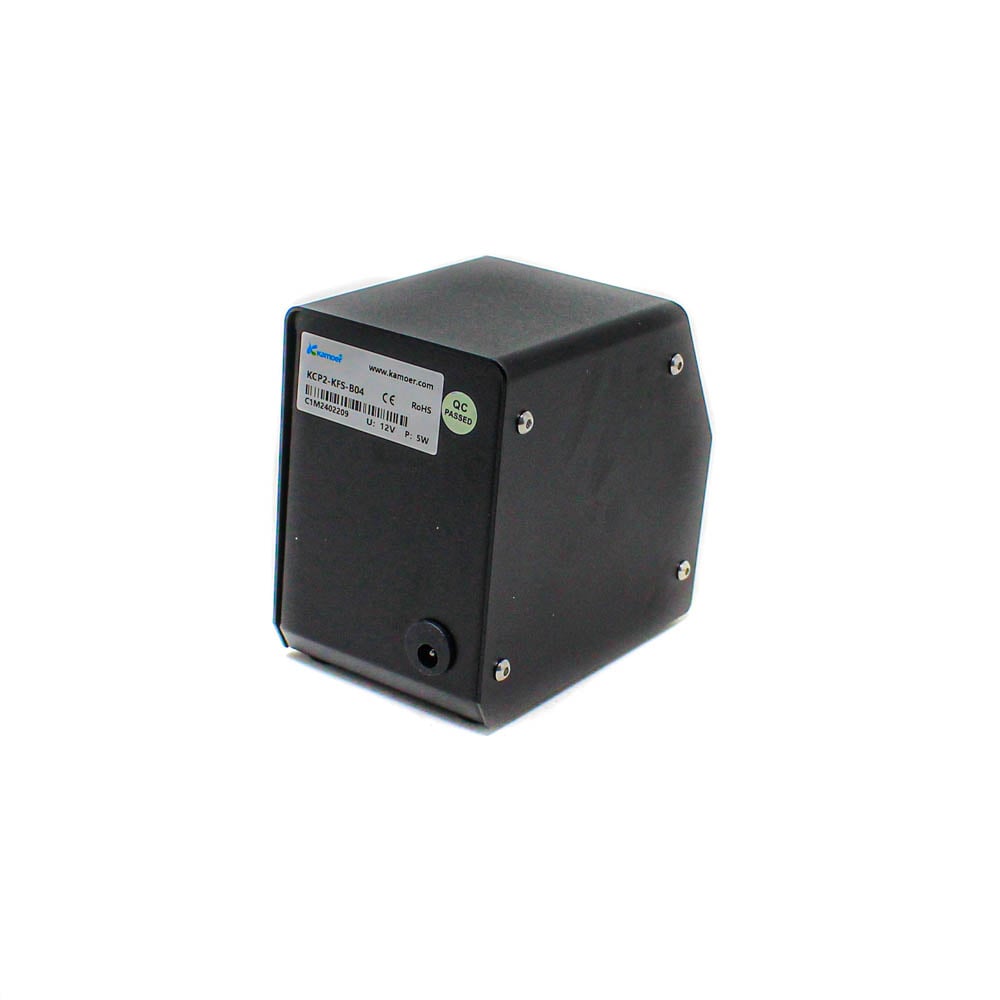

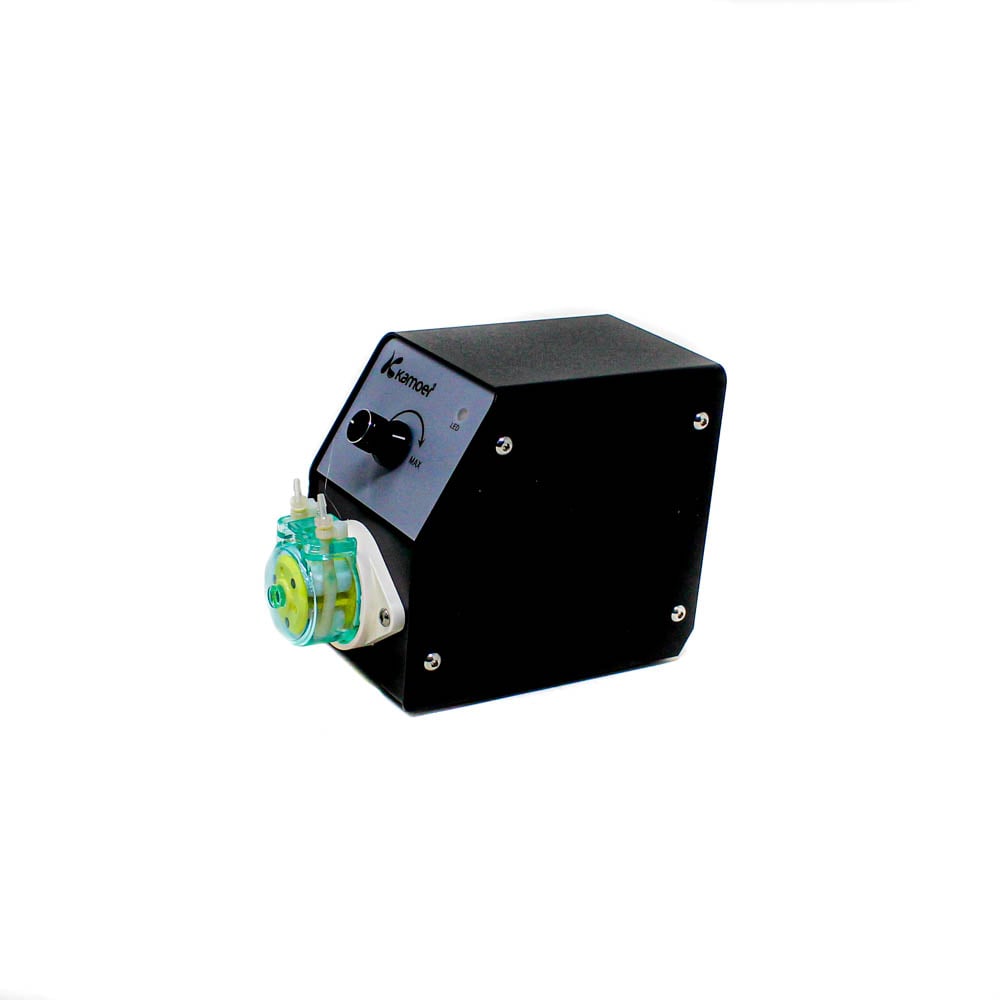

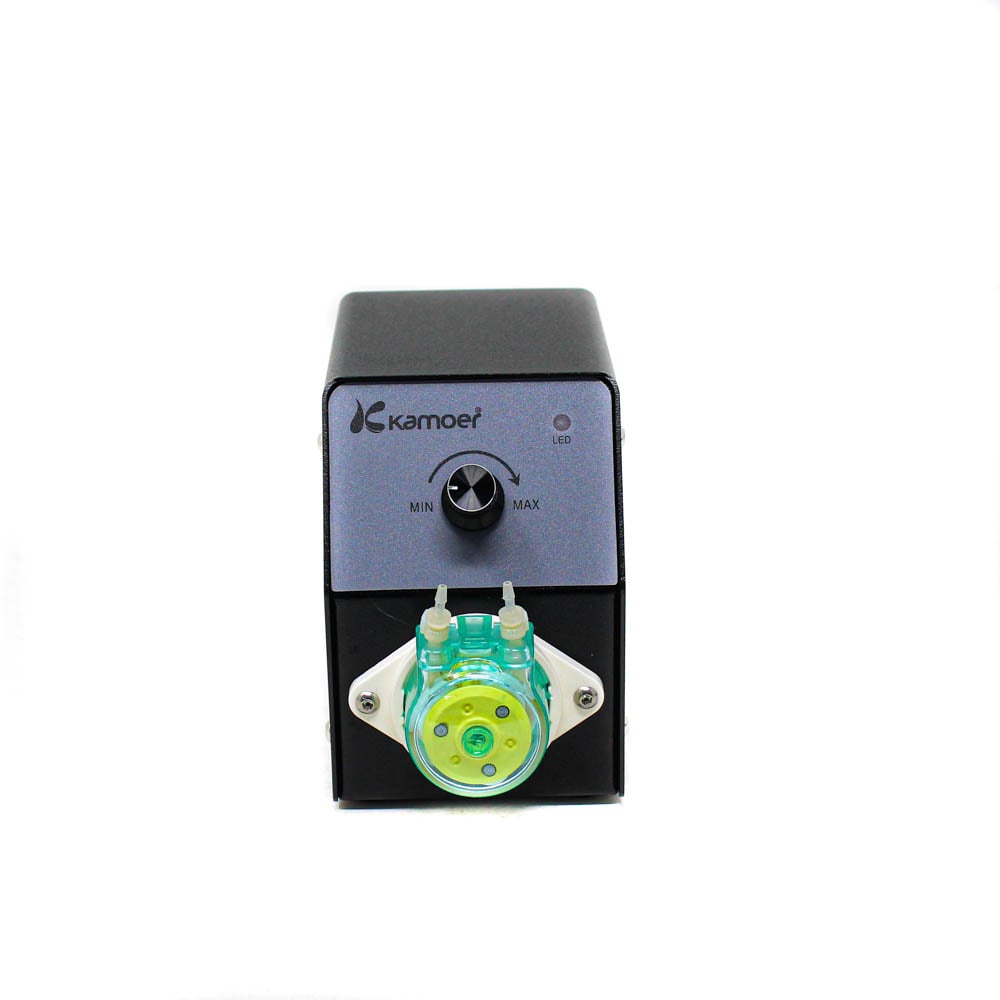

When pumping liquids and no direct contact with the liquid is required, the all-new range of peristaltic pumps from kamoer offers a simple solution. Unlike most pumps, peristaltic pumps squish a silicone tube to produce the pump-action instead of impelling it directly, thus no direct contact with the liquid. This pump requires a 24V DC supply and can produce a flow rate of up to 360ml per minute. If speed control is required we suggest using a simple PWM signal.

Features:

1. High flow
2. High negative pressure
3. Easy to maintenance
4. Chemical stability
5. Long life
6. High repeatability

7. Working conditions: Temperature 0~40℃, humidity <80%

8. Pump tube selection: Silicone tube, imported Norprene® tube

9. Transmission mode: Planetary gear transmission, reduction ratio 1:8

10. Pump head: The upper cover is made of engineering plastics, the pump body

11. PA and gears are made of synthetic engineering plastics

12. Installation method: Straight plate and L plate

Specification:

1. Code: SO6
2. ID*OD(mm): 2.0×4.0
3. Materials: Silicon
4. Flow rate: 11~34 ml/min
5. Pump tube length: 175mm (exposed 49.5mm) Code-S

6. Working condition: 0-40℃ relative temperature<80%
7. Pulse: three rollers, low pulse
8. Pump head: Engineering Plastics
9. Weight: 270g( without power), 330g(with power)
10. Motor life: about 1000 hours
11. Working conditions: ambient temperature 0 – 40C
12. Material: Norprene® Food process tube for critical processing applications in the food, dairy and cosmetic industries. Compatible with virtually all commercial cleaners and sanitisers. Great resistance to general chemicals, acid, alkali and oxidizing agents, working temperature 59℃-135℃

Application:

1. Printing: transferring printing ink
2. Transportation: pumping the oil and other liquid
3. Aquarium: drawing water from tank, calcium response reaction
4. Scientific facility: a laboratory experiment
5. Animal disease experiment: blood transfer

Package Includes:

1 x KCP2-KFS-S06 Kamoer Lab Pump

Straight Cycle Type – 1/8 cycle 3/16 Connector, It can be used on a variety of Kamoer mini pumps, like peristaltic pumps, metering pumps, and titrimetric pumps.

Features:

1. Nontoxic, odorless, low density, stiffness.
2. Good mechanical properties, apart from impact resistance, and other mechanical
3.  Properties are good than polyethylene, with good forming properties.
4. Hardness and heat resistance are superior to low-pressure polyethylene

Package Includes:

1 x Straight Cycle Type – 1/8 cycle 3/16 Connector

Straight Cycle Type – 1/8 cycle 1/16 Connector, It can be used on a variety of Kamoer mini pumps, like peristaltic pumps, metering pumps, and titrimetric pumps.

Features:

1. Nontoxic, odorless, low density, stiffness.
2. Good mechanical properties, apart from impact resistance, and other mechanical
3.  Properties are good than polyethylene, with good forming properties.
4. Hardness and heat resistance are superior to low-pressure polyethylene

Package Includes:

1 x Straight Cycle Type – 1/8 cycle 1/16 Connector

Modbus Communication Driver is intended for data connection between Reliance’s runtime software and devices communicating via the Modbus RTU and/or Modbus TCP communication protocols. The driver implements basic communication functions for reading and writing data in both the Client mode and the Server mode.

Modbus is a request-response protocol implemented using a master-slave relationship. In a master-slave relationship, communication always occurs in pairs—one device must initiate a request and then wait for a response—and the initiating device (the master) is responsible for initiating every interaction.

Applications:

1. PLC controller
2. Relay controller
3. Dry cut point (switch) control
4. RS485 communication control

Features:

1. Light weight
2. Compact size
3. Plug and play device
4. Low power consumption
5. Programmable Stepper Motor Controller Driver
6. Build in speed controller knob control wiring diagram

Specifications:

1. Product type: Digital Stepper Motor Driver
2. Color: Blue
3. Operating voltage: 12V 24V 220V
4. Mode: Position
5. Weight: 223g
6. Dimensions: 12x 9 x 3.5mm

Packages Includes:

1 x Kamoer Modbus Driver Controller

It can be used on a variety of Kamoer mini pumps, like peristaltic pumps, metering pumps, titrimetric pumps.

Features:

1. Nontoxic, odorless, low density, stiffness.
2. Good mechanical properties, apart from impact resistance, and other mechanical
3.  Properties are good than polyethylene, with good forming properties.
4. Hardness and heat resistance are superior to low-pressure polyethylene

Package Includes:

1 x L Type – 1/8 Connector

It can be used on a variety of Kamoer mini pumps, like peristaltic pumps, metering pumps, and titrimetric pumps. Buy from robu.in at our best prices

Features:

1. Nontoxic, odorless, low density, stiffness.
2. Good mechanical properties, apart from impact resistance, and other mechanical
3.  Properties are good than polyethylene, with good forming properties.
4. Hardness and heat resistance are superior to low-pressure polyethylene

Package Includes:

1 x One-way Valve – 3/16 Connector
