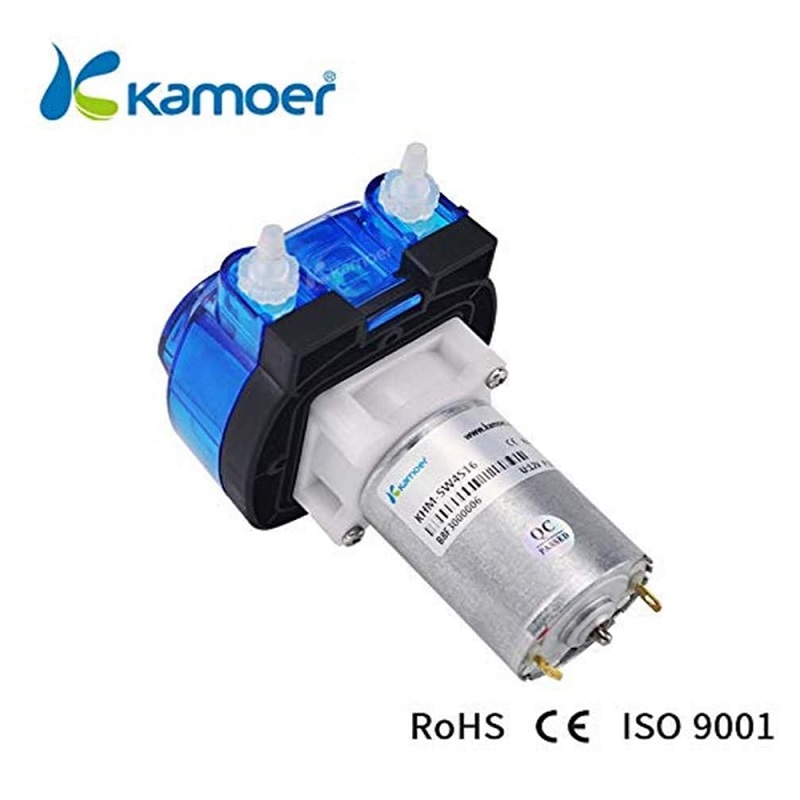

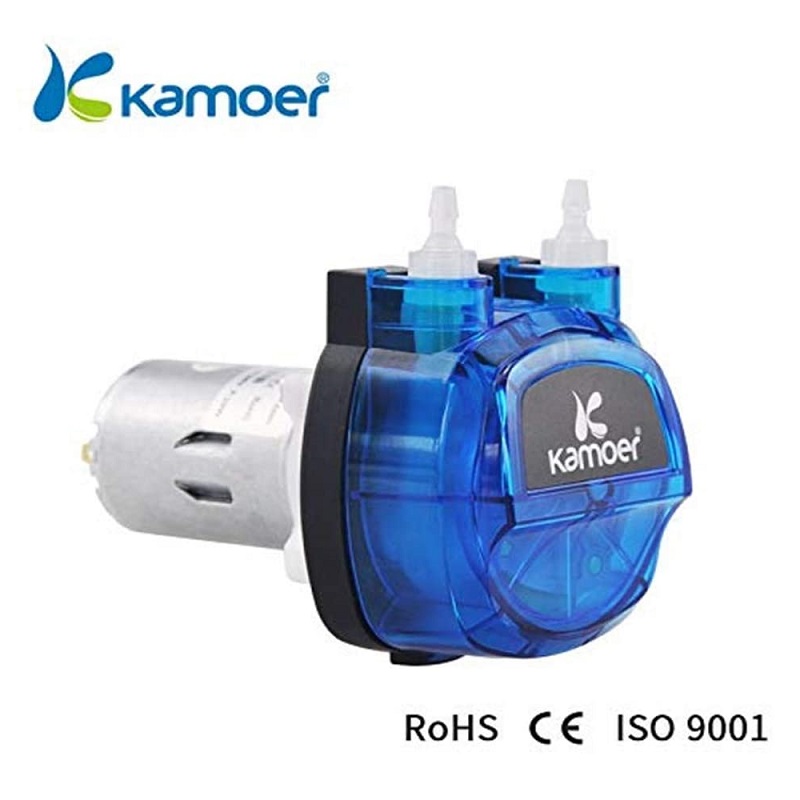

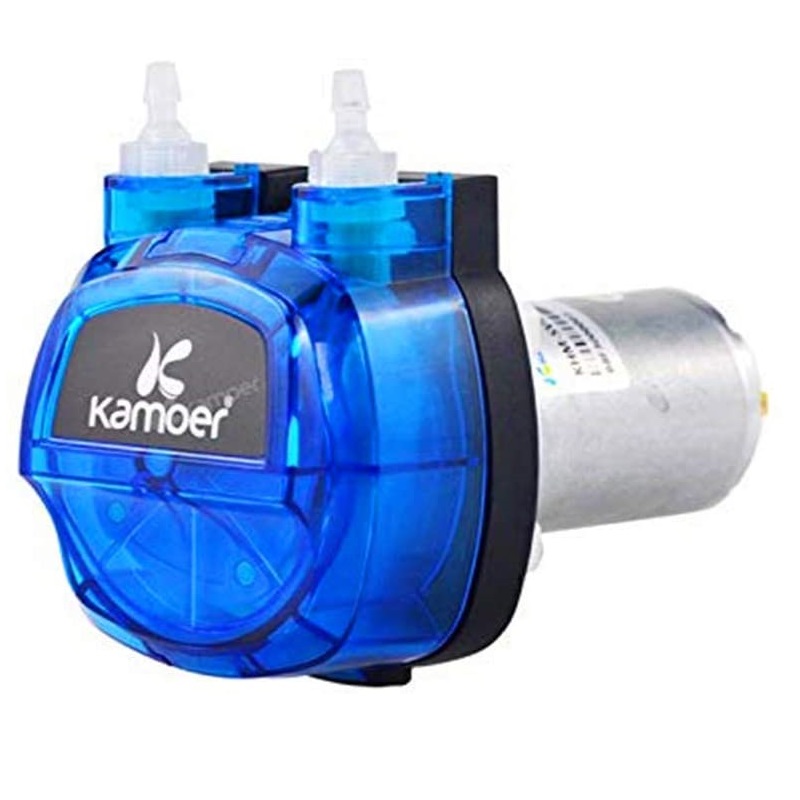

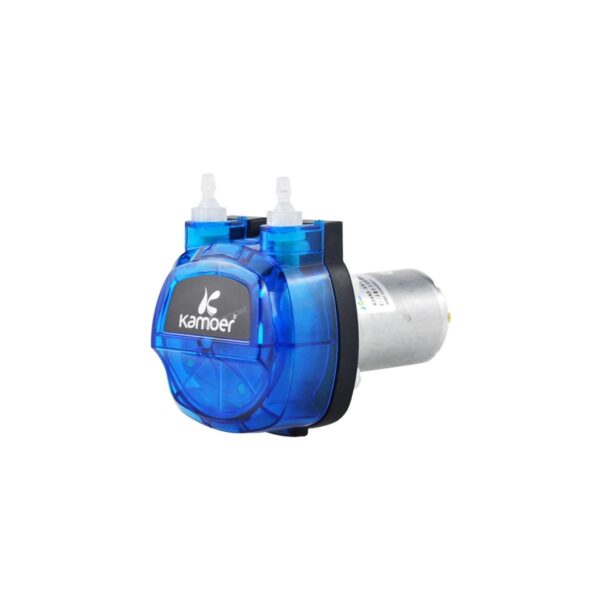

When pumping liquids and no direct contact with the liquid is required, the all-new range of peristaltic pumps from kamoer offers a simple solution. Unlike most pumps, peristaltic pumps squishes a silicone tube to produce the pump action instead of impelling it directly, thus no direct contact with the liquid. This pump requires a 24V DC supply and can produce a flow rate of up to 360ml per minute. If speed control is required we suggest using a simple PWM signal.

Features:

1. High flow
2. High negative pressure
3. Easy to maintenance
4. Chemical stability
5. Long life
6. High repeatability
7.  4 kinds of motors are available: 24V DC brush motor and brushless motor

8. Flow rate range: 24V340~580ml/min

9. Working conditions: temperature 0~40℃, humidity <80%

10. Pump tube selection: silicone tube, imported Norprene® tube

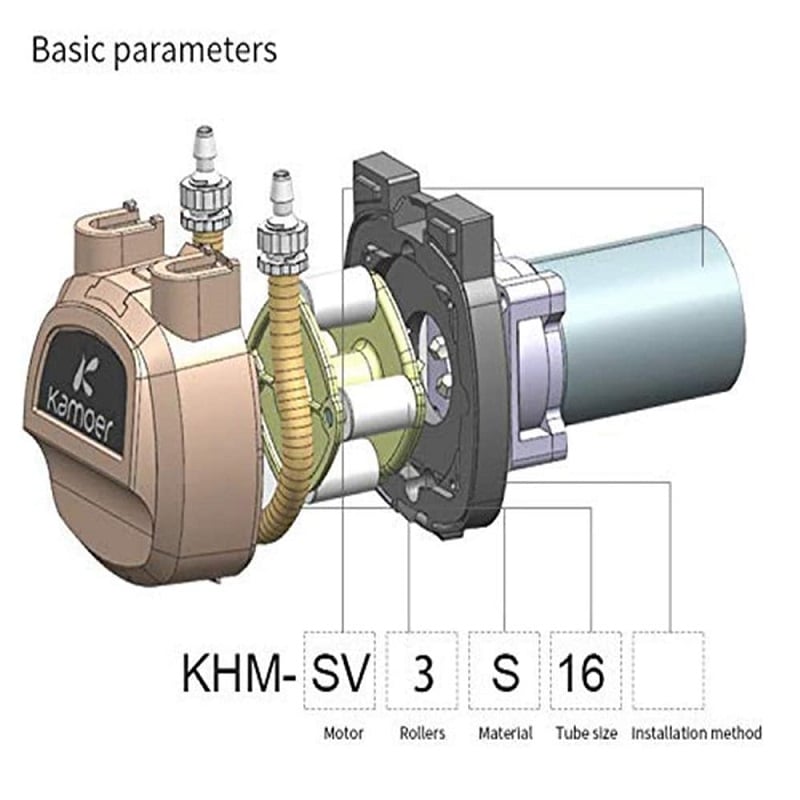

11. Transmission mode: planetary gear transmission, reduction ratio 1:8

12. Pump head: the upper cover is made of engineering plastics, the pump body

13. PA and gears are made of synthetic engineering plastics

14. Installation method: Straight plate and L plate

Specification:

1. Motor: DC motor
2. Voltage: 24V

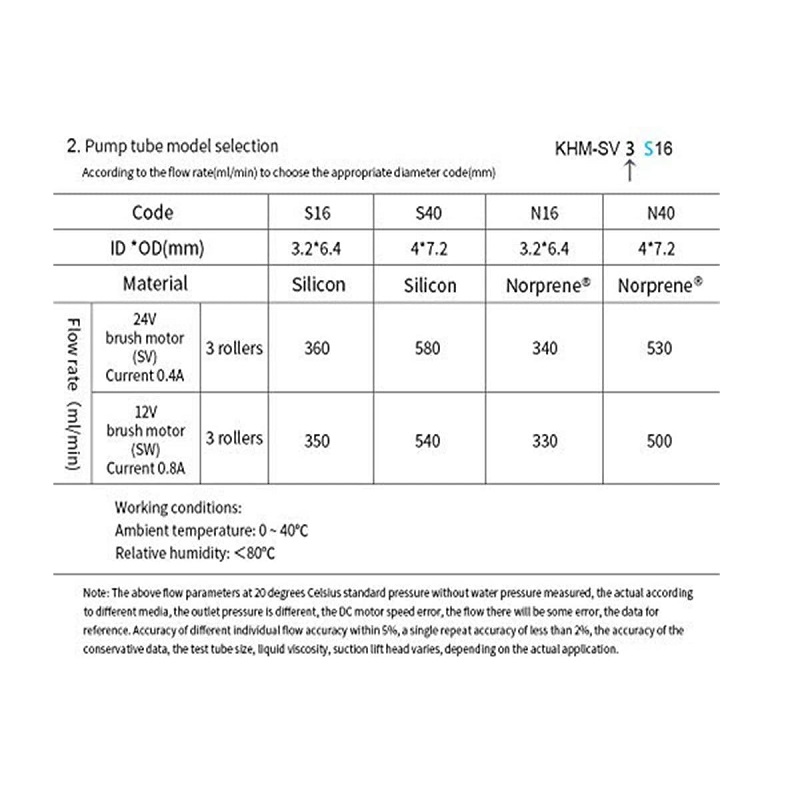

3. Flow: 24V 340-580 ml/min
4. Tube: Norprene tube/Silicone tube

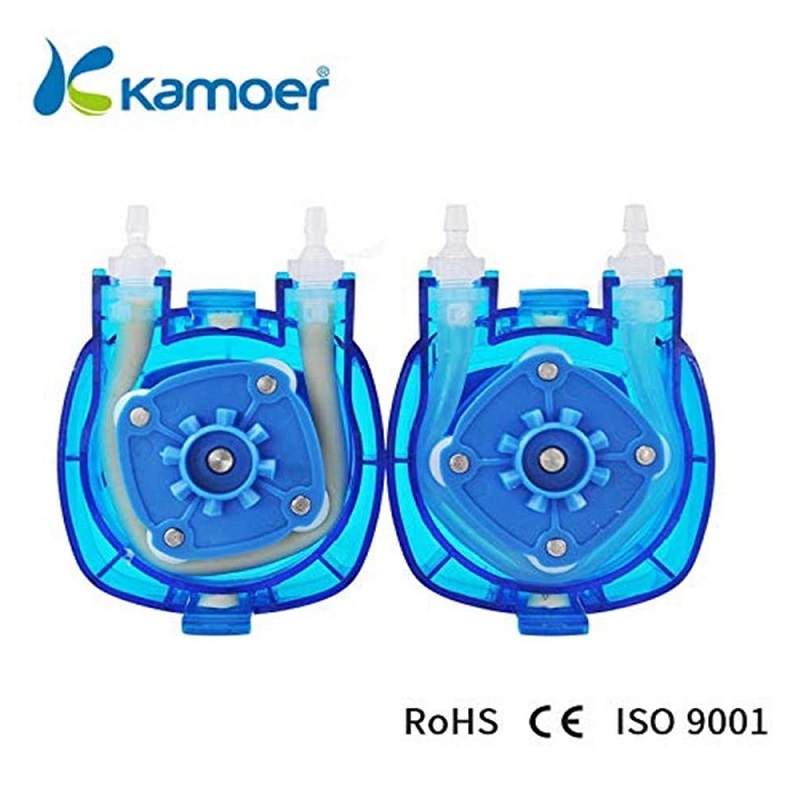

5. Rotor: 3 rotors
6. Pump head: Engineering plastics
7. Pump body: PA

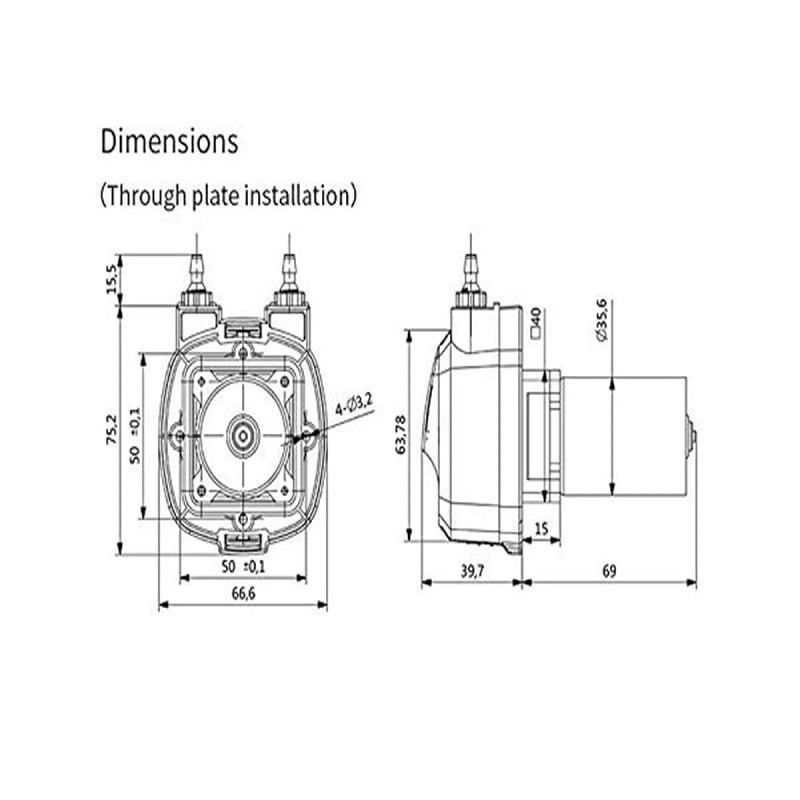

8. Installation method: Through plate fixation and L plate installation
9. Temperature: 0~40℃
10. Humidity: Less than 80%

Application:

1. Experiment
2. Filling packaging
3. Laboratory
4. Research institutes
5. Food industry

Package Includes:

1 x KHL-SZS35 Kamoer Pump 24V Stepper Motor(sz) 1.8A-1800ml(350RPM)

It can be used on a variety of Kamoer mini pumps, like peristaltic pumps, metering pumps, and titrimetric pumps. Buy from robu.in at our best prices

Features:

1. Nontoxic, odorless, low density, stiffness.
2. Good mechanical properties, apart from impact resistance, and other mechanical
3.  Properties are good than polyethylene, with good forming properties.
4. Hardness and heat resistance are superior to low-pressure polyethylene

Package Includes:

1 x One-way Valve – 3/16 Connector

It can be used on a variety of Kamoer mini pumps, like peristaltic pumps, metering pumps, titrimetric pumps.

Features:

1. Nontoxic, odorless, low density, stiffness.
2. Good mechanical properties, apart from impact resistance, and other mechanical
3.  Properties are good than polyethylene, with good forming properties.
4. Hardness and heat resistance are superior to low-pressure polyethylene

Package Includes:

1 x L Type – 1/4 Connector

It can be used on a variety of Kamoer mini pumps, like peristaltic pumps, metering pumps, and titrimetric pumps.

Features:

1. Nontoxic, odorless, low density, stiffness.
2. Good mechanical properties, apart from impact resistance, and other mechanical
3.  Properties are good than polyethylene, with good forming properties.
4. Hardness and heat resistance are superior to low-pressure polyethylene

Package Includes:

1 x One-way Valve – 5/32 Connector

It can be used on a variety of Kamoer mini pumps, like peristaltic pumps, metering pumps, and titrimetric pumps.

Features:

1. Nontoxic, odorless, low density, stiffness.
2. Good mechanical properties, apart from impact resistance, and other mechanical
3.  Properties are good than polyethylene, with good forming properties.
4. Hardness and heat resistance are superior to low-pressure polyethylene

Package Includes:

1 x One-way Valve – 1/4 Connector

It can be used on a variety of Kamoer mini pumps, like peristaltic pumps, metering pumps, titrimetric pumps.

Features:

1. Nontoxic, odorless, low density, stiffness.
2. Good mechanical properties, apart from impact resistance, and other mechanical.
3.  Properties are good than polyethylene, with good forming properties.
4. Hardness and heat resistance are superior to low-pressure polyethylene.

Package Includes:

1 x L Type – 1/16 Connector
