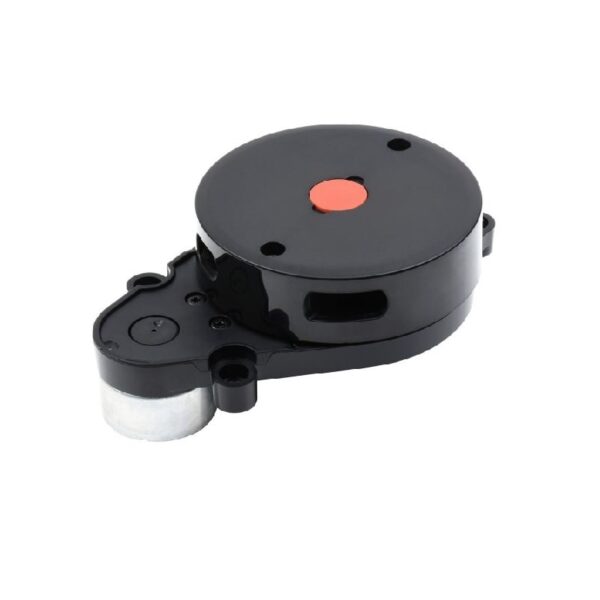

Description

With a thin and light structure design, while ensuring performance, it features a smaller size, lower power consumption, and easier installation, it can be adapted to different robot types

The omnidirectional sensor is the image sesor that can observe 360-degrees at a time. Surrounding scenery is reflected to the omnidirectional mirror, and it takes a picture of the image with the camera upward installed.

Applications:

1. Wide range of land management and planning efforts, including hazard assessment (including lava flows, landslides, tsunamis, and floods)
2. Forestry
3. Agriculture
4. Geologic mapping
5. Watershed and river surveys

Specifications:

1. Product: Omnidirectional Triangulation Lidar
2. Ranging Distance: 0.15 ~ 8.00 m
3. Ranging Average Accuracy: 5mm (< 1 m)1.5% of actual distance (1~6 m)2% of actual distance (6~8 m)
4. Scanning Frequency: 6 Hz
5. Scanning Angle: 360°
6. Ranging Frequency: 2300 Hz
7. Resolution: ˜ 20 mm
8. Wavelength: 75 ~ 793 nm (Typ 800)
9. Communication Interface: UART @ 115200
10. Power Supply: 5 V
11. Power Consumption: ˜ 1.3 W
12. Operating Current: 240 mA
13. Weight: 143 g
14. Operating Temperature: -10°C ~ 40°C
15. Lifetime: 1500+ hours
16. Dimensions: (L × W × H) 96.3 × 59.8 × 38.80mm

Packages Includes:

1 x LDROBOT 360° Omnidirectional Triangulation Lidar, 8m Radius Ranging
