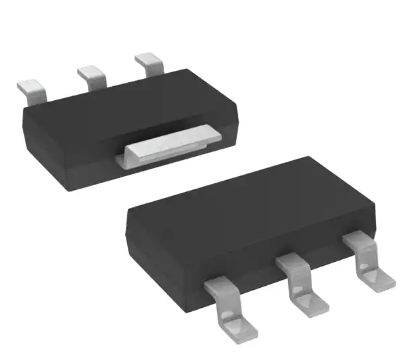

LM1117MPX-3.3 NOPB 800-mA 15-V linear voltage regulator IC

8.14 (Including tax)

Discount per Bulk Quantity

QuantityDiscountPrice
5 - 105%7.74 (Including tax)
11 - 208%7.49 (Including tax)
21 - 4010%7.33 (Including tax)
41 - 10012%7.17 (Including tax)

Out of stock

This product is currently sold out.

No worries! Enter your email, and we'll let you know as soon as it's back in stock.

  • fast delivery Fast Shipping

    Get the Priority Shipping on Prepaid Orders

Prepaid Orders

  • normal shipping Normal Shipping

    Get Normal Delivery (Surface) with Cash On Delivery

COD Orders

17 People watching this product now!
Description

It’s an LM1117MPX-3.3/NOPB 800-mA 15-V linear voltage regulator IC. The LM1117MPX-3.3/NOPB is a linear voltage regulator integrated circuit manufactured by Texas Instruments. It is a member of the LM1117 family of regulators, designed to provide a fixed output voltage of 3.3 volts. The LM1117MPX-3.3/NOPB is a low-dropout (LDO) regulator, meaning it can regulate the output voltage even when the input voltage is close to the desired output voltage. This makes it suitable for applications where the input voltage is not significantly higher than the desired output voltage. The IC provides thermal shutdown protection, which helps prevent damage from excessive heat. It also features built-in overcurrent and short-circuit protection, enhancing its reliability. The TO-252 (D-PAK) package is a widely used surface-mount package, allowing for easy integration onto printed circuit boards (PCBs) and providing good thermal dissipation.

Specifications
Package SOT-223
Mounting TypeSMD
Output Current 800 mA
Current 800 mA
Operating Temperature0°C to +125°C
No of Pins3
Output Voltage3.3 volts
Input Voltage 15
TypeRegulator IC
