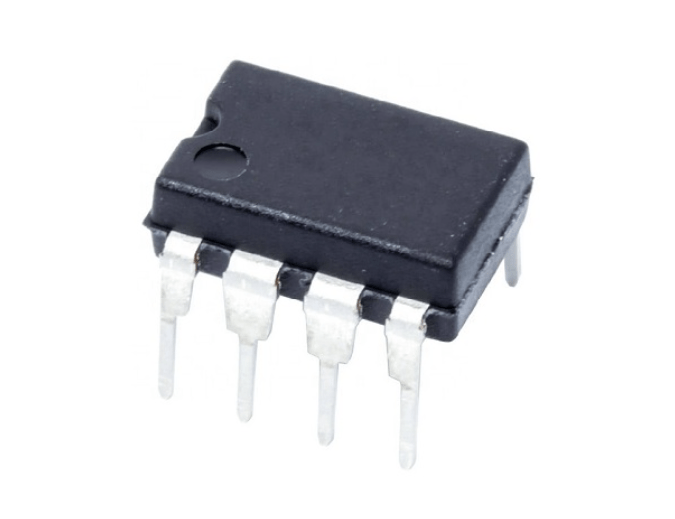

LM3842AN PWM Controller IC DIP-8 Package

0 Reviews
Out of stock

13.80 (Including tax)

Discount per Bulk Quantity

5 - 105%13.11 (Including tax)
11 - 2010%12.42 (Including tax)
21 - 4015%11.73 (Including tax)
41 - 10020%11.04 (Including tax)
  • Estimated delivery time 2-4 days
  • (Subject to stock Availability)

Product details

Its LM3842AN PWM Controller 8 DIP. They have few external components and were made specifically for DC-to-DC converter and Off-Line applications. These integrated circuits have a high current totempole output that is ideal for driving a power MOSFET‚ a temperature-compensated reference‚ a trimmed oscillator for precise duty cycle control‚ and a high gain error amplifier. Under-voltage lockout and current limiting are built-in features of the protection circuitry.


  • Automatic feed-forward compensation
  • it is Optimized for offline converter
  • It has Double pulse suppression
  • Current mode operation to 500kHz
  • High gain totem pole output
  •  Internally trimmed bandgap reference
Model LM3842AN
Package DIP-8
Mounting Type Through Hole
No of Pins 8
Output Voltage 6V
Type PWM Controller
