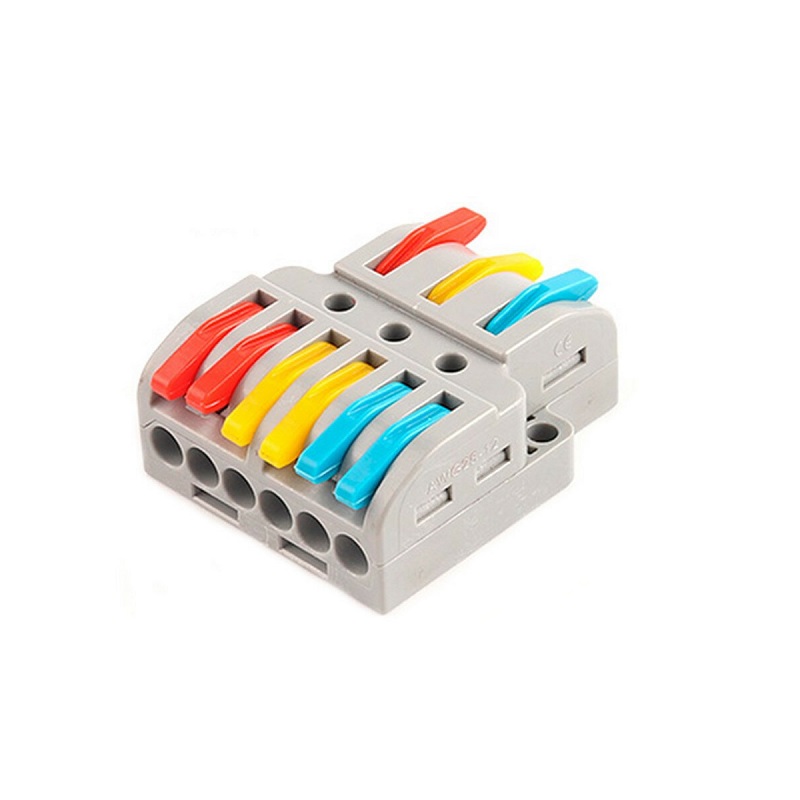

LT-633(SPL-63) Stationary, Type Quick Connection, Terminal

LT-633(SPL-63) Stationary Type Quick Connection Terminal:

It can be used to create the two-wire connection from two pair connections as shown in below Picture

PCT Spring Lever Connector contains a compact locking wire connector by a spring lever, which is used for single-strand hardwire with 0.08mm to 2.5mm² area or soft wire with 0.08mm to 4.0mm² area (or AWG28 to AWG12). This connector can tolerate the rated voltage up to 400V with an electric current peak of 32A, resulting in a maximum of 7KW Power. And the Stripping Length of the connector is 11-12 mm

These connectors are available with different optional models, different sizes, and No. pole on which cables are locked as below Click on it to buy according to your requirement.

• PCT-212 is a Two-wire connector
• PCT-213 is a Three-wire connector
• PCT-214 is a Four-wire connector
• PCT-215 is a Five wire connector
• PCT-218 is an Eight-wire connector
• CH-812 is a Two to Two-wire connector
• CH-813 is Three to Three wire connector
• CH-2-4 is a Four to Two-wire connector
• CH-2-6 is a Six to Two-wire connector
• PCT-223-8 Stationary Type Quick Connector
• LT-633(SPL-63) Stationary Type Quick Connector
• LT-933(SPL-93) Stationary, Type Quick Connector

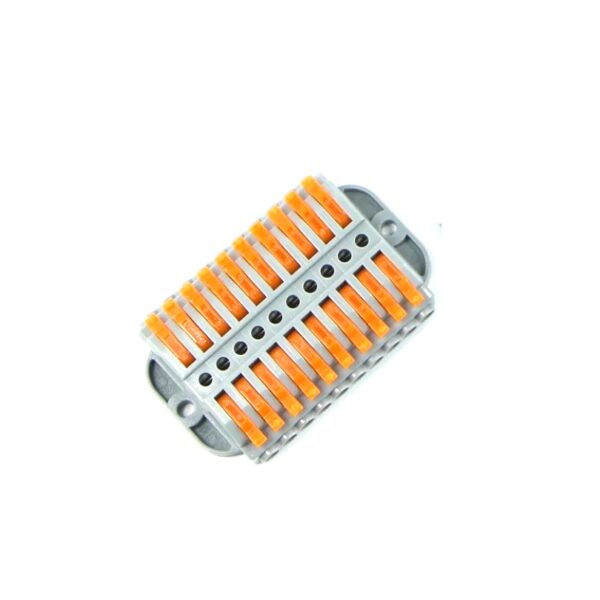

• PCT-223-10 Stationary Type, Quick Connector
• PCT-223-12 Stationary Type, Quick Connector
• PCT-223-3 Stationary Type Quick Connector
• PCT-223-4 Stationary Type Quick Connector
• PCT-224D Guide Rail Type, Quick Connector
• PCT-225D Guide Rail Type Quick Connector
• PCT-225(SPL-5) Quick Connector

Features:

1. High-grade Insulative Nylon Material
2. Strong Spring Locking Lever
3. Nickel Plated Metal Point Inside
4. Good Temperature Resistance
5. Compact Splicing Connector
6. 6:3 -Conductor Terminal Block
7. With Operating Levers
8. Max. Continuous Service Temperature 85°C

Package Includes:

1 x LT-633(SPL-63) Stationary Type Quick Connection Terminal
