Description

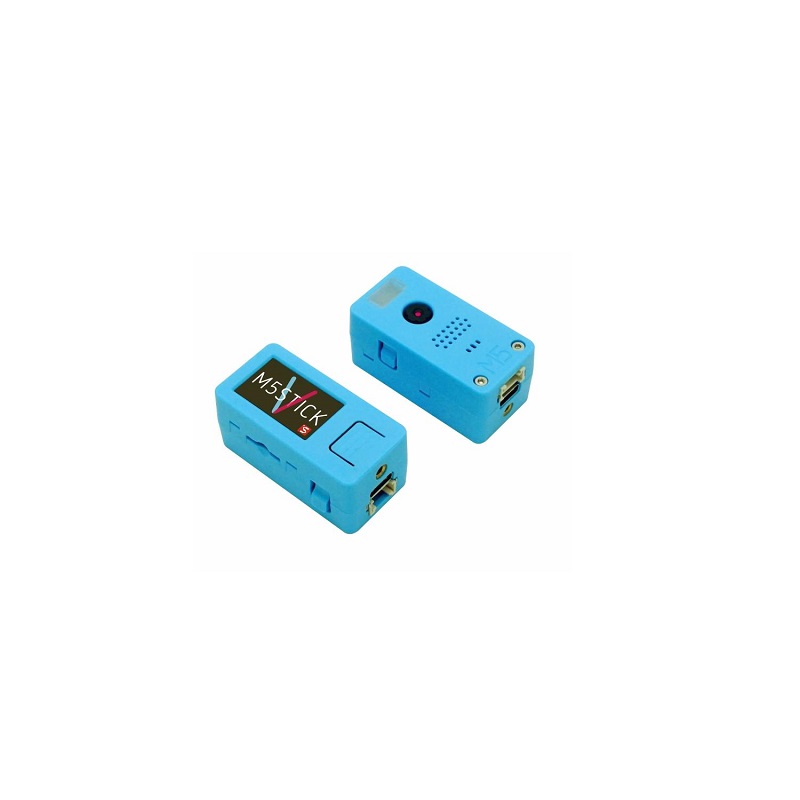

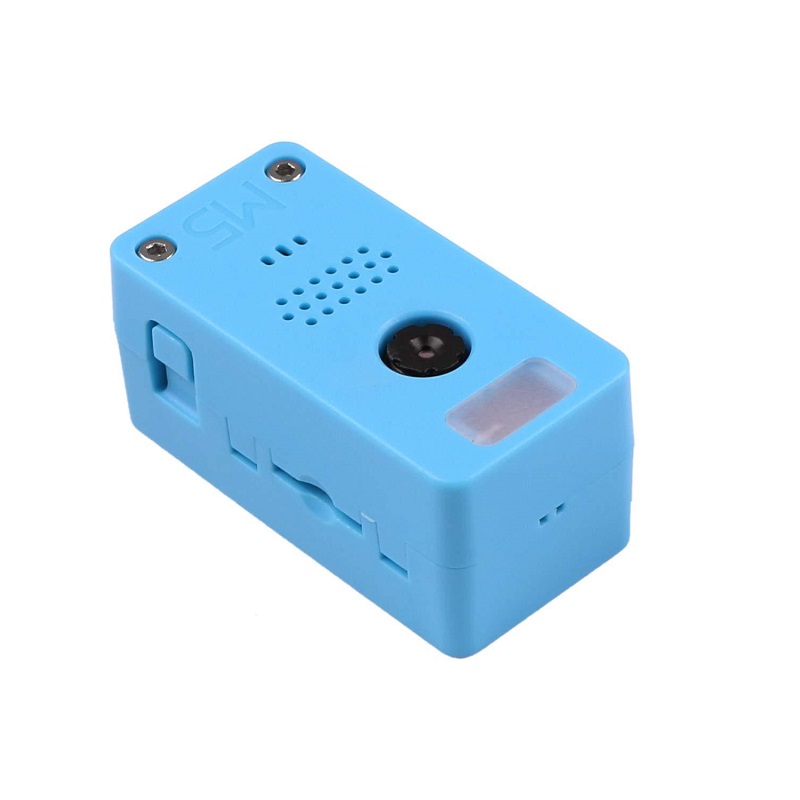

This is a M5StickV K210 AI Camera (Without Wifi).The new AIoT(AI+IoT) Camera powered by Kendryte K210 -an edge computing system-on-chip(SoC) with dual-core 64bit RISC-V CPU and advanced neural network processor.M5StickV AI Camera possesses machine vision capabilities, equips OmniVision OV7740 image sensor, adopts OmniPixel®3-HS technology, provides optimum low light sensitivity, supports various vision identification capabilities. In addition to an OV7740 sensor, M5StickV features more hardware resources such as a speaker with built-in I2S Class-D DAC, IPS screen, 6-axis IMU, 200mAh Li-po battery, and more.

It is able to perform convolutional neural network calculations at low power consumption, so M5StickV will be a good zero-threshold machine vision embedded solution. It is in support of MicroPython, which makes your code to be more concise when you use M5stick-V for programming.

Power switch operation：

Power on： Long press power button for 2 seconds

Power off： Short press power button for 6 seconds

Application:

1. Face recognition/detection
2. Object detection/classification
3. Obtaining the size and coordinates of the target in real-time
4. Obtaining the type of detected target in real-time
5. Shape recognition
6. Video/Display
7. Game simulator

Useful Link:

Features:

1. Dual-Core 64-bit RISC-V RV64IMAFDC (RV64GC) CPU / 400Mhz(Normal)
2. Dual Independent Double Precision FPU
3. Neural Network Processor(KPU) / 0.8Tops
4. Field-Programmable IO Array (FPIOA)
5. Dual hardware 512-point 16bit Complex FFT
6. SPI, I2C, UART, I2S, RTC, PWM, Timer Support
7. AES, SHA256 Accelerator
8. Direct Memory Access Controller (DMAC)
9. Micropython Support
10. Firmware encryption support
11. Case Material: PC + ABS

Package Includes:

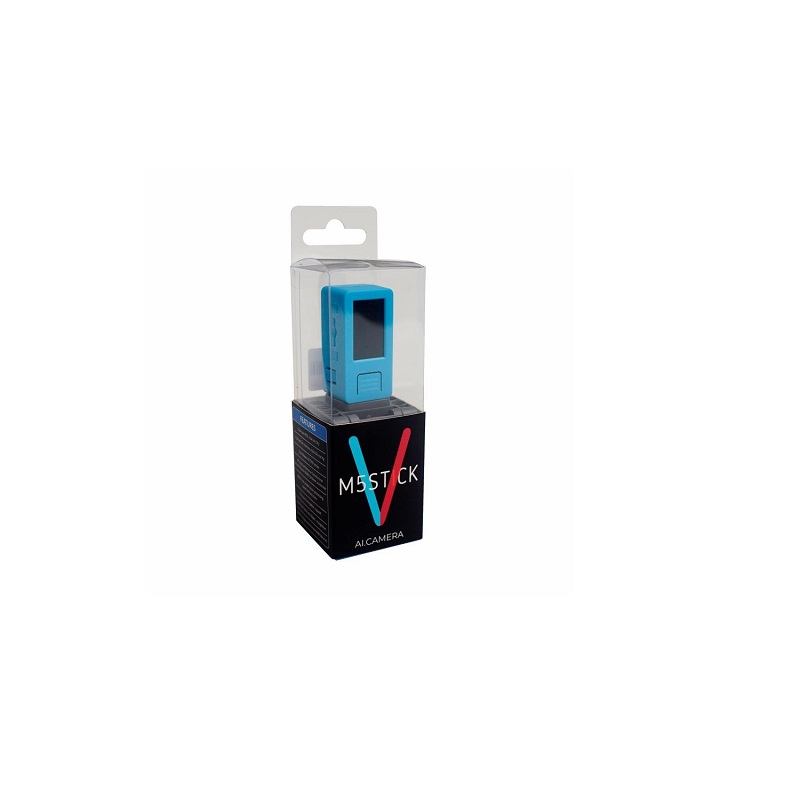

1 x M5StickV K210 AI Camera (Without Wifi)
