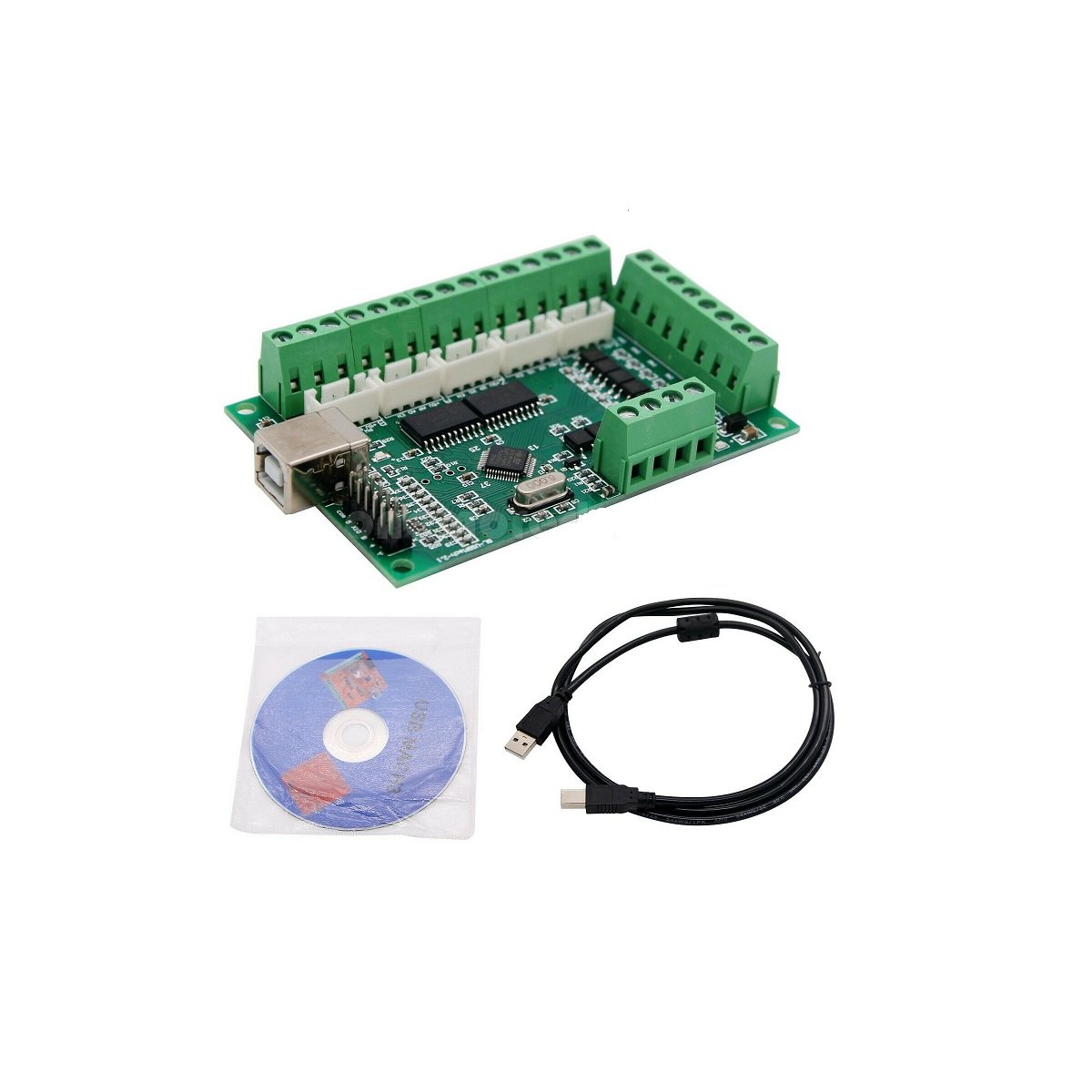

MACH3 V2.0 Engraving Machine Motherboard CNC 5- Axis+USB Cable+CD

SKU: rz24317227
In Stock

1,862.00

  1. Type:USB Interface Board
  2. Support: for MACH3 software

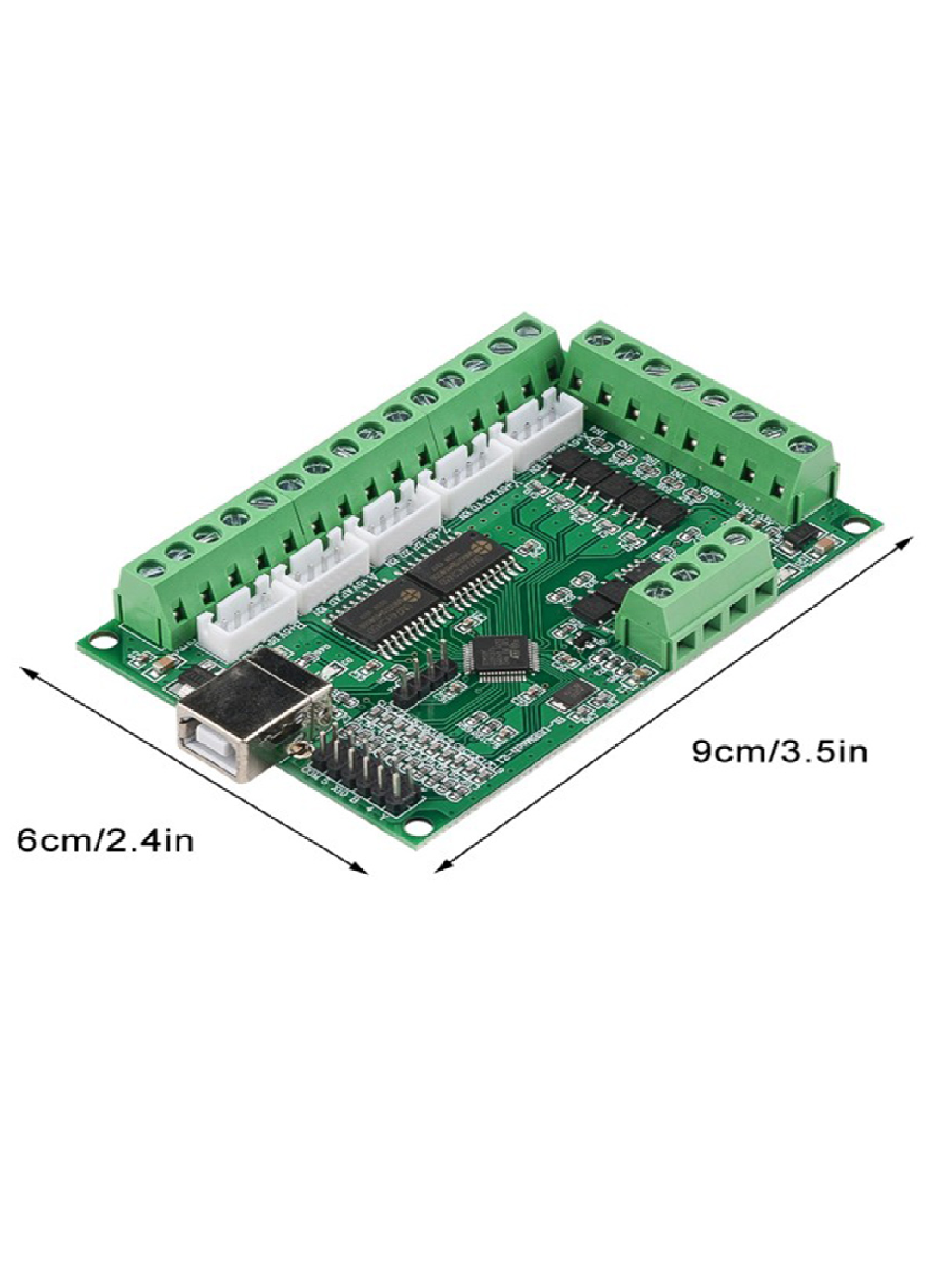

  3. Size: 9.8 x 6cm / 3.96 x 2.36in
  4. Weight: 145g
In Stock
Add to Wishlist
Add to Wishlist

Did you like this product? Add to favorites now and follow the product.

Add to Wishlist
Add to Wishlist
Have a Question? Ask a Specialist

+91-7231900002 Connect on Whatsapp

Low Prices

Price match guarantee

Guaranteed Fitment.

Always the correct part

In-House Experts.

We know our products

Easy Returns.

Quick & Hassle Free

Description

If you’re tired of needing a parallel port and an outdated PC to run Mach3, this is the solution you’ve been waiting for! Our newest interface board runs through any standard USB port for communication. You simply need to install the card’s plugin for Mach3 and follow the setup instructions.

This Mach3 USB Controller will run Mach3 through a standard USB port on a PC. You can use Windows 10 and older Windows version 32-bit or 64-bit.


Features:

  1. External wide voltage input, 12-24V, and anti-reverse function.
  2. Support various versions of MACH3 software and support the latest version.
  3. Support Windows XP, WIN7, WIN8, WIN10, support for 64-bit systems, support laptops, support for tablet computers.
  4. All input signals are separated by light, and emergency stop, knife set, limit, and zero return can be connected to ensure computer security. The input can be connected to a mechanical switch or a proximity switch (normally open with NPN).
  5. All the way through the optocoupler isolated 0-10V analogue voltage output, you can control the 0-10V analogue voltage input inverter, control the spindle speed.
  6. Provide PWM output (5V level), which can be connected to the spindle speed controller controlled by PWM.
  7. Provide 4 output ports (5V level), can be connected with the optocoupler relay module, control water cooling, spray and so on.
  8. Maximum 100KHZ output per axis can be connected to the common anode or common cathode, the input level is 5V, stepper or servo motor driver with optocoupler input (pulse + direction).
  9. At the same time provide a 5-axis interface cable socket (XH2.54), easy to connect

Connection Diagram:

H2aadb15509e740ee92c769d42d5c20b45 1 2


Package Includes:

1 x  MACH3 V2.1 Engraving Machine Motherboard CNC 5- Axis+USB Cable+CD

Additional information

DC Input Voltage Range (V)

12-24

Supports Software

MACH3 software

Connector Type

USB Interface Board

Length (mm)

9

Width (mm)

6.

Height (mm)

3

Weight (gm)

145
