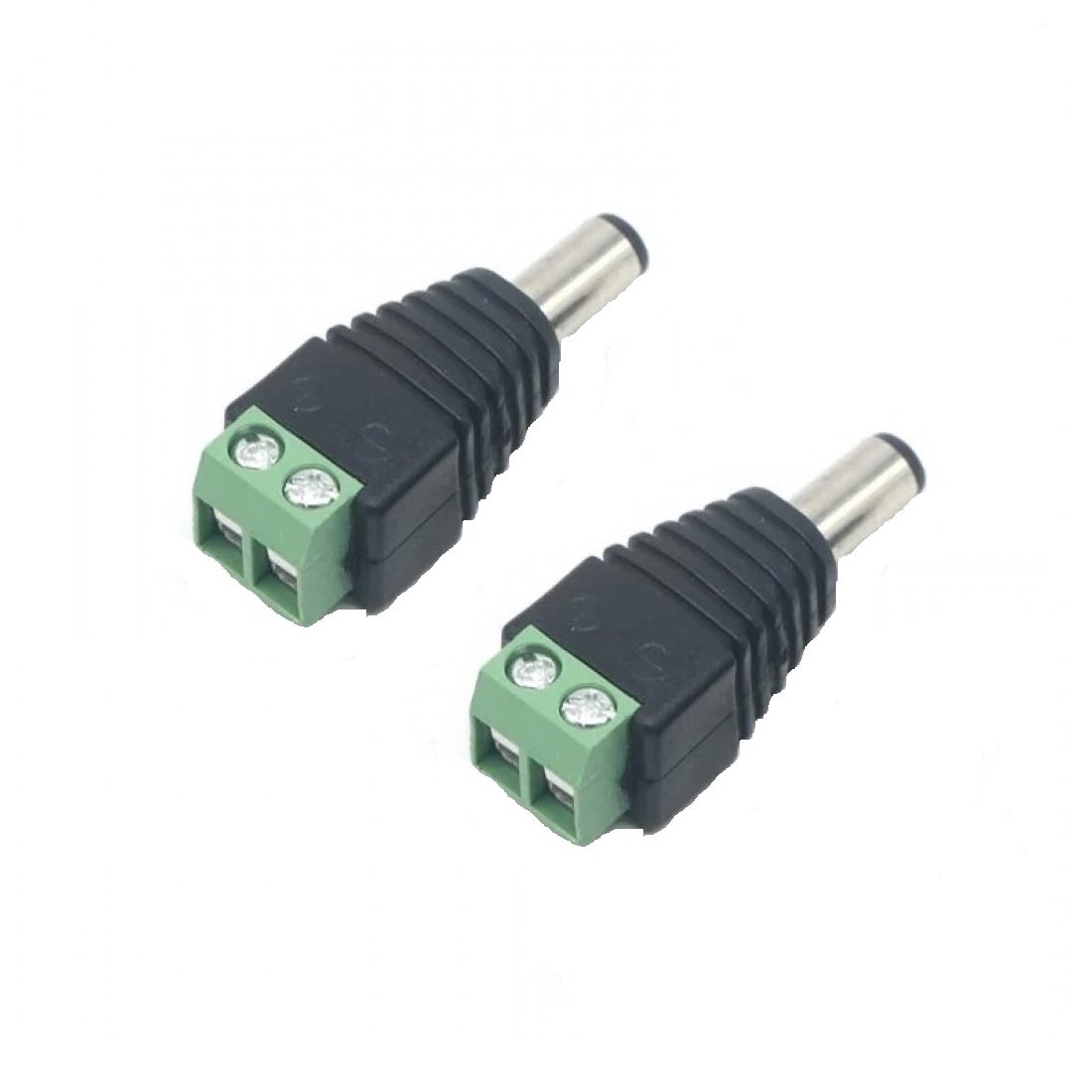

This is Male – Female 2.1×5.5mm DC Power Jack Adapter Connector Plug For CCTV Camera. Simple & Professional appearance for power cabling.

Easier for camera installation saves time and assures secure cable connection. No electrical tap, No splicing, no crimping, but only a small screwdriver.

Features:

1. It is a perfect solution for those who want to make custom power cable.
2. This CCTV Camera DC Power Connector will provide a great connection.
3. light Weight
4. Easy to comnnect

Specifications:

1. 2.1 x 5.5mm CCTV Camera DC Power Plug Connector.
2. DC Power Plug with plastic construction and strain relief.
3. This 2.1 x 5.5mm Power Plug features one power connector end DC plug male to another end terminal for CCTV camera connected.
4. The internal diameter of the plug: 2.1mm
5. The external diameter of the plug: 5.5mm

Packages Includes:

1 x Male 2.1 x 5.5mm for DC Power Jack, Adapter Connector Plug For CCTV, Camera (Pack of 2)

The HR10A series from Hirose(HRS) are low-cost push-pull coupling-type micro connectors. These are developed in response to customer needs for miniaturization, high density, and easy handling. The HR10 series connectors offer lightweight and assure high reliability, durability, and easy push-pull cycles. These connectors can be used in small-sized electronic equipment requiring high reliability. Simple and well-designed connectors with a matte finish enhance the appearance of the equipment. The most compact HR10 series is as slender as a cigarette but fits every application with a well-balanced and simplified layout in limited space. Five key system permits only one way of coupling so that you can find right position to connect even when blind mating.

Features:

1. Plug, jack, and receptacle shell type
2. The number of contacts varies from 4 to 20
3. Current rating of 2A
4. Operating temperature range -25°C to 85°C
5. The connector pin is located to avoid any damage which may be caused when blind mating
6. Space saving push-pull mechanism facilitates multi-installation of connectors
7. Easy wiring and mounting
8. Satin finished nickel plated zinc alloy and brass shell
9. Blue or black polyamide/PBT insulation
10. Silver or gold plated brass/bronze male terminal and beryllium/phosphor bronze female terminal

Specifications:

1. Male Terminal Material: Silver or gold plated brass/bronze
2. Female Terminal Material: beryllium/phosphor bronze
3. Number of contacts: varies from 4 to 20
4. Operating temperature range: -25°C to 85°C
5. Current rating: 2A

Package Includes:

1 x HR10A-7P-6S(73)-PLUG, SOCKET CNTS, PUSH-PULL,

Features:

The DG301-5.0-03P is a PCB terminal block manufactured by Degson and designed for use in electrical circuits. It features a screw connector with wire protection, allowing for secure and reliable connections. The terminal block has a pitch of 5.0mm, which is the distance between adjacent terminals. This pitch size is suitable for a variety of applications.

The terminal block is rated for a maximum current of 17.5A and a maximum voltage of 250V. The voltage rating is classified as III/2, indicating that it is suitable for use in circuits with overvoltage category III and pollution degree 2. This makes it ideal for use in industrial environments where the electrical equipment may be subjected to high levels of electrical noise or contamination.

The cross-sectional area of the wire that can be accommodated by this terminal block is 1.5mm². The contact surface is made of tin, which provides good conductivity and resistance to corrosion. The terminal block is colored blue for easy identification.

Features:

1. Screw connector with wire protection: The terminal block features a screw connector that provides a secure and reliable connection for wires. The wire protection helps prevent damage to the wire during installation and use.
2. Pitch size: The pitch size of the terminal block is 5.0mm, which is suitable for a wide range of applications.
3. Current and voltage ratings: The terminal block is rated for a maximum current of 17.5A and a maximum voltage of 250V. This makes it suitable for use in a variety of electrical circuits.
4. Overvoltage category and pollution degree: The terminal block is classified as III/2, indicating that it is suitable for use in circuits with overvoltage category III and pollution degree 2. This makes it ideal for use in industrial environments where the electrical equipment may be subjected to high levels of electrical noise or contamination.
5. Wire size compatibility: The terminal block is designed to accommodate wires with a cross-sectional area of 1.5mm².
6. Contact surface: The contact surface of the terminal block is made of tin, which provides good conductivity and resistance to corrosion.
7. Color: The terminal block is colored blue for easy identification.

Specifications:

1. Model number: DG301-5.0-03P
2. Connector method: Screw connector with wire protection
3. Pitch size: 5.0mm
4. Rated voltage: 250V (III/2)
5. Rated current: 17.5A
6. Wire size compatibility: 1.5mm²
7. Contact surface material: Tin
8. Color: Blue
9. Number of positions: 3
10. Mounting type: Through-hole
11. Operating temperature range: -40°C to +105°C

Package Includes:

1 x Degson 3 Pin 5 mm PCB Terminal Block

The HR10A series from Hirose(HRS) are low-cost push-pull coupling type micro connectors. These are developed in response to customer needs for miniaturization, high density and easy handling. The HR10 series connectors offer lightweight and assure high reliability, durability, and easy push pull cycles. These connectors can be used in small-sized electronic equipment requiring high reliability. Simple and well-designed connectors with a matte finish enhance appearance of the equipment. The most compact HR10 series is as slender as a cigarette but fits every application with a well-balanced and simplified layout in limited space. Five key system permits only one way of coupling so that you can find right position to connect even when blind mating.

Features:

1. The connector pin is located to avoid any damage which may be caused when blind mating
2. Space saving push-pull mechanism facilitates multi-installation of connectors
3. Easy wiring and mounting
4. Satin finished nickel plated zinc alloy and brass shell
5. Silver or gold plated brass/bronze male terminal and beryllium/phosphor bronze female terminal

Specifications:

1. Plug, jack, and receptacle: shell type
2. The number of contacts varies: 4 to 20
3. Current rating: 2A
4. Operating temperature range: -25°C to 85°C
5. Insulation type Material: Blue or black polyamide/PBT insulation

Package Includes:

1 x HR10A-10P-12S(73)-PLUG, SOCKET CNTS, PUSH-PULL,

The PX0730/P is a 3-way front panel-mount Circular Connector with screw termination and pin contacts. This Buccaneer standard series plug mates with flexible cable connector and single hole fixing.

Features & Specifications:

1. Water and dustproof to IP68 when mated
2. Compact design
3. Positive locating keyways
4. Colour coded identification variants
5. Easy assembly

Package Includes:

1 x PX0730/P-Circular Connector, Buccaneer Standard Series, Panel Mount Plug, 3 Contacts, Screw Pin
