Product details

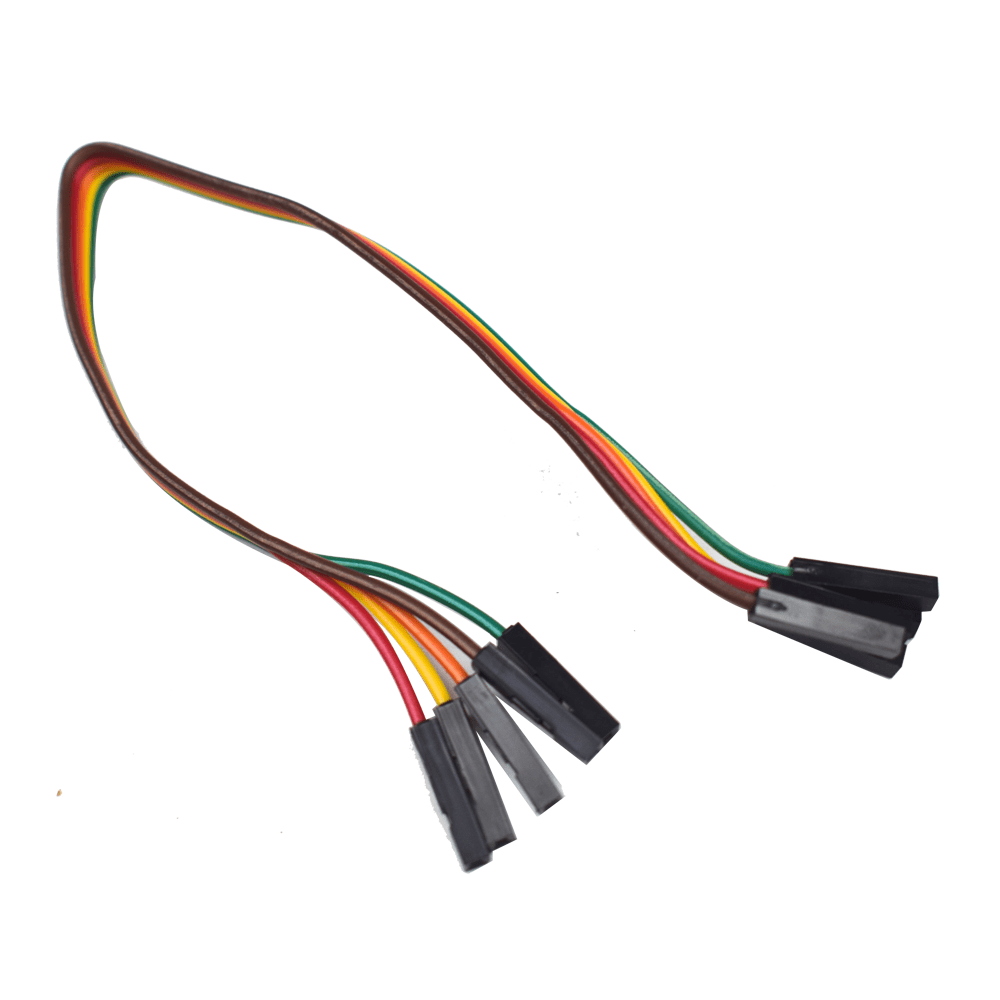

The MAX6675 Module with K-Type Thermocouple with 5 Pin Female-to-female wire. This MAX6675 Module with K Type Thermocouple Sensor Measure 1024°C Temperature sensor employs the MAX6675 K-Thermocouple to digital converter IC to provide a microcontroller compatible digital serial interface (SPI compatible) for accurate temperature compensated measurement of the supplied K-Type thermocouple sensor. It has a 12-bit resolution and can measure temperatures ranging from 0°C to 1024°C with a resolution of 0.25°C (the maximum temperature of the supplied sensor is 450°C).
Features:
- K-type temperature probe.
- Simple SPI serial output temperature.
- High impedance differential inputs.
Specification
| Model | Max6675 Module |
| Type | Thermocouple Sensor |
| Thermocouple | K-Type |
| Operating Voltage | 5V |
| Operating Current | 50mA |
| No. of Pins | 5 Pin with 2 Terminals |
| Temperature Range | 0°C to 1024°C |
| Module Dimension | 32.4mm*16mm*13.6mm |
| K-Type Thermocouple Cable Length | 35cm |
| Cold Junction Compensation Range(°C) | -20 to +80 |
| Country of Origin | China |
