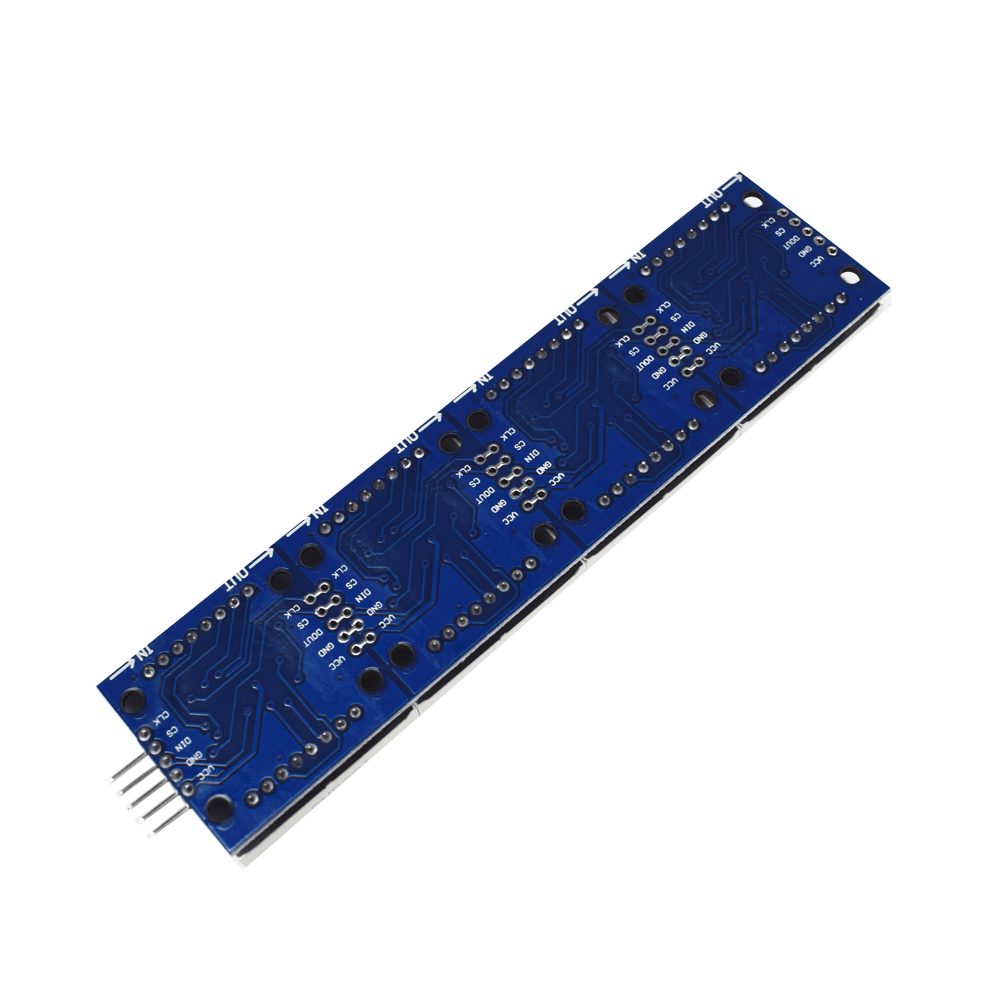

MAX7219 Dot Led Matrix 4 in 1 Display Module with 5 Pinout

430.17 (Including tax)

Discount per Bulk Quantity

QuantityDiscountPrice
5 - 105%408.66 (Including tax)
11 - 208%395.75 (Including tax)
21 - 4010%387.16 (Including tax)
41 - 10012%378.54 (Including tax)

Out of stock

This product is currently sold out.

No worries! Enter your email, and we'll let you know as soon as it's back in stock.

  • fast delivery Fast Shipping

    Get the Priority Shipping on Prepaid Orders

Prepaid Orders

  • normal shipping Normal Shipping

    Get Normal Delivery (Surface) with Cash On Delivery

COD Orders

10 People watching this product now!
Description

MAX7219 is a 4-in-1 display that may be used in a variety of ways. The individual module has 8×8 LEDs, each of which is controlled very precisely by the MAX7219 driver to produce the desired pattern. The advantage of employing this is that users would be able to control all 64 LEDs by simply attaching three output communication wires to microcontrollers such as Arduino. It’s a simple four-wire serial interface that can connect to most microprocessors. Each piece of data can be addressed separately, eliminating the need to update all displays at the same time. The MAX7219 additionally gives the user the option of encoding or not encoding each piece of data.

Features:-

  • Driver IC used MAX7219
  • 5V Input Voltage
  • Max. Operating Current: 320mA
  • Red Colour LED
  • Requires only 3 communication wires of MCU
  • Very compact size
  • The PCB features M3 holes for mounting.

Pinout:-

  • VCC
  • GND
  • DIN
  • CS
  • CLK

Package Includes:-

  • 1 x 4-in-1 Dot LED Matrix Module
  • 1 x 5 Pin Female to Female Connecting Wire
Specification
ProductMAX7219 Dot Led Matrix 4 in 1 Display Module
TypeLED Dot Matrix
No. of 8×8 LED Dot Matrix Display Integrate04
Driver ChipMAX7219
LED ColourRED
Module Pinout05
Operating Voltage5V DC
Dimension (mm)127x32x11mm
MakeMake in India
Country of OriginChina
