Maxbotix MB7566-100 SCXL-MaxSonar-WRL Ultrasonic Sensor
₹18,299.00
- Product: Maxbotix MB7566-100 SCXL-MaxSonar-WRL Ultrasonic Sensor
- Operates from 2.7-5.5V
- Low 68mA average current requirement
- The maximum range of 10 meters (394 inches)
- 42kHz ultrasonic sensor measures the distance to objects
Did you like this product? Add to favorites now and follow the product.
+91-7231900002 Connect on Whatsapp
Description
Features of the weather-resistant MB7566, SCXL-MaxSonar-WRL, include reduced impact of condensation and frost when ran continuously in closed or high-moisture environments, millimeter resolution, short to long distance detection, range information from 500mm to 9999 mm for the nearest detectable target, a 0.6Hz read rate, and various output options: pulse-width, analog voltage, and RS232 serial.

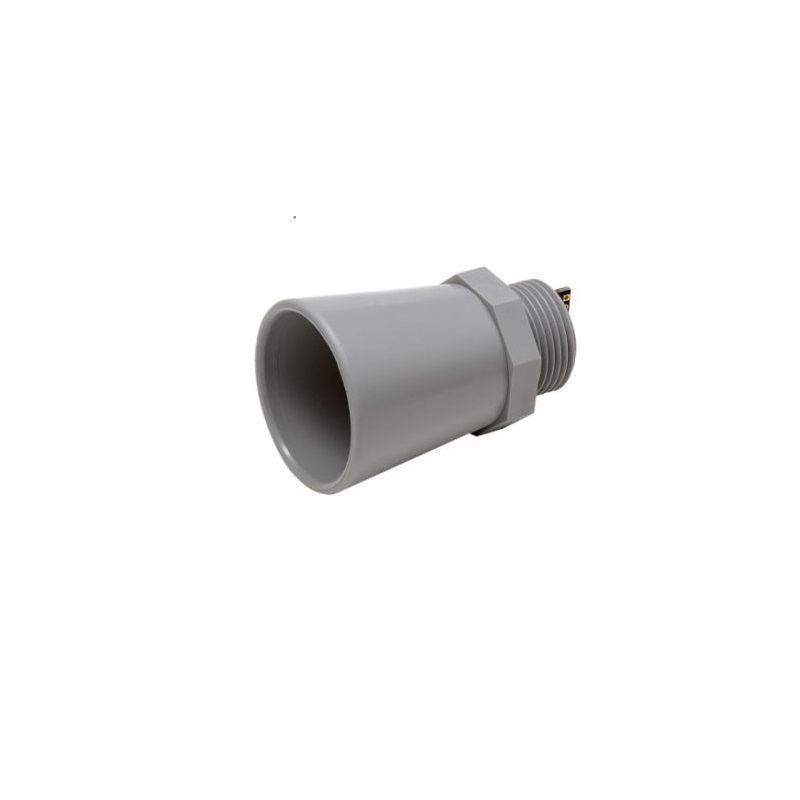

The MB7566 from the SCXL-MaxSonar-WR line of outdoor sensors is a rugged ultrasonic sensor component module. This sensor comes in a compact and robozarst PVC housing that meets the IP67 water intrusion standard and matches standard electrical 3/4‑inch PVC pipe fittings.
Note: For more technical details go through Datasheet in the attachment sections
Features:
- The long, narrow detection zone
- The small, lightweight module
- Designed for easy integration into your project or product
- Real-time automatic calibration (voltage, humidity, and ambient noise)
- Firmware filtering for excellent noise tolerance and clutter rejection
- Weather resistant (IP67), optional chemical resistant F-Option
Package Includes:
1 x Maxbotix MB7566-100 SCXL-MaxSonar-WRL Ultrasonic Sensor
Additional information
Resolution (mm) | 1 |
---|---|
Read Rate (Hz) | 0.57 |
Operating voltage (v) | 2.7-5.5 |
Average Current (mA) | 68 |
Weather Resistant | IP67 |
Operational temperature | -40°C to +65°C (-40°F to +149°F) |
