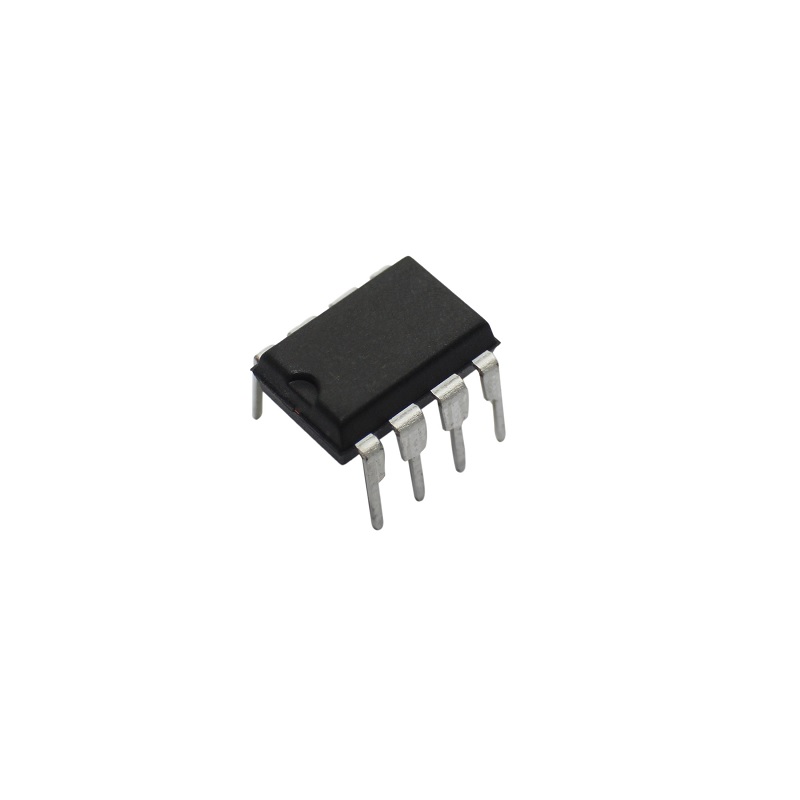

MCP4802-E/P 8 Bit Dual Voltage Digital to Analog Converter (DAC) with SPI Interface IC DIP-8 Package

₹405.75 (Including tax)

Fast Settling Time of 4.5 µs
Selectable Unity or 2x Gain Output
2.048V Internal Voltage Reference
50 ppm/°C VREF Temperature Coefficient
2.7V to 5.5V Single-Supply Operation
Extended Temperature Range: -40°C to +125°C

Discount per Bulk Quantity

Quantity	Discount	Price
5 - 10	5%	₹385.46 (Including tax)
11 - 20	8%	₹373.28 (Including tax)
21 - 40	10%	₹365.17 (Including tax)
41 - 100	12%	₹357.05 (Including tax)

Out of stock

This product is currently sold out.

No worries! Enter your email, and we'll let you know as soon as it's back in stock.

Fast Shipping
Get the Priority Shipping on Prepaid Orders

Prepaid Orders

Normal Shipping
Get Normal Delivery (Surface) with Cash On Delivery

COD Orders

Compare

Add to wishlist

11 People watching this product now!

SKU: rz24321450 Category: Interface ICs

Description

The MCP4802 device is dual 8-bit, 10-bit and 12-bit buffered voltage output Digital-to-Analog Converters (DACs), respectively. The devices operate from a single 2.7V to 5.5V supply with SPI-compatible Serial Peripheral Interface.

The device has a high precision internal voltage reference (VREF = 2.048V). The user can configure the full-scale range of the device to be 2.048V or 4.096V by setting the Gain Selection Option bit (gain of 1 of 2). Each DAC channel can be operated in Active or Shutdown mode individually by setting the Configuration register bits. In Shutdown mode, most of the internal circuits in the shutdown channel are turned off for power savings, and the output amplifier is configured to present a known high resistance output load. The devices include double-buffered registers, allowing synchronous updates of two DAC outputs using the LDAC pin. These devices also incorporate a Power-on Reset (POR) circuit to ensure reliable powerup. The devices utilize a resistive string architecture, with its inherent advantages of low DNL error, low ratiometric temperature coefficient, and fast settling time. These devices are specified over the extended temperature range (+125°C).

The device provides high accuracy and low noise performance for consumer and industrial applications where calibration or compensation of signals (such as temperature, pressure, and humidity) are required. The MCP4802/4812/4822 devices are available in the PDIP, SOIC, and MSOP packages.

Application:

SetPoint or Offset Trimming
Sensor Calibration
Precision Selectable Voltage Reference
Portable Instrumentation (Battery-Powered)
Calibration of Optical Communication Devices

Features:

MCP4802: Dual 8-Bit Voltage Output DAC
Rail-to-Rail Output
SPI Interface with 20 MHz Clock Support
Simultaneous Latching of the Dual DACswith LDAC pin

Package Includes:

1 x MCP4802-E/P 8 Bit Dual Voltage Digital to Analog Converter (DAC) with SPI Interface IC DIP-8 Package

Additional information

Input Voltage (V)	2.7~5.5
Input Current(uA)	415
Max Output Current (mA)	±25
Operating Temperature Range (°C)	-55 to 125
Storage condition (℃)	-65 to 150
Length (mm)	10
Width (mm)	6
Height (mm)	6
Weight (gm)	3
