MG90S 9g Servo Metal Gear

312.12 (Including tax)

  1. Dimensions: 23 x 12.2 x 29mm
  2. Operating Speed (4.8V no load): 0.11sec / 60 degrees
  3. Operating Speed (6.0V no load): 0.10sec / 60 degrees
  4. Stall Torque (4.8V): 2.0 kg/cm
  5. Stall Torque (6.0V): 2.5 kg/cm
  6. Temperature Range: 0 to 55 degree C
  7. Rotation angle: 360 °
  8. Dead Band Width: 15 Microsecond
  9. Operation Voltage: 4.8 – 6.0 Volts
  10. Recommend Model: Mini Car / Mini Ship /Helicopter & Airplane

Discount per Bulk Quantity

QuantityDiscountPrice
5 - 105%296.50 (Including tax)
11 - 208%287.14 (Including tax)
21 - 4010%280.89 (Including tax)
41 - 10012%274.66 (Including tax)

In stock (can be backordered)

  • fast delivery Fast Shipping

    Get the Priority Shipping on Prepaid Orders

Prepaid Orders

  • normal shipping Normal Shipping

    Get Normal Delivery (Surface) with Cash On Delivery

COD Orders

11 People watching this product now!
SKU: rz24317789 Category:
Description

Get your start in robotics and make things move! The MG90S is an upgrade of the SG90 with even more torque and speed than ever. It also has metal gears which means when the motor is in a jam, the gears aren’t likely to strip. And as a digital servo using a high-speed pulse train, a more detailed configuration is allowed.

You can expect this micro servo to rotate up to 90 degrees. You can expect it to operate the same as standard versions, but this micro servo is much smaller and can fit into tighter spaces. Even though it has metal gears, this tiny little servo weighs only 13.4g, so a good choice for smaller projects.

Each servo comes with 3 arms and screws and with pre-soldered female wires. When using servos, we recommend using pin 9 or 10, a standard in the Servo library.

It’s easy to fry servos, make sure you plug it into your brain correctly.

PWM (Signal) is Orange

VCC (Power) is Red

GND (Ground) is Brown


Features:

  1. Durable metal gear design
  2. Recommended for 200-450 size helicopters or lightweight aircraft
  3. Different servo horns included for different application
  4. Lightweight  high strength nylon casing

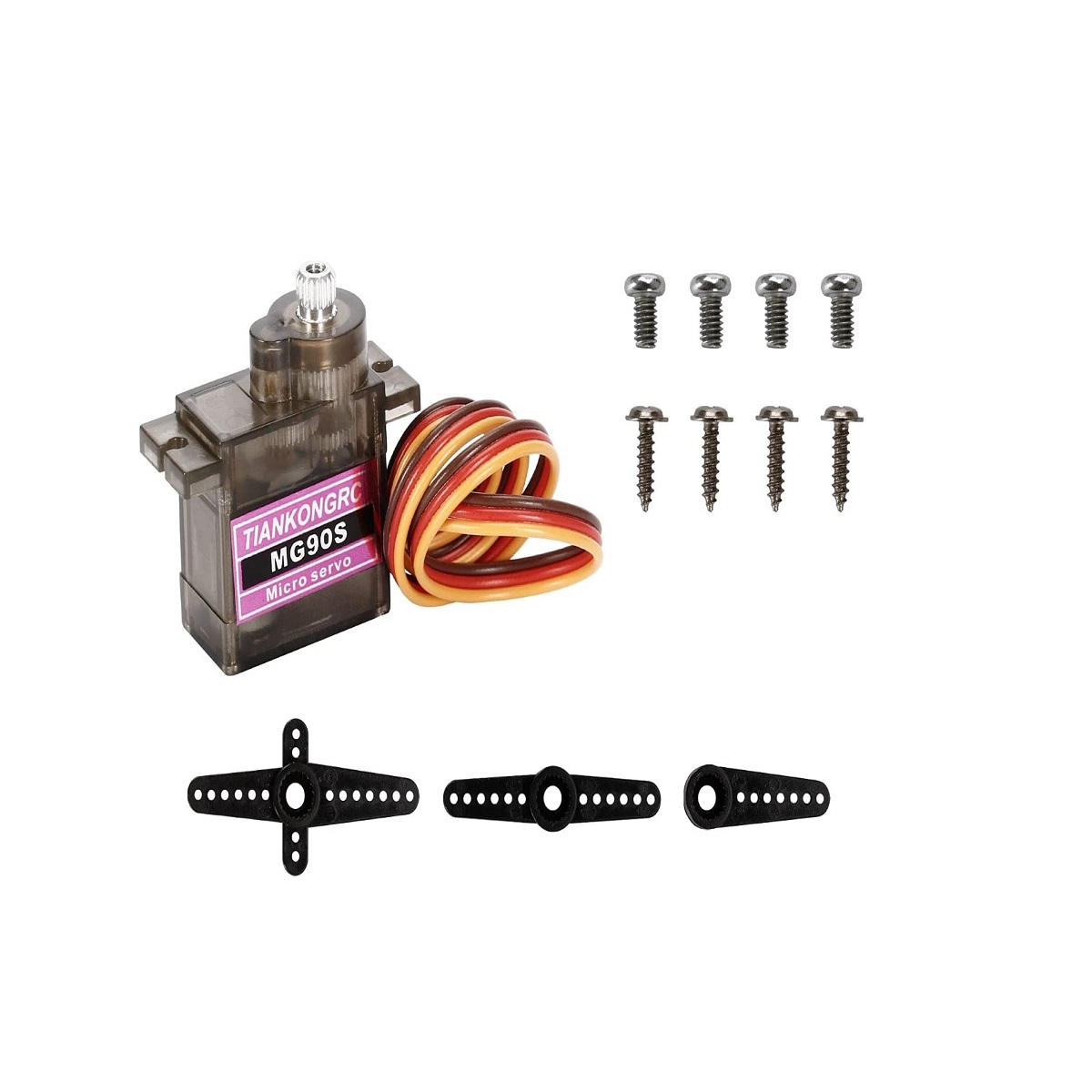

Package Includes :

1 x MG90S 9g Servo Metal Gear

Additional information
Model

MG90S 9g

Operating Voltage (VDC)

4.8 – 6.0 Volts

Operating Speed @4.8V

0.11sec / 60 degrees

Operating Speed @6.6V

0.10sec / 60 degrees

Stall Torque @ 4.8V (Kg-Cm)

2.0 kg/cm

Stall Torque @6.6V (Kg-Cm)

2.5 kg/cm

Operating Temperature (°C)

0 to 55 degree C

Rotational Degree

360º
