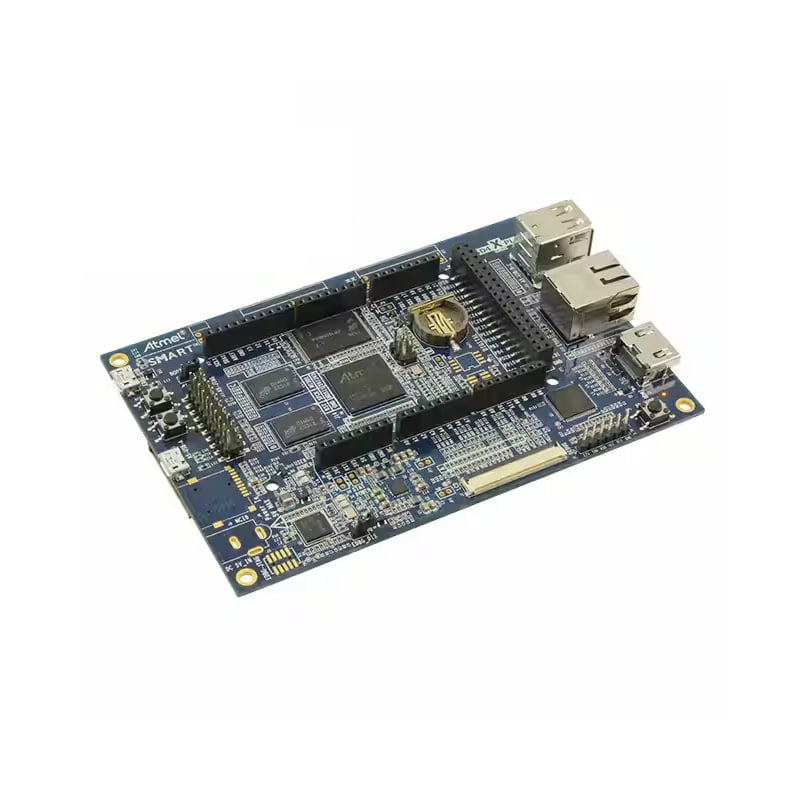

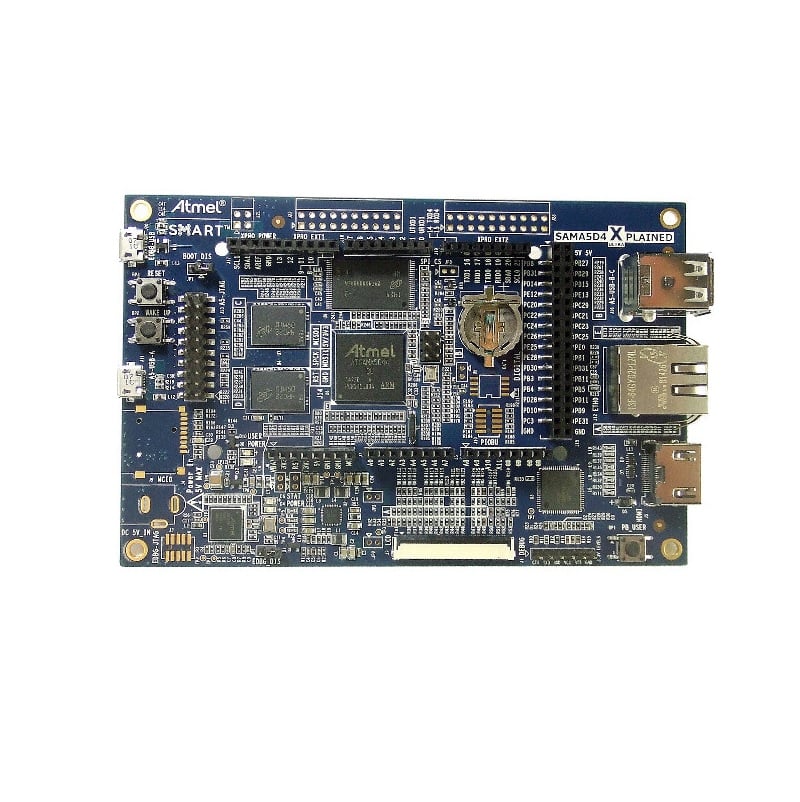

MICROCHIP Evaluation Board, SAMA5D4 Xplained Ultra, Cortex-A5, SAMA5D4 MPU

13 People watching this product now!

SKU: rz2435994 Category: ARM Microcontroller

Description

Introducing the Atmel | SMART ARM-based SAMA5D4 Xplained Ultra demo board. This evaluation kit is a fast- prototyping and low-cost evaluation platform for Atmel’s SAMA5D4 Cortex®-A5-based microprocessor (MPU) design. You can download a Linux distribution from linux4sam.com that includes the Linux Kernel 3.10 with LTS (long-term- support). The build incorporates both Linux Mainline and Yocto support. An Android KitKat port will be available in December 2014 on http://www.AT91.com/android4sam. For bare-metal developers not using an operating system,
Atmel offers a complete C software package including many examples to get you started fast. The board comes with an HDMI port and a rich set of ready-to-use connectivity and storage peripherals. There are expansion headers for easy customization, including the headers for Arduino Shields and Xplained Wings. You can use the USB device connector to power the board as well as to program and debug it. Last but not least, the SAMA5D4
Xplained Ultra embeds a unique MAC address and serial number which will ease the connection to an Ethernet network.

Operating at 840DMIPS (Dhrystone MIPS), the SAMA5D4 MPU is ideal for any high-performance, secure and cost- sensitive industrial application. High performance computing needs are supported by ARM NEON™ and a 128kB L2 cache which increases the overall system performance. The SAMA5D4 is an ideal fit for low-cost user interface (UI) applications that require video playback. The high-grade security features allow you to protect any system against counterfeiting or software theft, while enabling secure data storage and transfer.

Not: For more info refer to datasheet in attachment section

Features:

Small size, easy to use & high performance
Advanced Security Features
Low voltage, low power consumption.
Enhanced User Interfaces
Best for DIY projects

Packages Includes:

1 x MICROCHIP Evaluation Board, SAMA5D4 Xplained Ultra, Cortex-A5, SAMA5D4 MPU

Additional information

Microprocessor	SAMA5D44 Cortex-A5
Memory	1 EEPROM with a unique MAC address and serial number , 512MBytes DDR2 memory , 512MBytes NAND Flash memory
Connectors	LCD connectors One HDMI connector Three USB connectors (2 Host and 1 Device)
Ethernet	10/100 Ethernet MAC with PHY and connector
MicroSD slots	1x SD/eMMC 1x MicroSD slots
Compatible	Arduino R3 Shield and Xplained Wing compatible expansions headers
