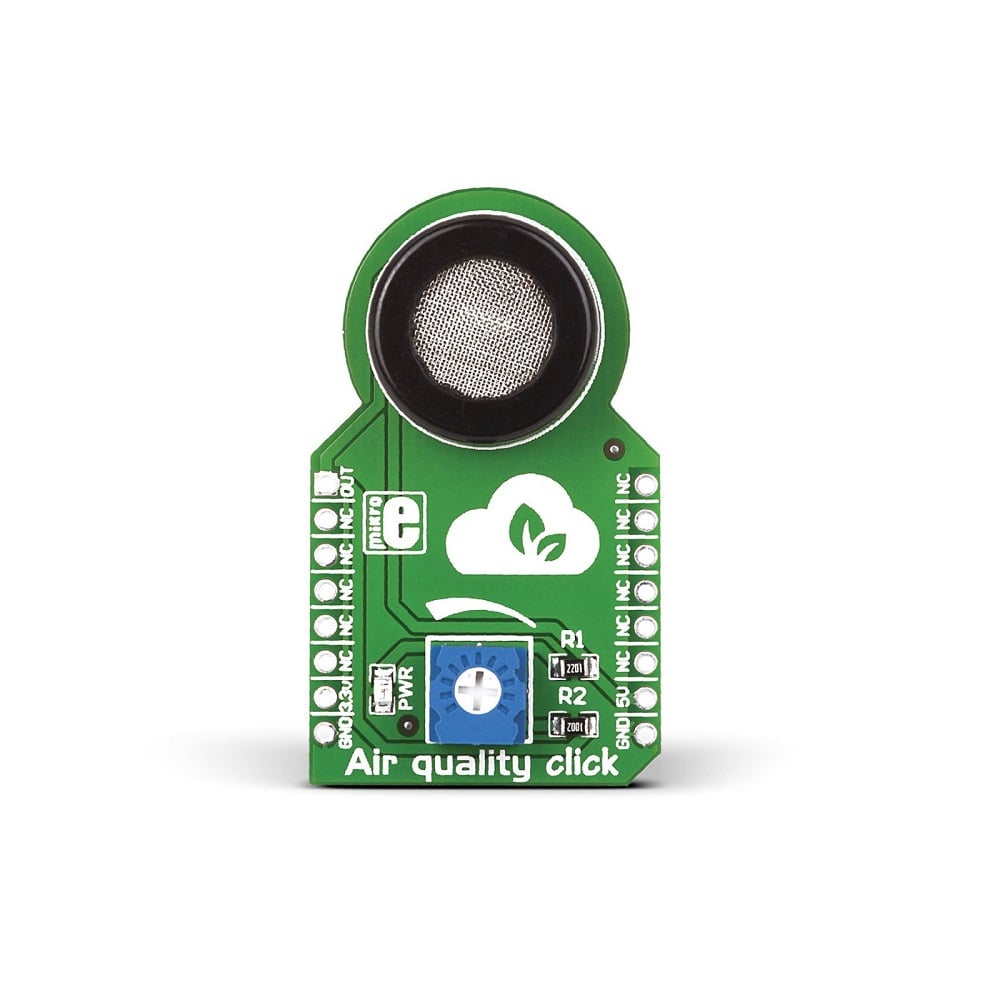

Mikroe Air quality Click

13 People watching this product now!

SKU: rz24311638 Category: Gas and Dust Sensor

Description

Air quality click is a simple solution for adding a high sensitivity sensor for detecting a variety of gases that impact air quality in homes and offices. It carries an MQ-135 sensor. The click is designed to run on a 5V power supply. It communicates with the target microcontroller over the AN pin on the mikroBUS™ line.

Detecting gases

Air quality click is suitable for detecting ammonia (NH3), nitrogen oxides (NOx) benzene, smoke, CO2, and other harmful or poisonous gases that impact air quality. The MQ-135 sensor unit has a sensor layer made of tin dioxide (SnO2), an inorganic compound that has lower conductivity in clean air than when polluting gases are present.

Calibration potentiometer

To calibrate Air quality click for optimum performance, use the onboard potentiometer to adjust the load resistance on the sensor circuit.

Applications Air quality detection for homes and offices.

Specification and Features:

Type Air Quality, Gas
MQ-135 sensor
SnO2 gas sensing layer
Interface: AN
5V power supply
On-board modules MQ-135 sensor
Key Features Potentiometer for calibration
Interface Analog
Compatibility mikroBUS
Click board size M (42.9 x 25.4 mm)
Input Voltage 3.3V, 5V

Useful Links:

Click Boards
MikroBUS
Air Quality click example on Libstock
Air Quality Click User Manual
MQ-135 datasheet

Package Includes:

1 x Mikroe Air quality Click
