₹2,218.69 (Including tax)
Discount per Bulk Quantity
| Quantity | Discount | Price |
|---|---|---|
| 5 - 10 | 5% | ₹2,107.76 (Including tax) |
| 11 - 20 | 8% | ₹2,041.19 (Including tax) |
| 21 - 40 | 10% | ₹1,996.83 (Including tax) |
| 41 - 100 | 12% | ₹1,952.46 (Including tax) |
Out of stock
No worries! Enter your email, and we'll let you know as soon as it's back in stock.
Get the Priority Shipping on Prepaid Orders
Prepaid Orders
Get Normal Delivery (Surface) with Cash On Delivery
COD Orders

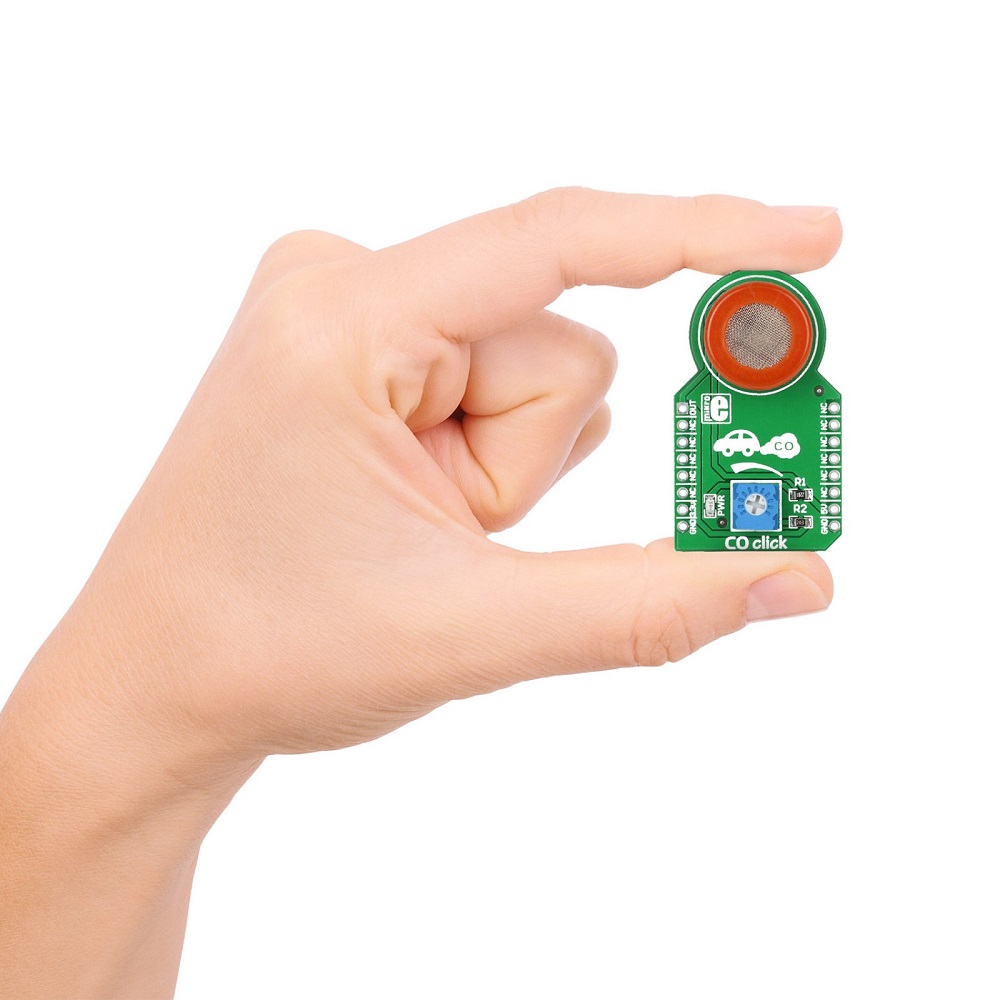

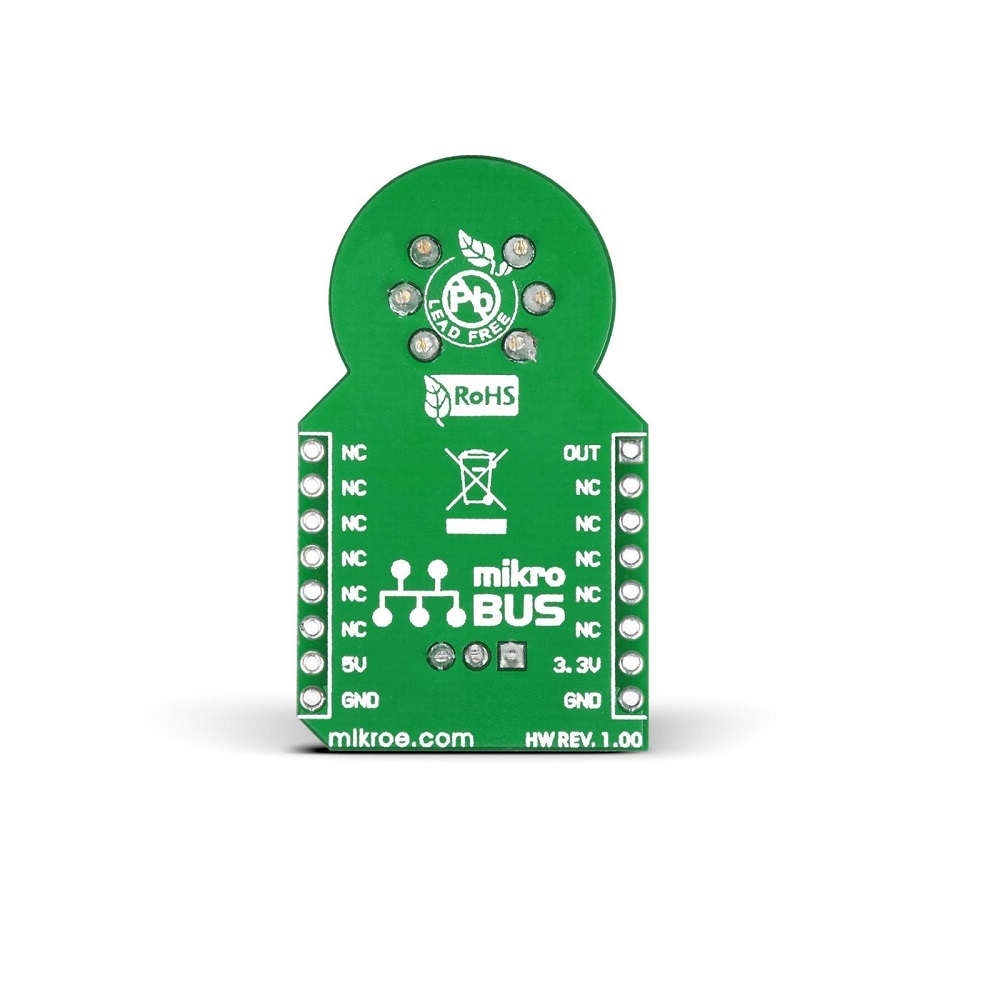

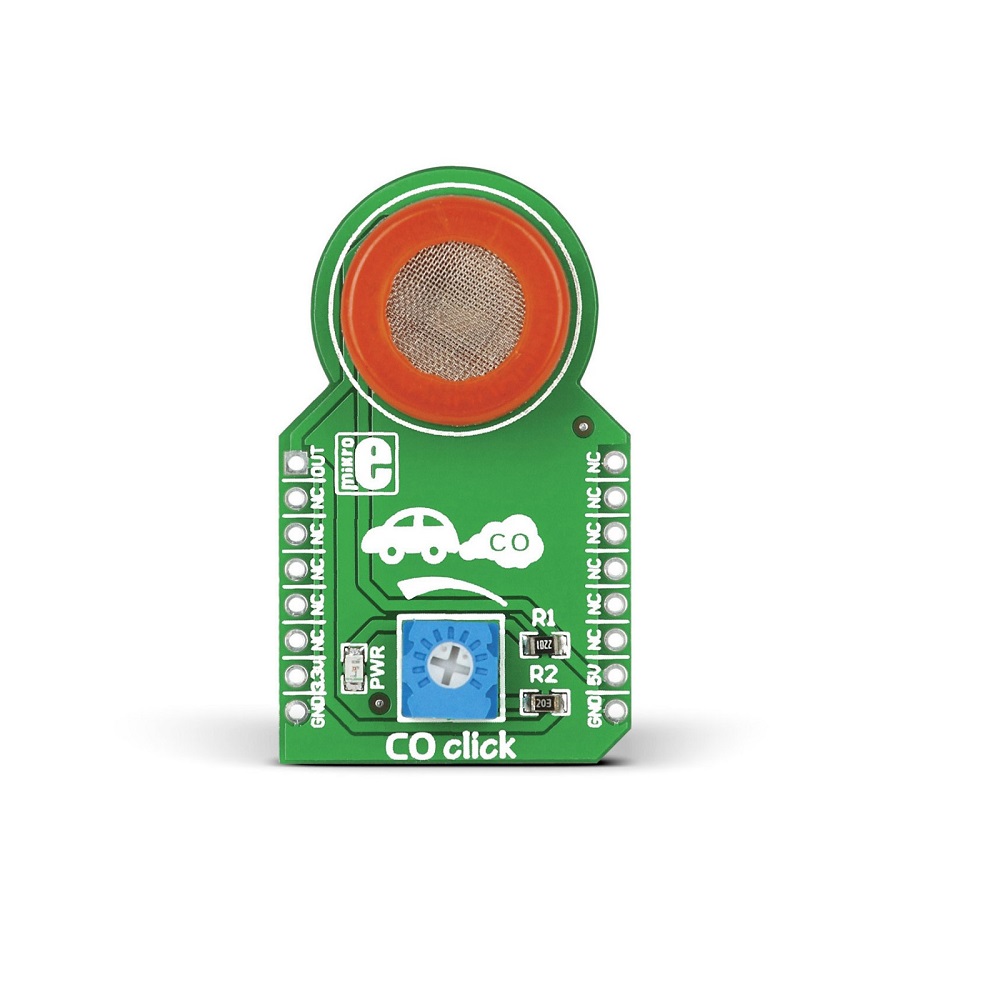

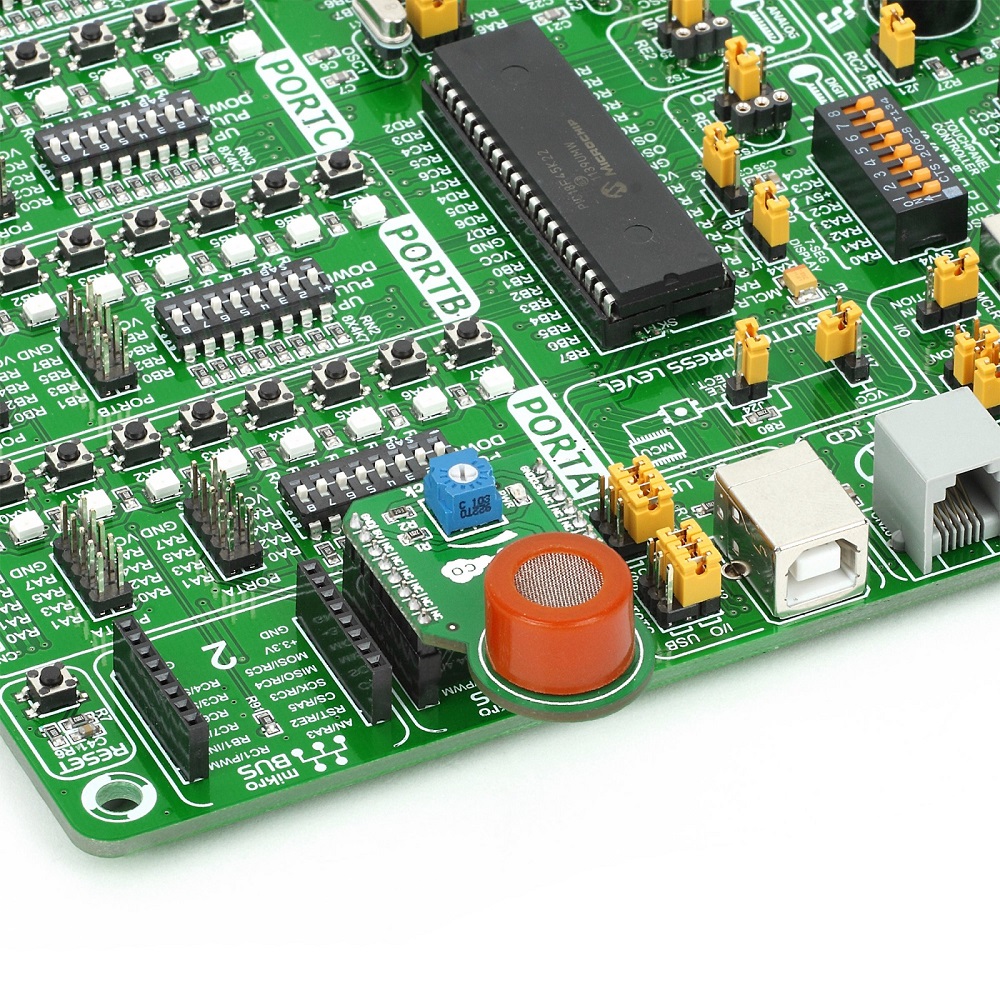

CO click carries the MQ-7 gas sensor with high sensitivity to carbon monoxide. The click is designed to run on a 5V power supply only. It communicates with the target microcontroller over the AN pin on the mikroBUS™ line. The board also features a calibration potentiometer, a mikroBUS™ host socket, two jumpers, and a power indicator LED.
MQ-7 sensor features
The MQ-7 sensor has a high sensitivity to carbon monoxide. The gas sensing layer on the sensor unit is made of Tin dioxide (SnO2), which has lower conductivity in clean air. The conductivity increases as the levels of Carbon monoxide rise. The detection range of the sensor is 20ppm-2000ppm of CO.
Useful Links:
1 x Mikroe CO Click
Only logged in customers who have purchased this product may leave a review.
Shipping and Delivery Policy
1. Shipping Process:
2. Shipping Charges:
3. Order Tracking:
4. Delivery Address:
5. Delivery Issues:
6. No Return Policy for Opened/Soldered Products:
7. Refund Policy:
Out of stock
| Detection Gas |
Oxygen concentration |
|---|---|
| Detection range |
0~100% |
| Working Pressure Range |
0.5~2.0Bar |
| Working Voltage |
3.3~5.5V DC |
| Output Signal |
I2C ,UART (0~3V) ,analog voltage |
| Lifespan |
>2 years (in air) |
| Working Humidity Range |
0-99% RH (non-condensing) |
| Working Temperature Range (°C) |
-20°C ~ +50°C |
| Product Dimensions |
32mm x 27mm/1.26 x 1.06 inch |
| Response Time ( μS) |
<5S |
| Mounting Holes Diameter (mm) |
inner diameter 3.1mm(0.12 inch)/outer diameter 6mm(0.24 inch) |
Out of stock
Out of stock
Out of stock
| Heater voltage |
5.0±0.2V DC |
|---|---|
| Circuit Voltage |
5.0±0.2V DC |
| Heater Current |
56±5mA |
| Minimum impedance between Pin#2,3 and GND |
2.5MΩ |
| Operating conditions |
0Ëš~40ËšC ,30~95%RH |
| Temperature differential between inside and outside detector casing |
≤10˚C max. (see NOTE 1) |
| Test gas conditions |
1250±100ppm iso-butane in air at 20˚±2˚C ,65±5%RH |
| Circuit conditions |
VH=5.0±0.05V DC VC=5.0±0.05V DC |
Out of stock
Out of stock
| Model No. |
TGS2602-B00 |
|---|---|
| Heater Voltage |
5.0±0.2V DC |
| Circuit Voltage |
5.0±0.2V DC |
| Heater power consumption |
280mW (typical) |
| Heater Current |
56±5mA |
| Sensing Principle |
MOS type |
| Heater Resistance |
approx 59Ω at room temp. (typical) |
| Load Resistance |
variable 0.45kΩ min |
| Sensor Resistance |
10kΩ ~ 100kΩ in air |
| Standard Package |
TO-5 metal can |
| Target Gases |
Air contaminants (VOCs ,ammonia ,H2S ,etc.) |
| Test Gas Conditions |
normal air at 20±2˚C ,65±5%RH |
Out of stock
| Model No. |
TGS3870-F00 |
|---|---|
| Circuit Voltage |
5.0±0.2V DC pulse |
| Load Resistance |
variable (>0.75kΩ) |
| Sensing Principle |
MOS type |
| Sensor Resistance |
0.3kΩ~5.0kΩ in 3000ppm methane 2kΩ~40kΩ in 200ppm CO |
| Standard Package |
Plastic base and metal can |
| Target Gases |
Methane and Carbon Monoxide |
| Test Gas Conditions |
Target gas in air at 20±2˚C ,65±5%RH |
Out of stock
| Model number |
TGS5141-P00 |
|---|---|
| Output current in CO |
1.2~3.2nA/ppm |
| Target Gases |
Carbon monoxide |
| Typical detection range |
0 ~ 5 ,000ppm |
| Baseline offset(*1) |
<±10ppm equivalent |
| Operating temperature |
10ËšC ~ +50ËšC (continuous) -20ËšC ~ +60ËšC (intermittent) |
| Operating humidity |
10 ~ 95%RH (no condensation) |
| Response time (T90) |
within 60 seconds |
| Storage conditions |
-10ËšC ~ +50ËšC (continuous) -20ËšC ~ +60ËšC (intermittent |
| Standard test conditions |
20±2˚C ,40±10%RH |
| Weight |
approx. 2.5g |
