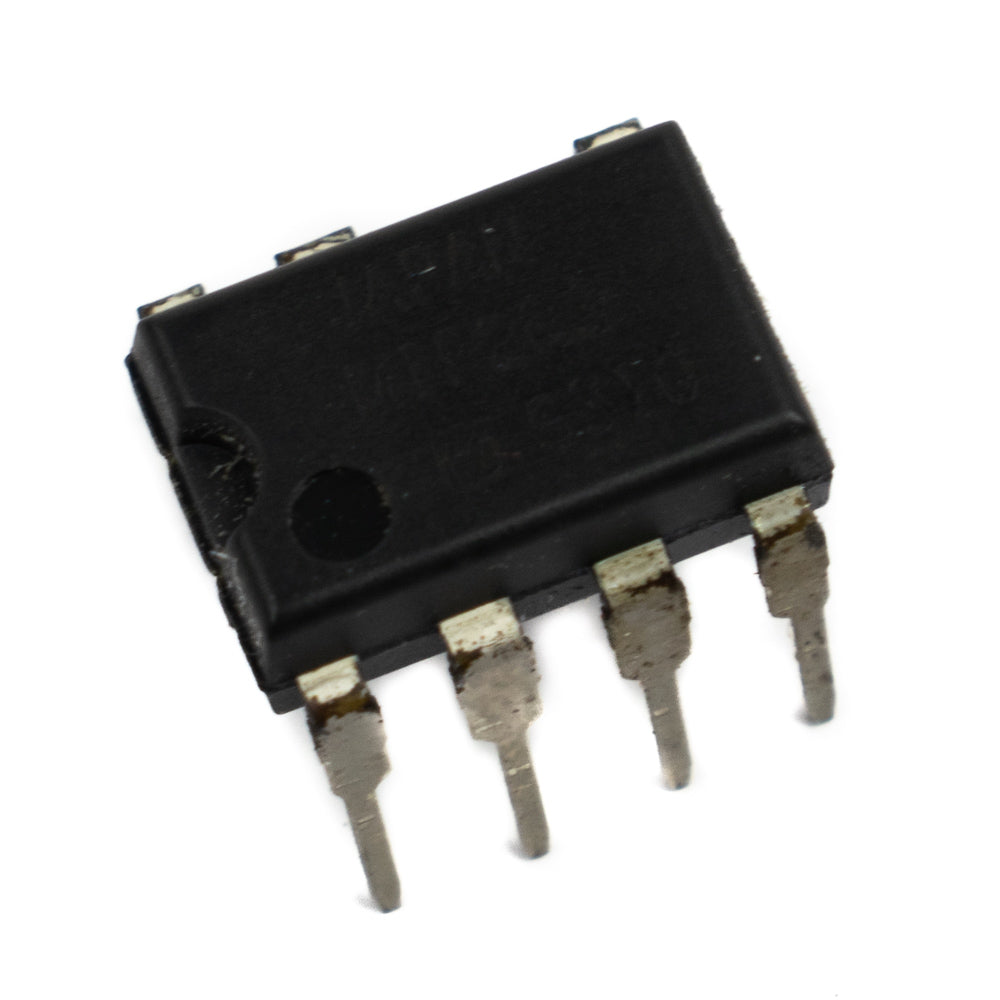

MIP2C3 PANASONIC DIP-7 High-Performance IPD for Battery Chargers

MIP2C3 PANASONIC DIP-7 High-Performance IPD for Battery Chargers

Original price was: ₹58.35.Current price is: ₹54.28. (Including tax)

Discount per Bulk Quantity

Quantity	Discount	Price
5 - 10	5%	₹51.56 (Including tax)
11 - 20	8%	₹49.94 (Including tax)
21 - 40	10%	₹48.86 (Including tax)
41 - 100	12%	₹47.76 (Including tax)

Out of stock

This product is currently sold out.

No worries! Enter your email, and we'll let you know as soon as it's back in stock.

Fast Shipping
Get the Priority Shipping on Prepaid Orders

Prepaid Orders

Normal Shipping
Get Normal Delivery (Surface) with Cash On Delivery

COD Orders

Compare

Add to wishlist

14 People watching this product now!

SKU: rz24341572 Categories: All Categories, Integrated Circuits, Integrated Circuits and Base, New Arrivals, Products on Sale, Top Selling Products, Voltage Regulator Tags: Integrated Circuits, Integrated Circuits & base, Linear Voltage Regulator, Voltage Regulator, Voltage Regulator IC

Description

MIP2C2 is a high-performance IPD designed for 7W battery chargers. It features built-in protection circuits necessary for compact power source charger circuitry. This allows a significant reduction in externally connected parts. MIP2C2 provides PWM control when a normal load is applied and intermittent control with low load. This results in greater efficiency for very low to maximum loads while also conserving power during standby.

Features

The built-in charge protection circuit
Built-in overcurrent, overheating, load shorting and overvoltage protection circuits.
Significantly reduced power consumption with no load 20mW at 100VAC, 25mW at 240V AC
High efficiency with rated load 75% at 100V AC,72% at 240VAC
Reduced number of parts (12 less than conventional Panasonic models) With worldwide input and 5.8V/0.7A output

Applications

Chargers (for cellular phones, etc. )

Specifications

Model	MIP2C
Brand	PANASONIC
Maximum Operating Junction Temperature	150°C
VDD reference voltage	5.7V
Maximum Pulse Voltage from V + to V − (50 ms)	50V
Maximum Continuous Voltage from V + to V −	40V
Maximum Input-Output Voltage Differential	40V
Maximum Amplifier Input Voltage (Differential)	25mA
Package	DIP 7
Maximum Amplifier Input Voltage (Either Input)	8.5V
Country of Origin	China
