MT3620 Grove Shield v1.0

337.89 (Including tax)

  1. Family Name: Grove
  2. Product Type: Shield
  3. Supply Voltage Min: 3.3 V
  4. 12-bit ADC converter, compatible with I2C interface
  5. I2C bus master controller with UART interface
  6. Interfaces GPIO: I²C, UART



Discount per Bulk Quantity

QuantityDiscountPrice
5 - 105%320.99 (Including tax)
11 - 208%310.86 (Including tax)
21 - 4010%304.10 (Including tax)
41 - 10012%297.35 (Including tax)

Out of stock

This product is currently sold out.

No worries! Enter your email, and we'll let you know as soon as it's back in stock.

  • fast delivery Fast Shipping

    Get the Priority Shipping on Prepaid Orders

Prepaid Orders

  • normal shipping Normal Shipping

    Get Normal Delivery (Surface) with Cash On Delivery

COD Orders

12 People watching this product now!
SKU: rz24317088 Category:
Description

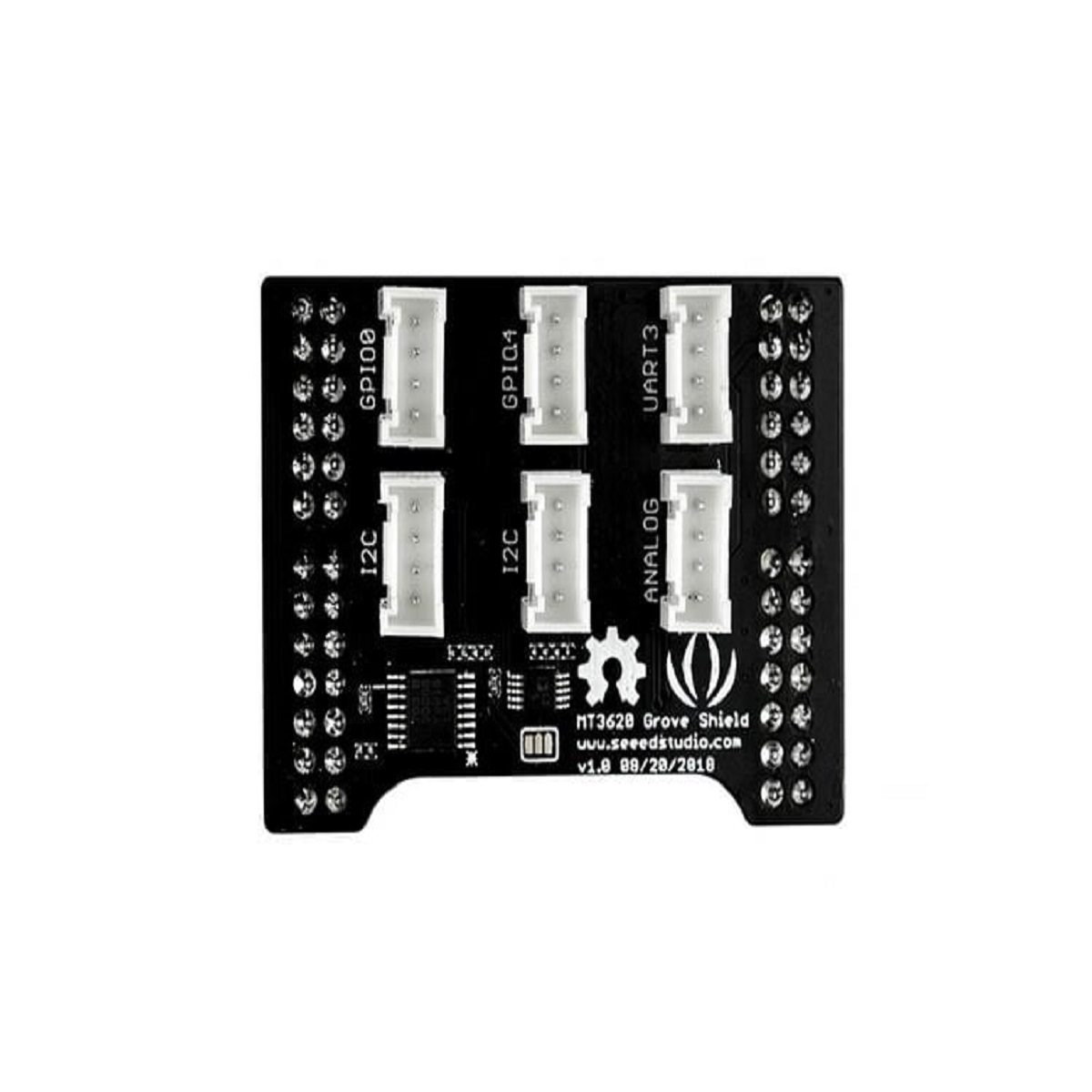

Seeed Studio MT3620 Grove Shield is an add-on breakout board designed for the MT3620 Development kit. The Azure Sphere MT3620 Development Kit comes with four 2.54mm headers for hardware resources extension from MT3620. MT3620 Grove Shield allows for quickly applying sensors modules -Seeedstudio Groves on MT3620 Development Kit.

This shield serves as an interface between the MT3620 UART port and external I2C devices, like the I2C temperature sensor. The basic function of the shield is to help connect to an external device using I2C. By using an I2C compatible ADC chip, developers can read the analog data from the analog port.


Block Diagram:

DS


Features:

  1. I2C bus master controller with UART interface
  2. 12-bit ADC converter, compatible with I2C interface
  3. Destiny: Azure Sphere MT3620
  4. Connectors: Grove
  5. 6 Grove connectors:
    1. 1x UART
    2. 2x I2C
    3. 1x Analogue
    4. 4x GPIO

Package Includes:

1 x MT3620 Grove Shield v1.0

Additional information
Family Name

Grove

Product Type

Shield

Supply Voltage Min

3.3 V

Supply Voltage Max

5.5 V

Interfaces GPIO

I²C

,

UART
