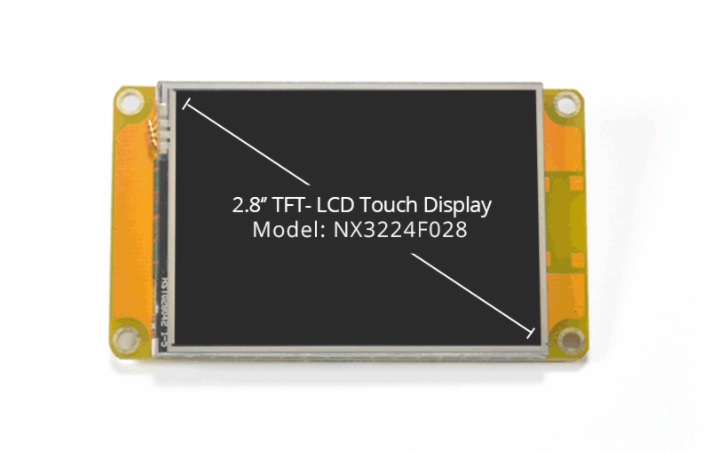

Nextion NX3224F028 is a 2.8″ Discovery series SMART HMI Touch display having a resistive touch screen. The discovery series of Nextion displays are cost-effective HMI solutions based on STM32GO ARM Cortex-M0+ 64MHz Onboard MCU Processor. In the discovery series when the Deep Sleep Mode is activated, the device’s working current is down to 0.25 mA. Your Battery Powered HMI device will last a longer working time with such a low power consumption. Compared to the Nextion basic series the discovery series reaches up to 30% more performance improvement.
Nextion Discovery NX3224F028 2.8″ Resistive Touchscreen Display is so simple to the interface that it can easily work with Arduino, Raspberry Pi, ESP8266, ESP32, PIC Microcontroller, AVR controller, ARM Microcontroller and you won’t believe it will work even with basic 8051 microcontrollers basically it will work with any board or Microcontroller that has UART port.
Nextion includes a hardware part (a series of TFT boards) and a software part (the Nextion editor). The Nextion TFT board uses only one serial port to communicate. Nextion editor has mass components such as button, text, progress bar, slider, instrument panel etc. to enrich the interface design. And the drag-and-drop function ensures that users spend less time in programming. With the help of this WYSIWYG editor, designing a GUI is a piece of cake.
Brand |
Nextion |
---|---|
Model |
Nextion NX3224F028 |
Input Voltage (V) |
DC 5V 500mA |
Pixel Resolution |
320×240 pixel |
Panel Type |
TFT |
Color |
64K 65536 colors |
Backlight |
LED White |
Backlight Lifetime (Avg) |
>30 ,000 Hours |
Working Temperature Range (°C) |
-20 to 70 |
