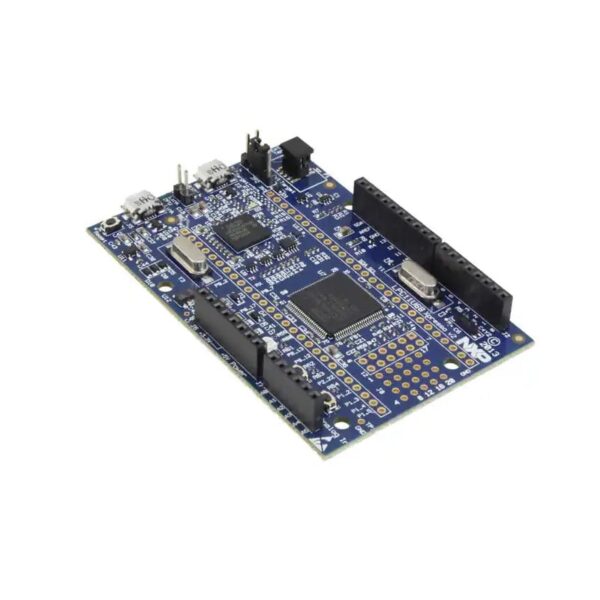

NXP Development Board, LPC11U68 MCU, JTAG Debugger, LPCXpresso Arduino UNO Expansion Connectors

18 People watching this product now!

SKU: rz2435977 Category: ARM Microcontroller

Description

The LPC11U6x are an ARM Cortex-M0+ based, low-cost 32-bit MCU family operating at CPU frequencies of up to 50 MHz. The LPC11U6x support up to 256 KB of flash memory, a 4 KB EEPROM, and 36 KB of SRAM. The ARM Cortex-M0+ is an easy-to-use, energy-efficient core using a two-stage pipeline and fast single-cycle I/O access. The peripheral complement of the LPC11U6x includes a DMA controller, a CRC engine, one full-speed USB device controller with XTAL-less low-speed mode, two I 2 C-bus interfaces, up to five USARTs, two SSP interfaces, PWM/timer subsystem with six
configurable multi-purpose timers, a Real-Time Clock, one 12-bit ADC, temperature sensor, function-configurable I/O ports, and up to 80 general-purpose I/O pins.

Applications:

Three-phase e-meter
Car radio
GPS tracker
Medical monitor
Gaming accessories
PC peripherals

Note: For more info refer to datasheet in attachment section

Features:

Small size, easy to use.
Plug and play device
Low voltage, low power consumption.
Compact design
Best for DIY projects

Packages Includes:

1 x NXP Development Board, LPC11U68 MCU, JTAG Debugger, LPCXpresso Arduino UNO Expansion Connectors

Additional information

Operating Temperature Range (°C)	40 °C to 105 °C
Single power supply	2.4 V to 3.6 V
System	ARM Cortex-M0+ processor (version r0p1) , running at frequencies of up to 50 MHz with single-cycle multiplier and fast single-cycle I/O port. ARM Cortex-M0+ built-in Nested Vectored Interrupt Controller (NVIC). AHB Multilayer matrix. System tick timer. Serial Wire Debug (SWD) and JTAG boundary scan modes supported. Micro Trace Buffer (MTB) supported.
Memory	Up to 256 KB on-chip flash programming memory with page erase. Up to 32 KB main SRAM. Up to two additional SRAM blocks of 2 KB each. Up to 4 KB EEPROM.
ROM API support	Boot loader. USART drivers. I2C drivers. USB drivers. DMA drivers.
