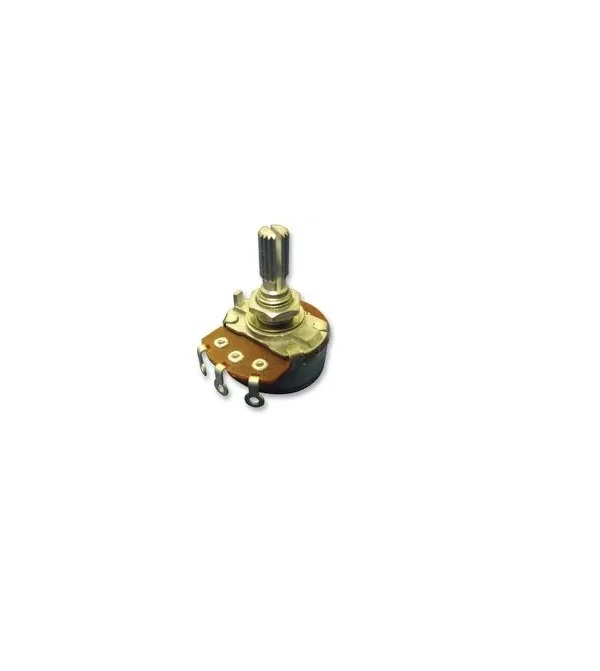

P231-QC20AR1MEG

Rotary Potentiometer, Conductive Plastic, 1 Mohm, 1 Turns, Log (Audio), 250 mW, ± 20%, P231

Specifications:

1. Track Resistance: 1Mohm
2. No. of Turns: 1Turns
3. Track Taper: Log (Audio)
4. Power Rating: 250mW
5. Resistance Tolerance: ± 20%
6. Product Range: P231
7. Potentiometer Mounting: Bushing Mount
8. Shaft Diameter: 6mm
9. No. of Gangs: 1
10. Adjustment Type: Side
11. Shaft Length: 20mm

Package Include:

1 x P231-QC20AR1MEG 1 Mohm Rotary Potentiometer

The PT6WV-471A2020-Amphenol Piher Sensors And Controls PT-6 potentiometer offer control where frequent adjustment is required. The shaftless design allows for the employment of different engagement mechanisms, such as a customized shaft, motor control, or a human interface adjustment. This potentiometer can also control variable outputs including frequency, change in motor speed, or volume.

Applications:

1. Appliance program selection
2. Thermostat adjustment
3. Timer and control relays
4. Consumer electronics
5. Power tool controls
6. Test and measurement equipment

Features:

1. Excellent performance
2. Carbon resistive element
3. Up to 10 mechanical detents
4. Up to 10.000 life cycles
5. IP54 protection
6. Magazines packaging for automatic insertion
7. Polyester substrate
8. Wiper positioned at initial, 50% or fully clockwise
9. Loose and assembled shaft and knobs
10. Linear, logarithmic, and antilogarithmic tapers
11. SPDT switch function On request
12. Embossed tape packaging

Package Includes:

1 x PT6WV-471A2020-Amphenol Piher Sensors And Controls

TC33X-2-501E
TRIMMER POTENTIOMETER 500 OHM 1TURN SMD

Specifications:

1. Track Resistance: 500ohm
2. Trimpot Type: Single Turn
3. No. of Turns: 1Turns
4. Element Material: Cermet
5. Adjustment Type: Top Adjust
6. Product Range: TC33 Series
7. Power Rating: 100mW
8. Potentiometer Mounting: Surface Mount
9. Resistance Tolerance: ± 25%
10. Temperature Coefficient: ± 250ppm/°C
11. Trimpot Shape / Size: 3 mm Rectangular
12. Automotive Qualification Standard: AEC-Q200

Package Includes:

1 x TC33X-2-501E-Trimpot Potentiometer

RM-065 Trimming Potentiometer Assorted Kit consists of 65pcs pots with 10 (5-qty. for each value) different and uniques ohm values. It is a three-terminal variable resistor that is used to vary or change the resistance. It is normally used to control any device’s resistance input value.

The potentiometer is easy to mount on a PCB and can be adjusted using a screwdriver.

Package Includes:

1 x RM-065 Trimming Potentiometer Assorted Kit – 10 Type

Kit Includes:

1KΩ——(102)—–5Pcs

2KΩ—–(202)—–5Pcs

5KΩ—–(502)—–5Pcs

10KΩ—-(103)—–5Pcs

50KΩ—-(503)—–5Pcs

20kΩ—-(203)—–5Pcs

100KΩ—(104)—–5Pcs

200KΩ—(204)—-5Pcs

500KΩ—(504)—-5Pcs

1MΩ—–(105)—–5Pcs

T93YB502KT20

Trimpot, Multi Turn, Cermet, Top Adjust, 5 kohm, Through Hole, 23 Turns

Specifications:

1. Track Resistance: 5kohm
2. Trimpot Type: Multi-Turn
3. No. of Turns: 23Turns
4. Element Material: Cermet
5. Adjustment Type: Top Adjust
6. Power Rating: 500mW
7. Potentiometer Mounting: Through Hole
8. Product Range: T93
9. Resistance Tolerance: ± 10%
10. Temperature Coefficient: ± 100ppm/°C
11. Trimpot Shape / Size: 3/8 Inch Square

Package Includes:

1 x T93YB502KT20-Trimpot Potentiometer

PT15NV02-503A2020-E-S
Trimpot, Single Turn, Carbon, Top Adjust, 50 Kohm, Through Hole, 1 Turns

Specifications:

1. Trimpot Type: Single Turn
2. Element Material: Carbon
3. Adjustment Type: Top Adjust
4. Track Resistance: 50kohm
5. Potentiometer Mounting: Through Hole
6. No. of Turns: 1Turns
7. Product Range: PT-15
8. Power Rating: 250mW
9. Resistance Tolerance: ± 20%
10. Temperature Coefficient: ± 300ppm/°C
11. Trimpot Shape / Size: 15 mm Round

Package Includes:

1 x PT15NV02-503A2020-E-S-Trimpot Potentiometer
