₹1,491.35 (Including tax)
Discount per Bulk Quantity
Quantity | Discount | Price |
---|---|---|
5 - 10 | 5% | ₹1,416.78 (Including tax) |
11 - 20 | 8% | ₹1,372.04 (Including tax) |
21 - 40 | 10% | ₹1,342.21 (Including tax) |
41 - 100 | 12% | ₹1,312.39 (Including tax) |
Out of stock
No worries! Enter your email, and we'll let you know as soon as it's back in stock.
Get the Priority Shipping on Prepaid Orders
Prepaid Orders
Get Normal Delivery (Surface) with Cash On Delivery
COD Orders

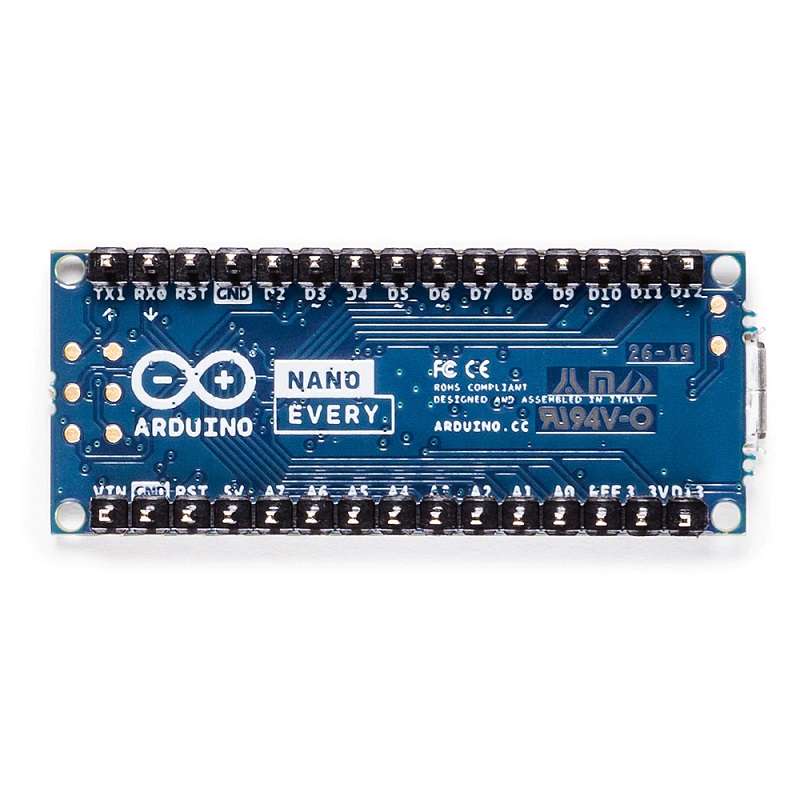

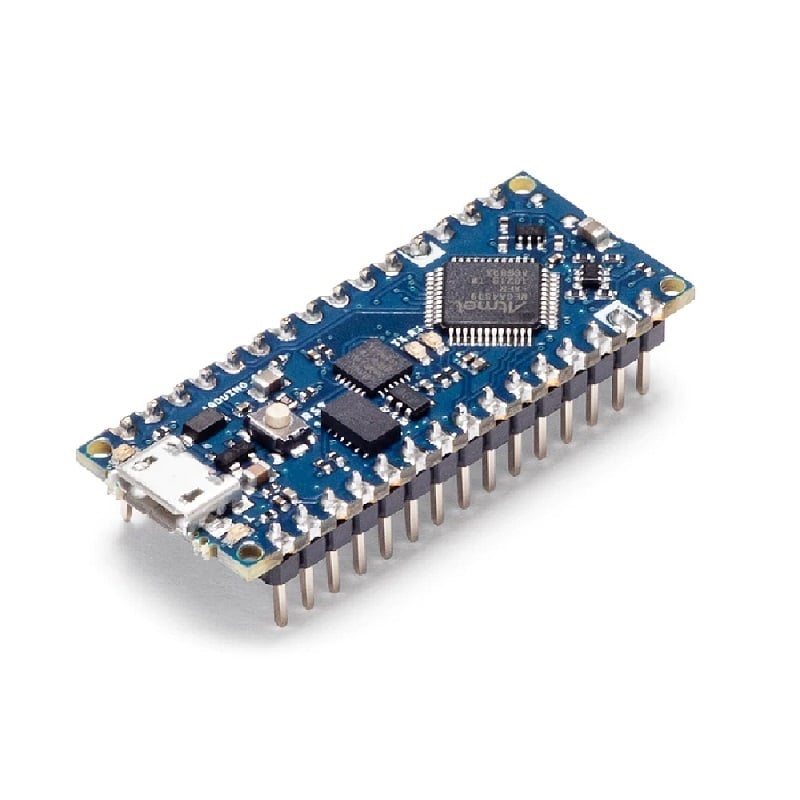

The Nano Every is Arduino’s 5V compatible board in the smallest available form factor: 45x18mm!
The Arduino Nano is the preferred board for many projects requiring a small and easy to use microcontroller board. The small footprint and low price, make the Nano Every particularly suited for wearable inventions, low-cost robotics, electronic musical instruments, and general use to control smaller parts of a larger projects.
The Arduino Nano Every is an evolution of the traditional Arduino Nano board but features a lot more powerful processor, the ATMega4809. This will allow you to make larger programs than with the Arduino Uno (it has 50% more program memory), and with a lot more variables (the RAM is 200% bigger).
Each set of headers allows you to stack a Qwiic Nano shield on top of your Arduino Nano or plug them into a solderless breadboard. Note: Soldering is required for functionality and physical attachment to a shield or board

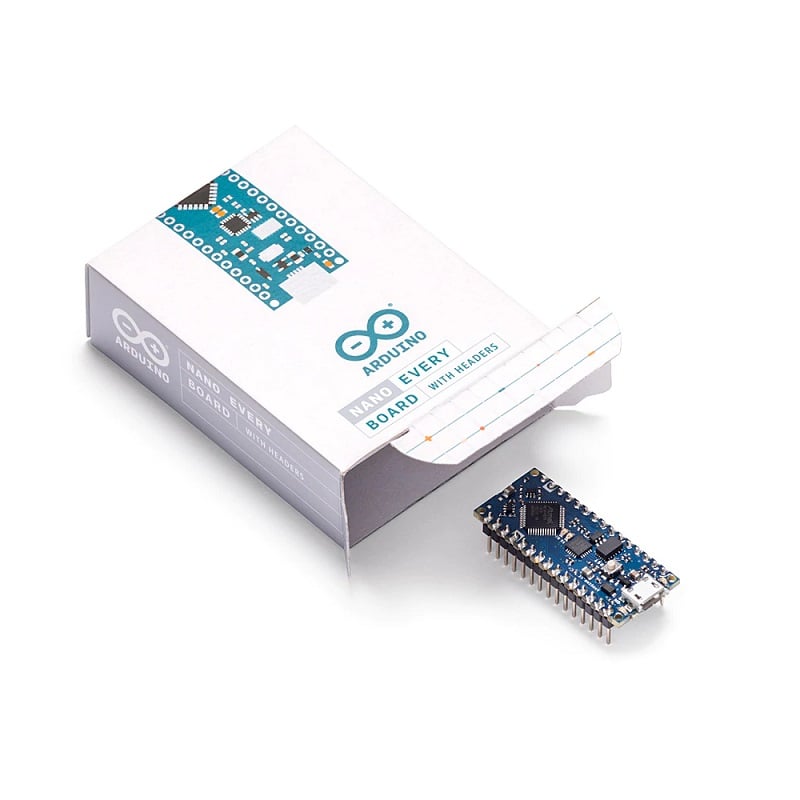

1 x ARDUINO NANO EVERY WITH HEADERS
Microcontroller |
ATMage4809 |
---|---|
Operating Voltage(V) |
5V |
VIN MIN-MAX |
7-21V |
DC Current per I/O Pin (mA) |
20 |
DC Current for 3.3V Pin (mA) |
50 |
Clock Speed |
20 MHz |
CPU Flash Memory |
48KB |
SRAM |
6KB |
EEPROM |
256byte (ATMega4809) |
PWM PINS |
5 (D3 ,D5 ,D6 ,D9 ,D10) |
UART |
1 |
SPI |
1 |
12C |
1 |
Analog I/O Pins |
Input Pins 8 (ADC 10 bit) ,Out put Only through PWM (no DAC) |
EXTERNAL INTERRUPTS |
all digital pins |
On Board LEDs |
13 |
USB |
Uses the ATSAMD11D14A |
Length (mm) |
45 mm |
Width (mm) |
18 mm |
Height (mm) |
2 |
Weight (g) |
5 gr (with headers) |
Only logged in customers who have purchased this product may leave a review.
Shipping and Delivery Policy
1. Shipping Process:
2. Shipping Charges:
3. Order Tracking:
4. Delivery Address:
5. Delivery Issues:
6. No Return Policy for Opened/Soldered Products:
7. Refund Policy:
Out of stock
Model Type |
Leonardo |
---|---|
Microcontroller Chip |
ATmega32u4 |
Operating Voltage (VDC) |
5 |
Input Voltage(Recommended) |
7V to 12V |
Input Voltage (limit) |
6V-20V |
Analog I/O Pins |
12 |
Digital I/O Pins |
20 |
PWM Digital I/O Pins |
7 |
Clock Speed |
16 MHz |
Flash Memory |
32 KB (ATmega32u4) of which 4 KB used by bootloader |
SRAM |
2.5 KB (ATmega32u4) |
EEPROM |
1 KB (ATmega328) |
Weight (gm) |
20 |
Length (mm) |
68.6 |
Width (mm) |
53.3 |
Out of stock
Microcontroller Chip |
SAMD21 Cortex®-M0+ 32bit low power ARM MCU |
---|---|
Operating Voltage (VDC) |
3.3 |
Input Voltage(Recommended) |
5 V |
Analog I/O Pins |
Input Pins:7 ,Output Pins:1 |
Digital I/O Pins |
8 |
PWM Digital I/O Pins |
13 |
Clock Speed |
32.768 kHz (RTC) ,48 MHz |
Flash Memory |
256 KB (internal) |
SRAM |
32 KB |
DC Current per I/O Pin (mA) |
7 |
Dimensions in mm (LxWxH) |
83x25x2 |
Weight (gm) |
43 |
Out of stock
Microcontroller Chip |
SAMD21 Cortex-M0+ 32bit low power ARM MCU |
---|---|
Operating Voltage (VDC) |
3.3 |
Input Voltage(Recommended) |
5 V |
Analog I/O Pins |
Input Pins:7 ,Output Pins:1 |
Digital I/O Pins |
22 |
PWM Digital I/O Pins |
12 |
Clock Speed |
48MHz |
Flash Memory |
256 KB |
SRAM |
32 KB |
DC Current for 3.3V Pin (mA) |
600 |
Dimensions in mm (LxWxH) |
61.5x25x4 |
Out of stock
Model Type |
Arduino MKR1000 WIFI |
---|---|
Microcontroller Chip |
SAMD21 Cortex-M0+ 32bit low power ARM MCU |
Operating Voltage (VDC) |
5V |
Analog I/O Pins |
(Input Pin )7 (ADC 8/10/12 bit) ,(Output Pins) 1 (DAC 10 bit) |
Digital I/O Pins |
8 pins |
PWM Digital I/O Pins |
12 (0 ,1 ,2 ,3 ,4 ,5 ,6 ,7 ,8 ,10 ,A3 – or 18 – ,A4 -or 19) |
Clock Speed |
32.768 kHz (RTC) ,48 MHz |
Flash Memory |
256 KB (internal) |
SRAM |
32 KB |
EEPROM |
NO |
LED_BUILTIN |
6 |
DC CURRENT PER I/O PIN |
7mA |
EXTERNAL INTERRUPTS |
8 (0 ,1 ,4 ,5 ,6 ,7 ,8 ,A1 -or 16- ,A2 – or 17) |
SUPPORTED BATTERY |
Li-Po single cell ,3.7V ,700mAh minimum |
UART |
1 |
SPI |
1 |
12C |
1 |
Length(cm) |
6 |
Width (cm) |
2.5 |
Hight (mm) |
.5 |
Weight (gm) |
0.007 |
Out of stock
Microcontroller |
nRF52840 |
---|---|
Operating Voltage |
3.3V |
Input Voltage (Limit) |
21V |
DC Current per I/O Pin |
15mA |
Clock Speed |
64MHz |
CPU Flash Memory |
1MB |
SRAM |
256KB |
EEPROM |
none |
Digital Input / Output Pins |
14 |
PWM pins |
All Digital Pins |
UART |
1 |
SPI |
1 |
I2C |
1 |
Analog Input Pins |
8 (ADC 12 bit 200 ksamples) |
Analog Output Pins |
Only through PWM (no DAC) |
USB |
Native in the nRF52840 Processor |
IMU |
9 axis IMU Its a Combination of two (BMI270 – 6 axis IMU and BMM150 – 3 axis IMU). |
Microphone |
MP34DT05 |
Gesture, light, proximity |
APDS9960 |
Barometric pressure |
LPS22HB |
Temperature, humidity |
HTS221 |
Length (mm) |
45 |
Width (mm) |
18 |
Weight (gm) |
5 |
Out of stock
Model Type |
Arduino Nano 33 IOT with Header |
---|---|
Microcontroller |
SAMD21 Cortex-M0+ 32bit low power ARM |
Radio module |
u-blox NINA-W102 |
Secure Element |
ATECC608A |
IMU |
LSM6DS3 |
Operating Voltage (VDC) |
3.3 |
Analog I/O Pins |
Input Pins 8 : (ADC 8/10/12 bit) ,Output Pins : 1 (DAC 10 bit) |
Digital I/O Pins |
14 |
PWM Output Pins |
11 (2 ,3 ,5 ,6 ,9 ,10 ,11 ,12 ,16 / A2 ,17 / A3 ,19 / A5) |
Clock Speed |
48MHz |
DC Current per I/O Pin (mA) |
7 |
Flash Memory |
256 KB |
EEPROM |
None |
SRAM |
32 |
Length (mm) |
45 |
Width (mm) |
18 |
Height (mm) |
5 |
Weight (gm) |
5 |
