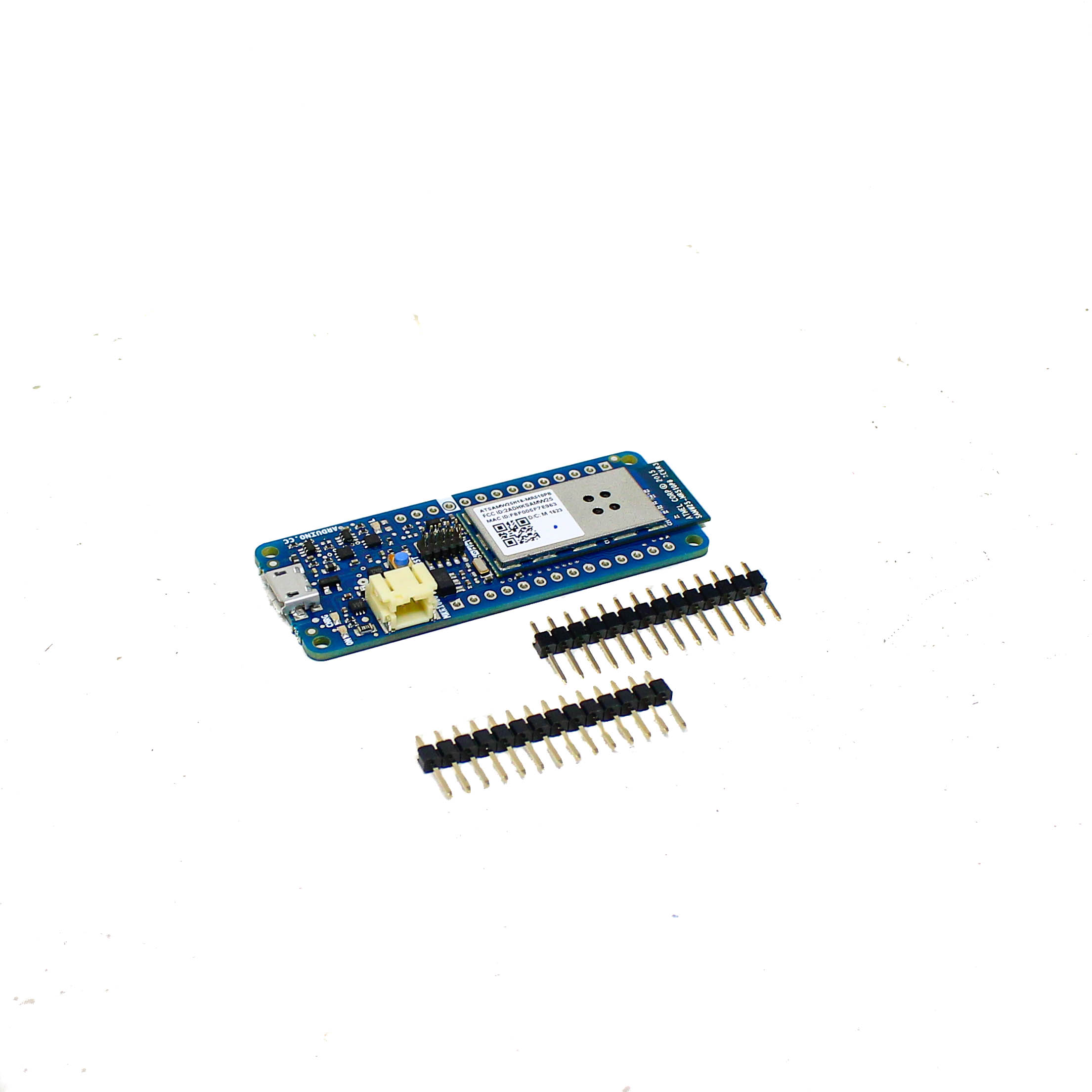

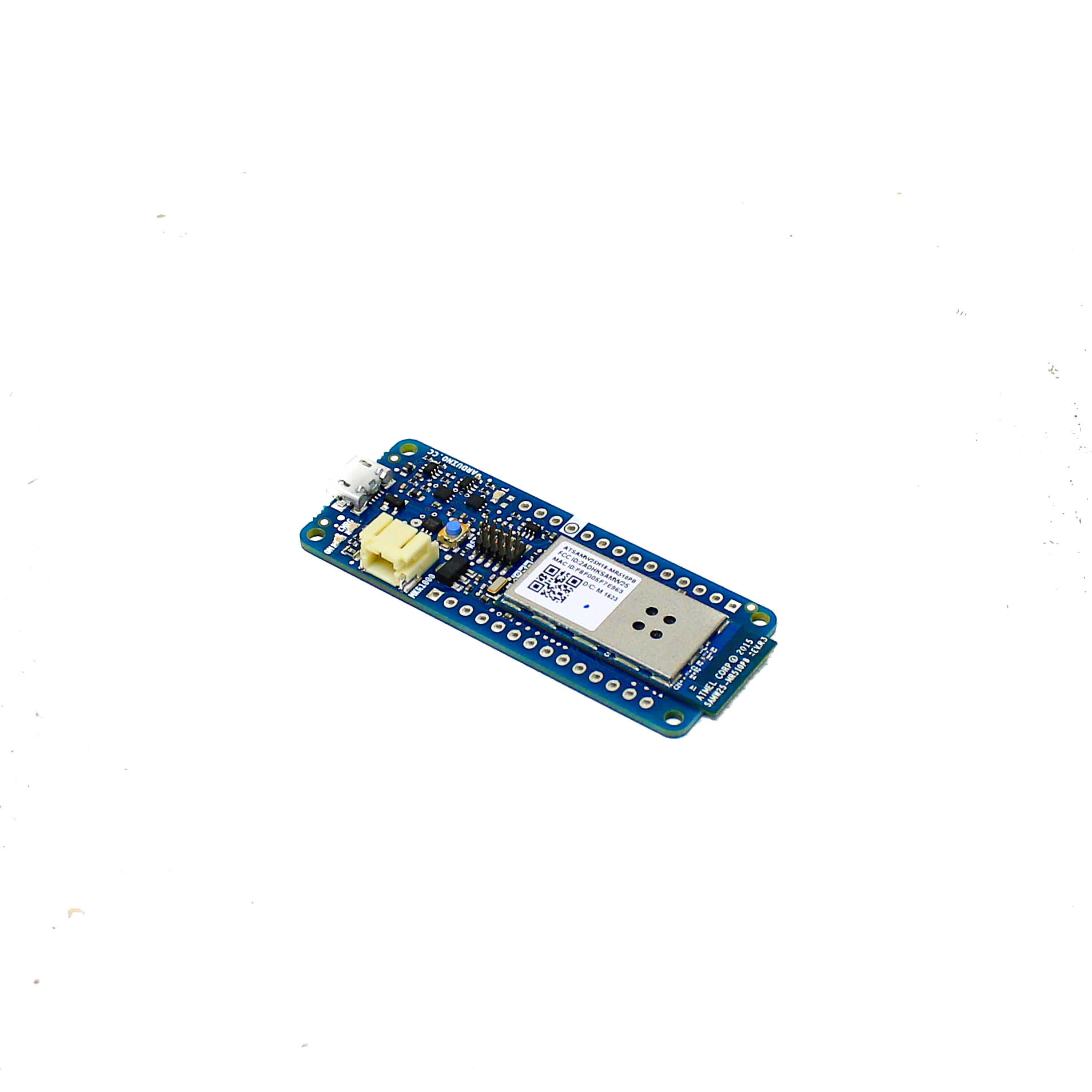

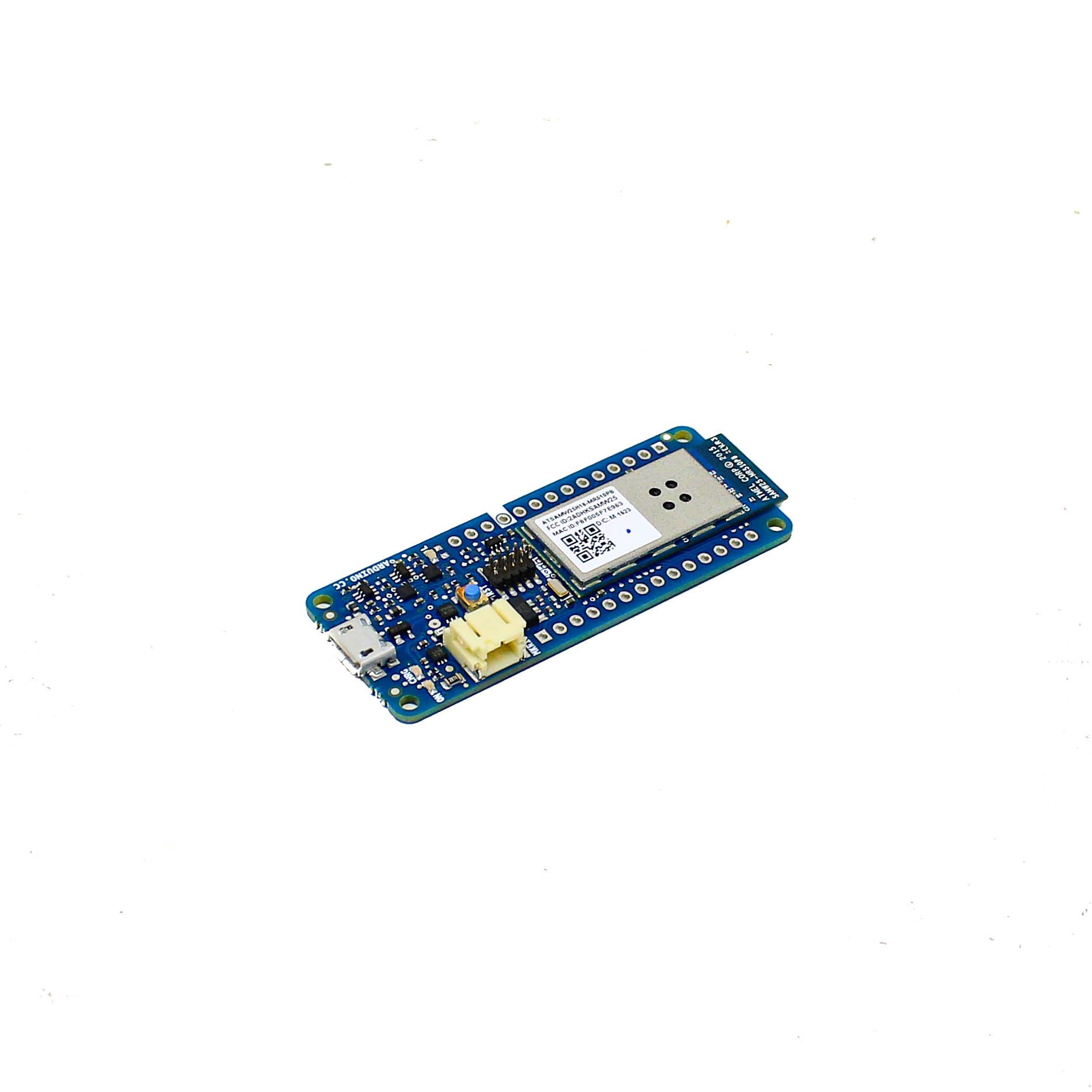

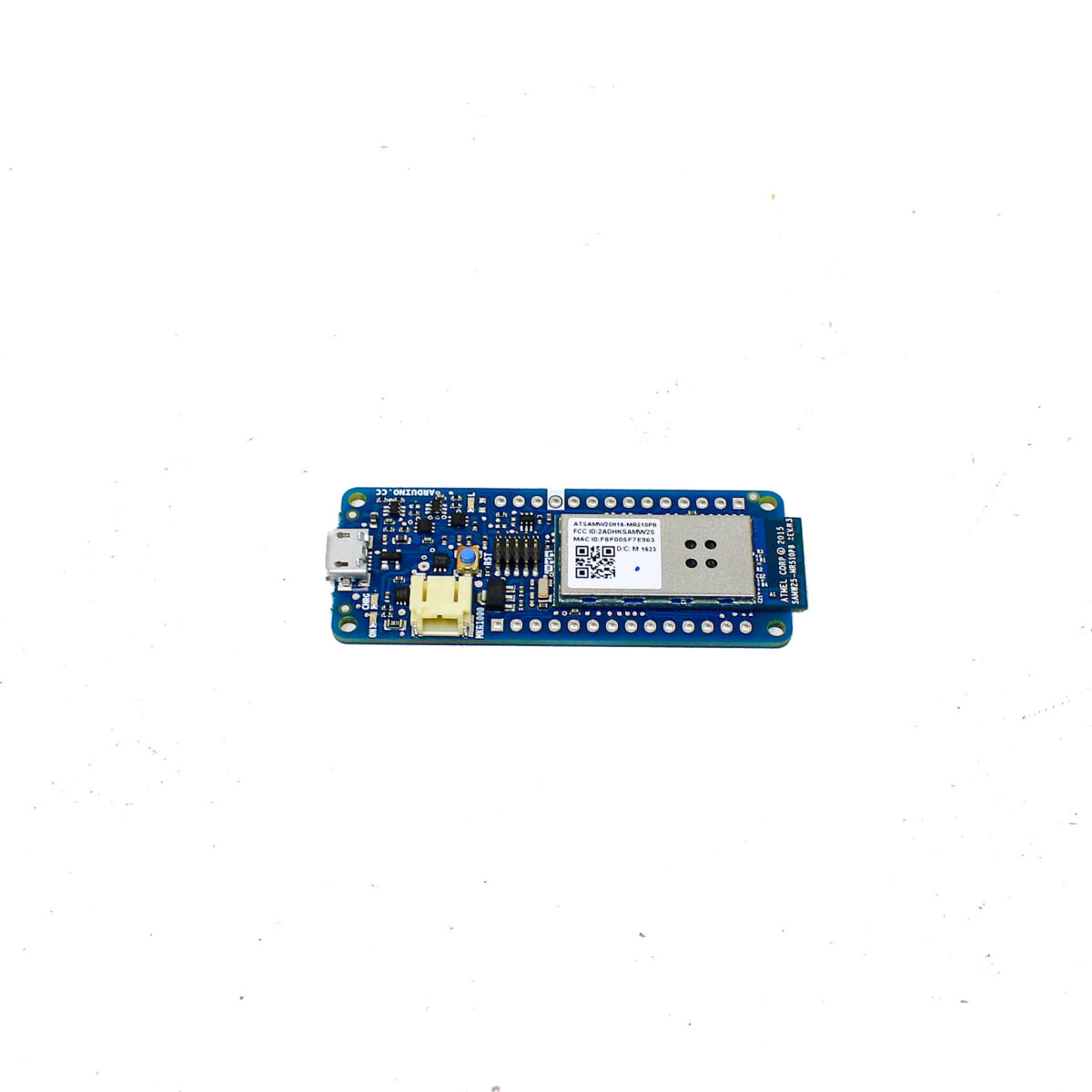

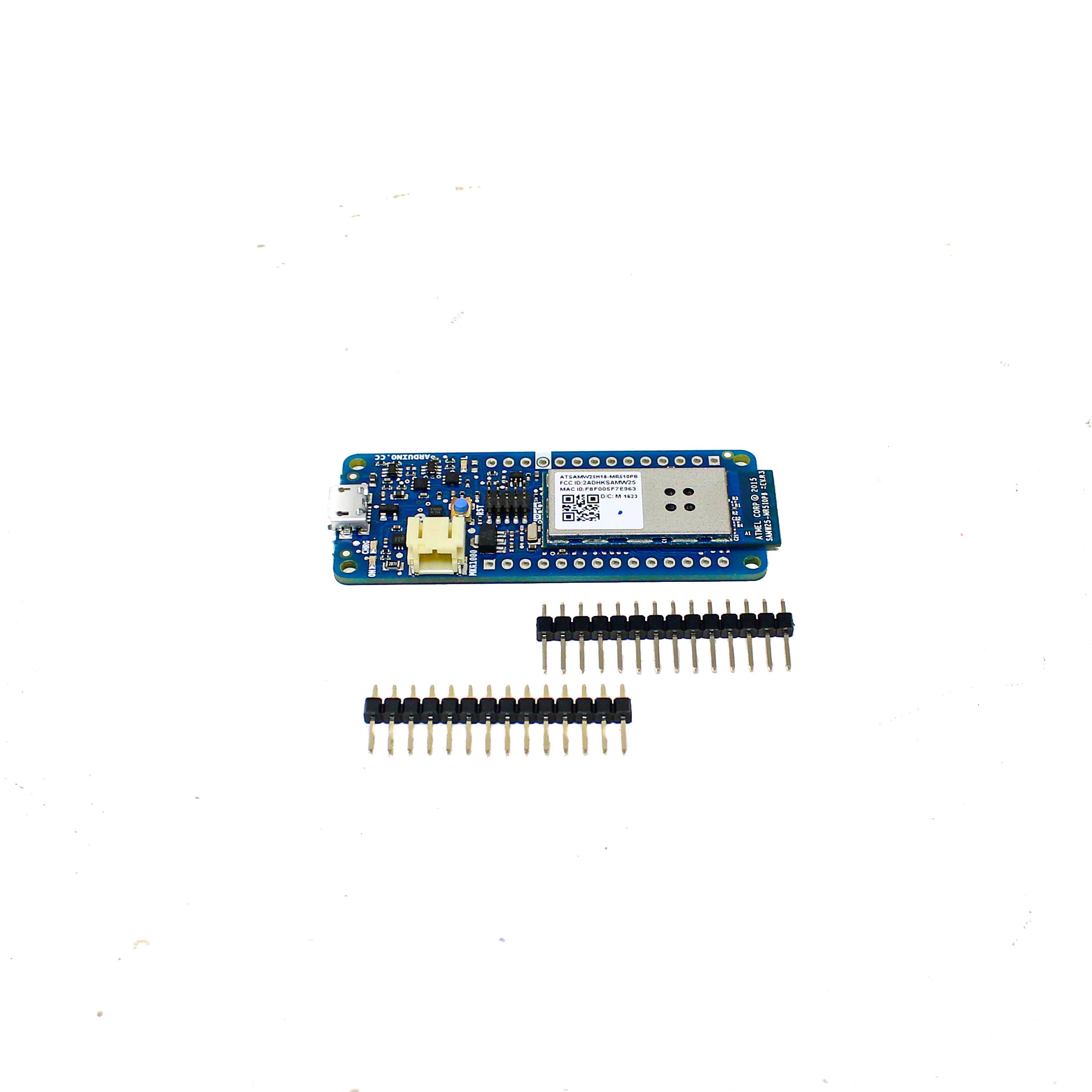

Arduino MKR1000 has been designed to offer a practical and cost effective solution for makers seeking to add Wi-Fi connectivity to their projects with minimal previous experience in networking. It is based on the Atmel ATSAMW25 SoC (System on Chip), that is part of the Smart Connect family of Atmel Wireless devices, specifically designed for IoT projects and devices. The Arduino MKR1000 combines the functionality of the Zero and the Wi-Fi Shield. This is an ideal board for makers that want to design IoT projects with minimal previous experience in networking. It features the Atmel ATSAMW25 SoC that is part of the Smart Connect family of Atmel Wireless devices that are specifically designed for IoT projects and devices. The ATSAMW25 is composed of three main blocks; The SAMD21 Cortex-M0+ 32-bit low power ARM MCU, the WINC1500 low power 2.4 GHz IEEE 802.11 b/g/n Wi-Fi, and the ECC508 Crypto Authentication. The MKR1000 includes a Li-Po charging circuit that allows it to run on battery power or external 5V charging the Li-Po battery while running on external power, where switching sources is automatically done.

It has similar computation to the Zero board, rich set of I/O interfaces, low power Wi-Fi with a Crypto chip for secure communication and ease of use of the Arduino Software (IDE) for code development and programming, making all these features the preferred choice for IoT battery-powered projects in a compact form factor.

This version is the MKR1000 without headers. Check out the MKR1000 with Headers.

Features:

1. 1. SAMD21 Cortex – M0+ 32-bit low power ARM MCU
   2. 5V board power supply
   3. Supports Li-Po cell, 3.7V, 700mAh minimum
   4. 8 digital I/O pins
   5. 12 PWM pins
   6. 7 analog input pits (ADC 8/10/12 bit)
   7. 1 analog output pins (DAC 10-bit)
   8. 8 external interrupts
   9. 256 KB Flash memory
   10. 32 KB SRAM
   11. 32.768 kHz (RTC) / 48 MHz clock speed

Packages Includes:

1 x Arduino MKR1000 WIFI without headers

While the news-breaking launch of the Raspberry Pi Pico is still fresh in our minds, here is another launch of a tiny but powerful development board in the world of microcontroller boards on the footprint of Raspberry Pi  Pico from Arduino officials.

Arduino named it “Arduino Nano RP2040 Connect” a newly launched Microcontroller board welcoming the Raspberry Pi’s RP2040chip on which NANO connect has been built. The Arduino Nano RP2040 Connect shares a similar form factor to the Raspberry Pi Pico, but it includes extra functionality, chiefly WiFi and Bluetooth along with a 9-axis IMU sensor and microphone.

Arduino also broke the news that they will be porting the Arduino IDE for use with the RP2040 chip. This is welcome news for C/C++ developers and embedded hobbyists alike.

Features and Specifications:

Raspberry Pi RP2040 Microcontroller:

1. 133MHz 32bit Dual Core Arm Cortex-M0+
2. 264kB on-chip SRAM
3. Direct Memory Access (DMA) controller
4. Support for up to 16MB of off-chip Flash memory via dedicated QSPI bus
5. USB 1.1 controller and PHY, with host and device support
6. 8 PIO state machines
7. Programmable IO (PIO) for extended peripheral support
8. 4 channel ADC with internal temperature sensor, 0.5 MSa/s, 12-bit conversion
9. SWD Debugging
10. 2 on-chip PLLs to generate USB and core clock
11. 40nm process node
12. Multiple low power mode support
13. USB 1.1 Host/Device
14. Internal Voltage Regulator to supply the core voltage
15. Advanced High-performance Bus (AHB)/Advanced Peripheral Bus (APB)

U-blox® Nina W102 WiFi/Bluetooth Module:

1. 240MHz 32bit Dual Core Xtensa LX6
2. 520kB on-chip SRAM
3. 448 Kbyte ROM for booting and core functions
4. 16 Mbit FLASH for code storage including hardware encryption to protect programs
   and data
5. 1 kbit EFUSE (non-erasable memory) for MAC addresses, module configuration,
6. Flash-Encryption, and Chip-ID
7. IEEE 802.11b/g/n single-band 2.4 GHz WiFi operation
8. Bluetooth 4.2
9. Integrated Planar Inverted-F Antenna (PIFA)
10. 4x 12-bit ADC
11. 3x I2C, SDIO, CAN, QSPI

Memory:

1. AT25SF128A 16MB NOR Flash
2. QSPI data transfer rate up to 532Mbps
3. 100K program/erase cycles

For the detailed description of the product Please go through the datasheet in the attachments.

Package Includes:

1 x Arduino Nano RP2040 Connect with Header

For Arduino, Nano RP2040 Connect without Header Click Here

The Nano 33 BLE (with Soldered Headers) is Arduino’s 3.3V compatible board in the smallest available form factor: 45x18mm!

This boars is an upgrade to Arduino NANO with ease of use of a Nano board with the addition of secure IoT and BT connectivity. The Bluetooth connectivity combined with its low-power architecture makes it a practical and cost-effective solution for your connected projects.

The Arduino Nano 33 BLE is a completely new board on a well-known form factor. It comes with an embedded 9-axis inertial sensor which makes this board ideal for wearable devices, but also for a large range of scientific experiments in the need of short-distance wireless communication.

Bluetooth and BLE

The communications chipset on the Nano 33 BLE can be both a BLE and Bluetooth client and host device. Something pretty unique in the world of microcontroller platforms. If you want to see how easy it is to create a Bluetooth central or a peripheral device, explore the examples at our ArduinoBLE library.

Useful Links:

Getting started with the Arduino NANO 33 BLE

Package Includes:

1 x ARDUINO NANO 33 BLE Board (With Soldered Header)

The Nano Every is Arduino’s 5V compatible board in the smallest available form factor: 45x18mm!

The Arduino Nano is the preferred board for many projects requiring a small and easy to use microcontroller board. The small footprint and low price, make the Nano Every particularly suited for wearable inventions, low-cost robotics, electronic musical instruments, and general use to control smaller parts of a larger projects.

The Arduino Nano Every is an evolution of the traditional Arduino Nano board but features a lot more powerful processor, the ATMega4809. This will allow you to make larger programs than with the Arduino Uno (it has 50% more program memory), and with a lot more variables (the RAM is 200% bigger).

Each set of headers allows you to stack a Qwiic Nano shield on top of your Arduino Nano or plug them into a solderless breadboard. Note: Soldering is required for functionality and physical attachment to a shield or board

Features:

1. Easy to use
2. Brand new product
3. Small in size
4. Easy to learn with Arduino
5. Color: Blue
6. low cost
7. Low power consumptions

Packages Includes:

1 x ARDUINO NANO EVERY WITH HEADERS

1. Tiny form factor of 22.86 x 22.86 mm
2. Powerful processor to host intelligence on the edge
3. Packed with a 2MP color camera that supports TinyML, smart 6-axis motion sensor, microphone and distance sensor
4. Wi-Fi and Bluetooth® Low Energy connectivity
5. Supports Micro Python
6. Standalone when battery powered
7. Expand existing project with sensing capabilities, make MV prototyping faster

Packages Includes:

1 x Arduino Nicla Vision

The Arduino Nano 33 IoT is the easiest and cheapest point of entry to enhance existing devices (and creating new ones) to be part of the IoT and designing pico-network applications. Whether you are looking at building a sensor network connected to your office or home router, or if you want to create a BLE device sending data to a cellphone, the Nano 33 IoT is your one-stop solution for many of the basic IoT application scenarios.

The board’s main processor is a low-power Arm Cortex-M0 32-bit SAMD21. The WiFi and Bluetooth connectivity is performed with a module from u-blox, the NINA-W10, a low-power chipset operating in the 2.4GHz range. On top of that, secure communication is ensured through the Microchip ECC608 crypto chip.

Besides that, you can find a 6 axis IMU, which makes this board perfect for simple vibration alarm systems, pedometers, the relative positioning of robots, etc.

Features:

1. Secure communication for all of your connected things with Arduino IoT Cloud.
2. Connect to any kind of existing WiFi network, or use it to create your own Arduino Access Point.
3. Compatible with other Cloud Services.
4. The communications chipset on the Nano 33 IoT can be both a BLE and Bluetooth client and host device.

Package Includes:

1 x Arduino Nano 33 IOT
