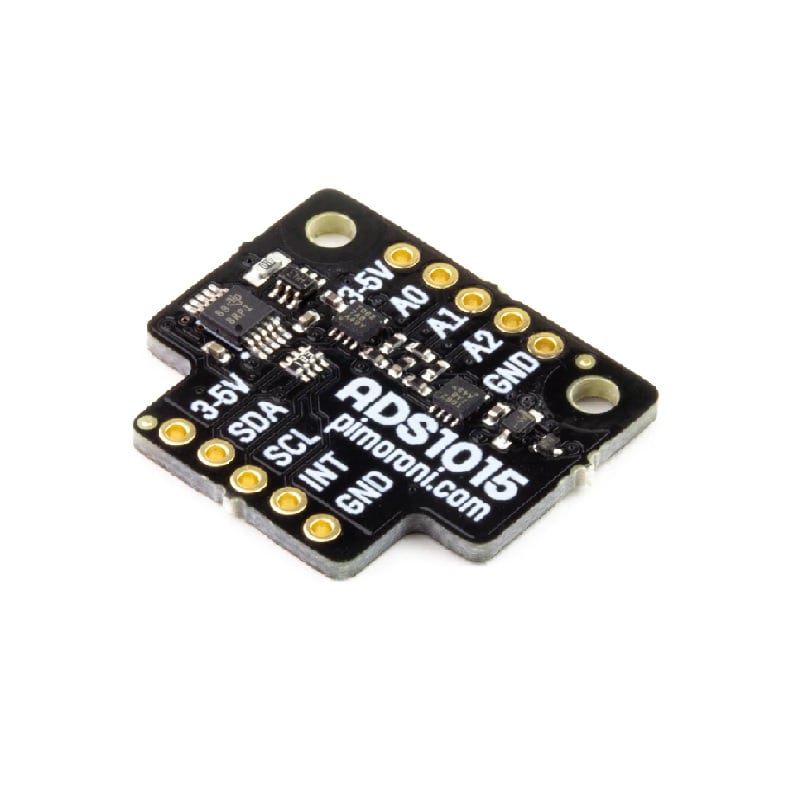

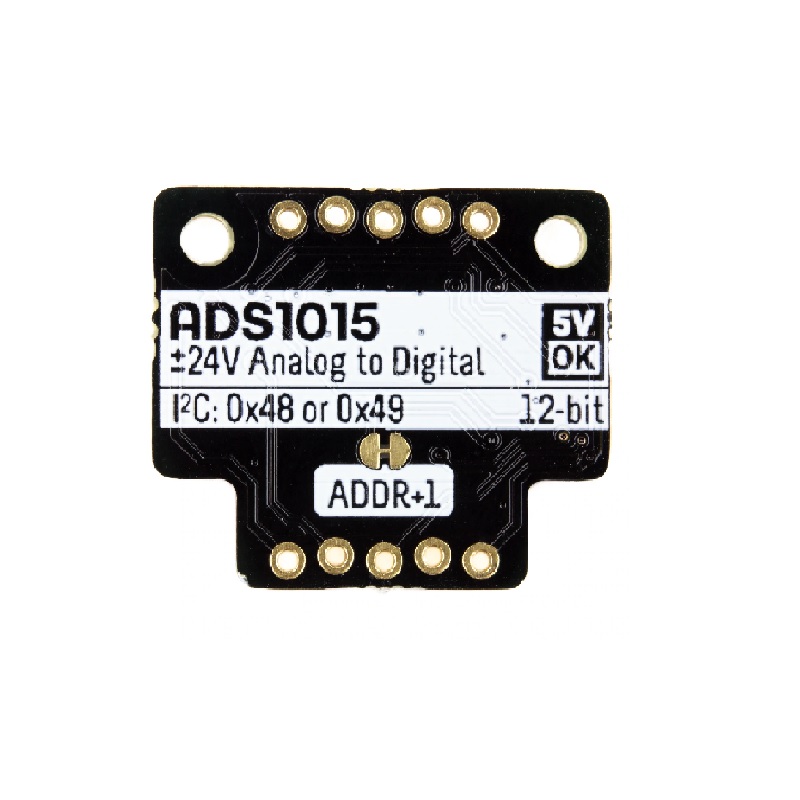

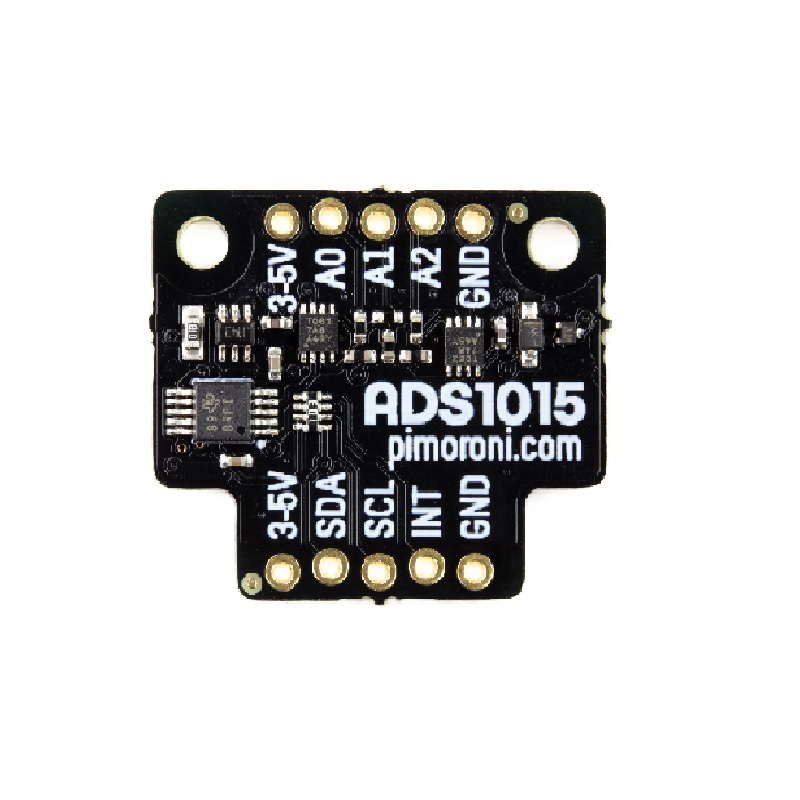

PIMORONI ADS1015 +/-24V ADC breakout

SKU: 1243052
Out of stock

1,299.00

Add to Wishlist
Add to Wishlist
  1. Product type:  ADC +/-24V
  2. Operating Voltage: 2.0 V to 5.5 V
  3. I2C Interface: Four Pin-Selectable Addresses
  4. Low Current Consumption: 150 μA (Continuous-Conversion Mode)
  5. 12-Bit Noise-Free Resolution
  6. Ultra-Small X2QFN Package: 2 mm × 1.5 mm × 0.4 mm
Out of stock

Did you like this product? Add to favorites now and follow the product.

Add to Wishlist
Add to Wishlist

Category:

Description

The ADS1013, ADS1014, and ADS1015 devices (ADS101x) are precision, low-power, 12-bit, I2Ccompatible, analog-to-digital converters (ADCs) offered in an ultra-small, leadless, X2QFN-10
package, and a VSSOP-10 package. The ADS101x devices incorporate a low-drift voltage reference and an oscillator. The ADS1014 and ADS1015 also incorporate a programmable gain amplifier (PGA) and a digital comparator. These features, along with a wide operating supply range, make the ADS101x well suited for power- and space-constrained, sensor measurement applications.
The ADS101x perform conversions at data rates up to 3300 samples per second (SPS). The PGA offers input ranges from ±256 mV to ±6.144 V, allowing precise large- and small-signal measurements. The ADS1015 features an input multiplexer (MUX) that allows two differential or four single-ended input measurements. Use the digital comparator in the
ADS1014 and ADS1015 for under- and overvoltage detection. The ADS101x operate in either continuous conversion mode or single-shot mode. The devices are automatically powered down after one conversion in single-shot mode; therefore, power consumption is significantly reduced during idle periods.

Applications:

  1. Portable Instrumentation
  2. Battery Voltage and Current Monitoring
  3. Temperature Measurement Systems
  4. Consumer Electronics
  5. Factory Automation and Process Control

Features:

  1. Small in size
  2. Color: Black
  3. 12-Bit Noise-Free Resolution
  4. Low Current Consumption: 150 μA (Continuous-Conversion Mode)
  5. Single-Cycle Settling
  6. Internal Low-Drift Voltage Reference
  7. Internal Oscillator
  8. Four Single-Ended or Two Differential Inputs (ADS1015)
  9. Programmable Comparator (ADS1014 andADS1015)

packages Includes:

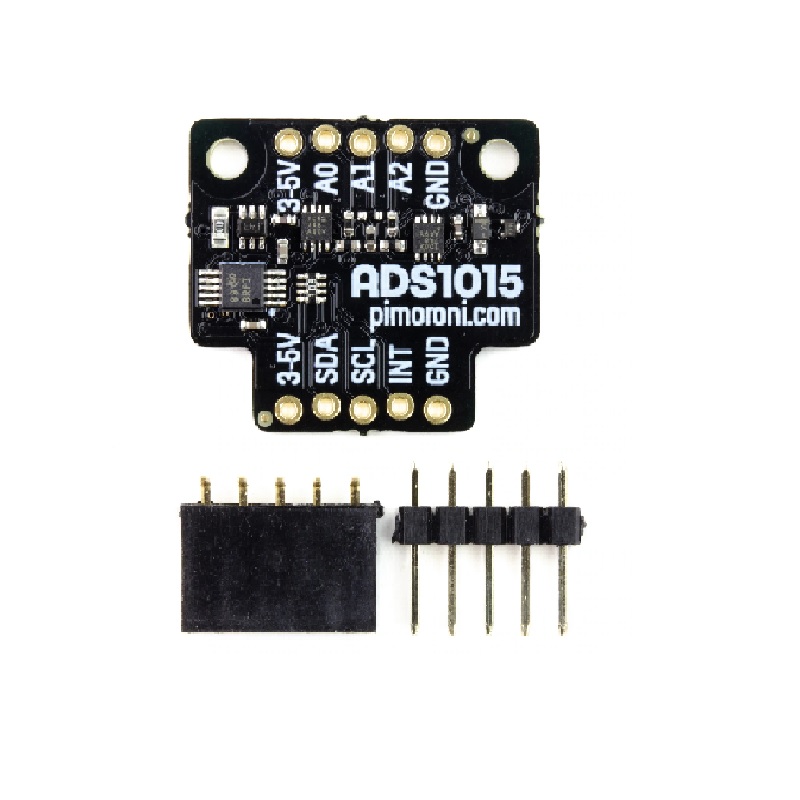

1 x PIMORONI ADS1015 +/-24V ADC breakout

Additional information

Model No.

ADS1015

Product Type

ADC +/-24V

Operating Voltage(V)

2.0 V to 5.5 V

I2C Interface

Four Pin-Selectable Addresses

Operating Temperature (°C)

–40°C to +125°C

Programmable Data rate

128 SPS to 3.3 kSPS

Electrostatic discharge

Human-body model (HBM), per ANSI/ESDA/JEDEC JS-001(1) ±2000V Charged-device model (CDM), per JEDEC specification JESD22-C101(2) ±500V

Power Supply Option

Power supply (VDD to GND)

Ultra-Small X2QFN Package

2 mm × 1.5 mm × 0.4 mm
