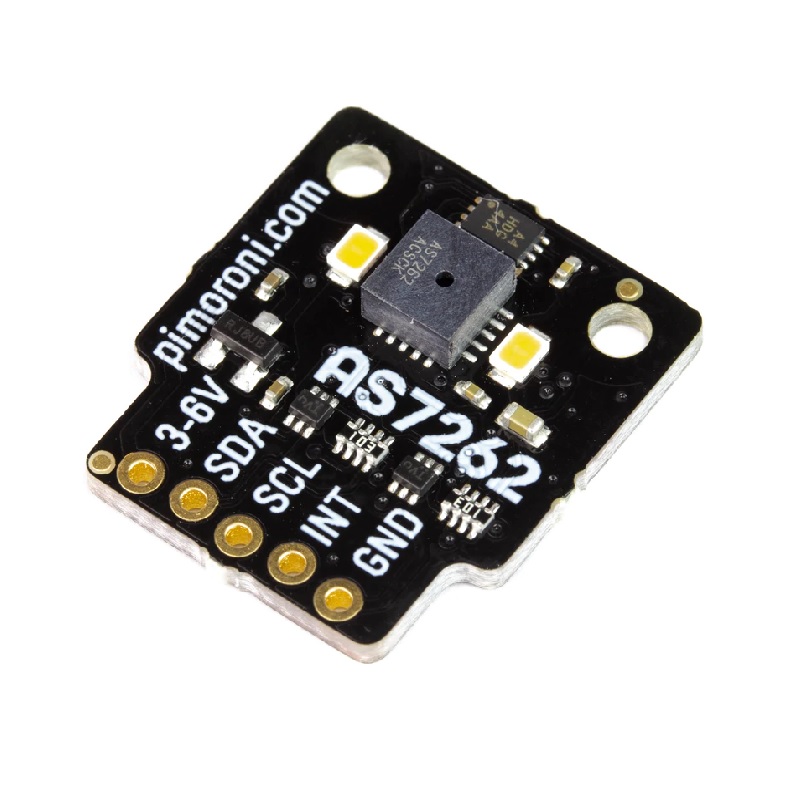

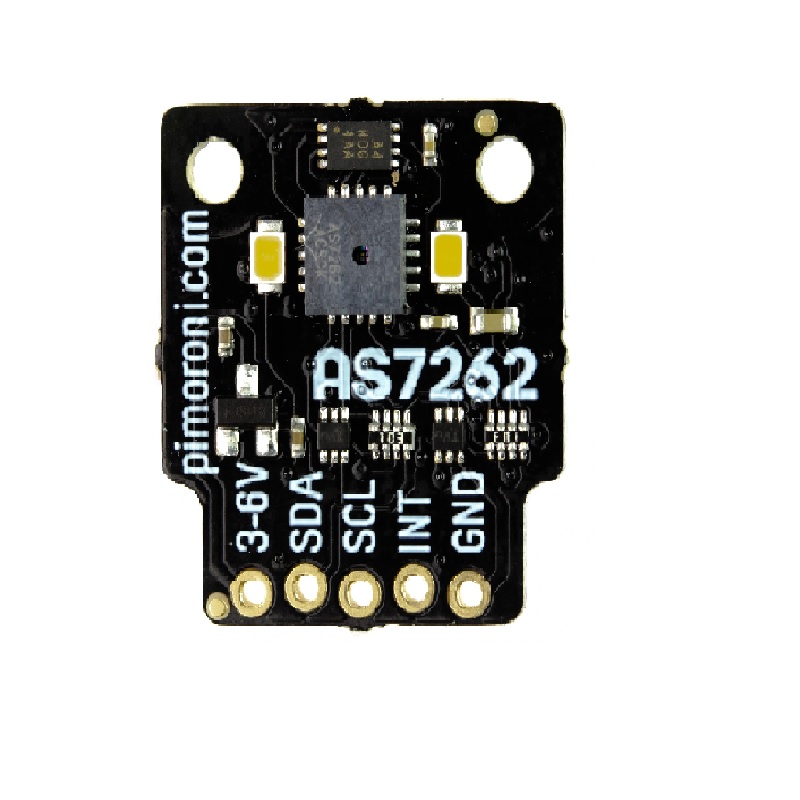

The AS7262 is a cost-effective multi-spectral sensor-on-chip solution designed to address spectral ID applications. This highly integrated device delivers 6-channel multi-spectral sensing in the visible wavelengths from approximately 430nm to 670nm with full-width half-max (FWHM) of 40nm. An integrated LED driver with programmable current is provided for electronic shutter applications. The AS7262 integrates Gaussian filters into standard CMOS silicon via nano-optic deposited interference filter technology and is packaged in an LGA package that provides a built in
aperture to control the light entering the sensor array. Control and spectral data access is implemented through either the I²C register set, or with a high level AT Spectral Command
set via a serial UART.

Application:

1. Portable spectrometry
2. Horticulture
3. Color matching and identification
4. Authentication and brand protection
5. Precision color tuning/calibration

Features:

1. AMS AS7262 6-channel spectral (visible) sensor

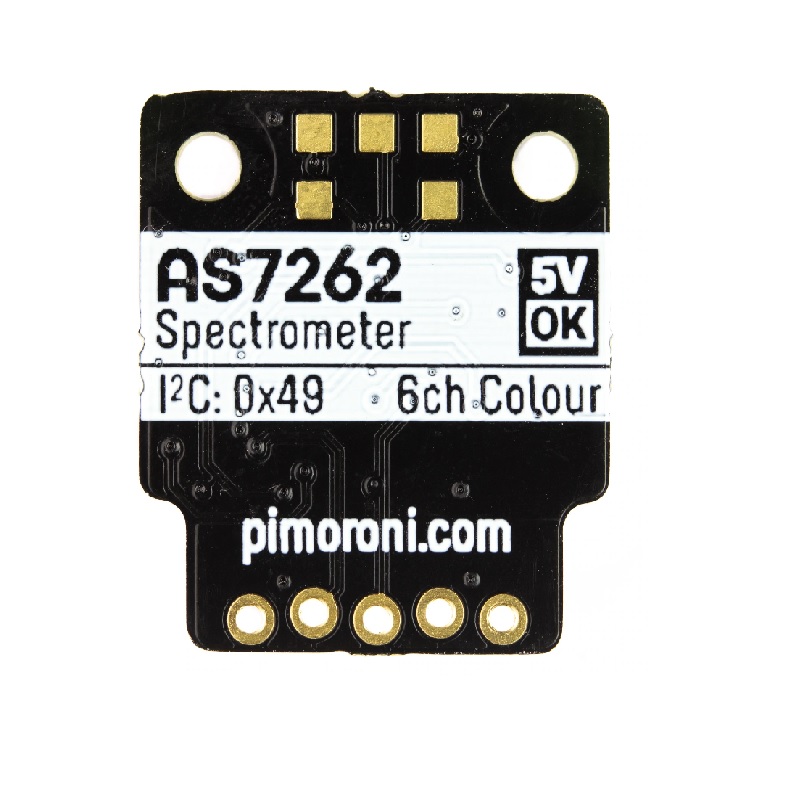

2. I2C interface (address: 0x49)
3. Visible filter set realized by silicon interference filters
4. 2 on-board illumination LEDs
5. 16-bit ADC with digital access
6. Programmable LED drivers
7. Reverse polarity protection
8. Raspberry Pi-compatible pinout (pins 1, 3, 5, 7, 9)
9. Compatible with Raspberry Pi (Python library)
10. Compatible with Raspberry Pi Pico (C++/MicroPython libraries)

Packages Includes:

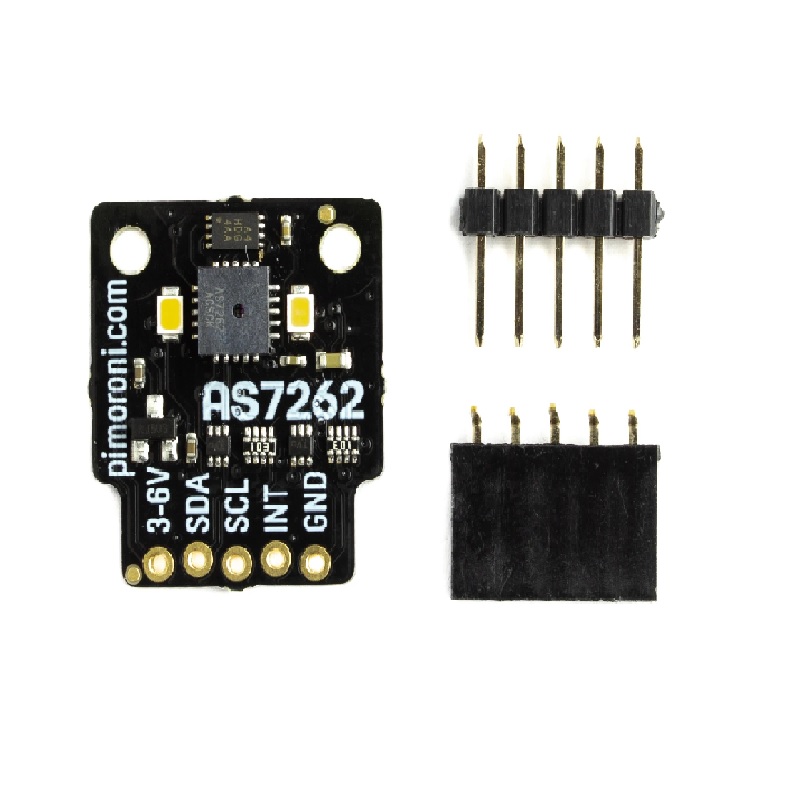

1 x PIMORONI AS7262 6-channel Spectral Sensor (Spectrometer)

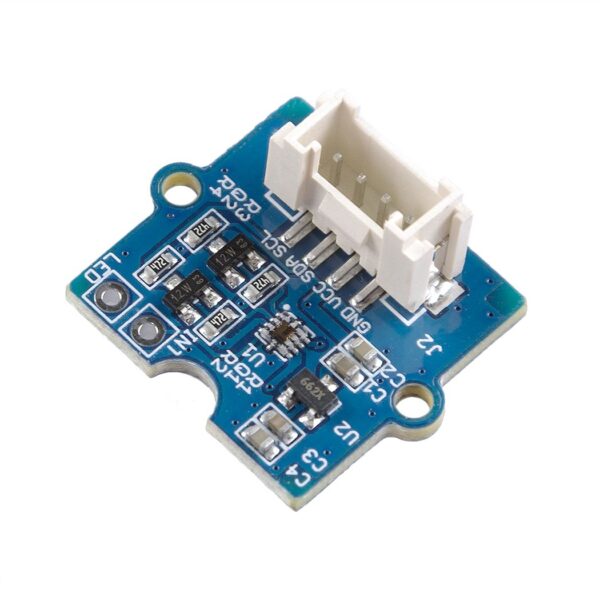

Summer is coming, want to make a UV detector to know the UV index when you are under the sun? Grove – Sunlight Sensor is recommended here.

Grove – Sunlight Sensor is a multi-channel digital light sensor, which has the ability to detect UV-light, visible light and infrared light.

This device is based on SI1145, a new sensor from SiLabs. The Si1145 is a low-power, reflectance-based, infrared proximity, UV index and ambient light sensor with I2C digital interface and programmable-event interrupt output. This device offers excellent performance under a wide dynamic range and a variety of light sources including direct sunlight.

Grove – Sunlight Sensor includes an onboard Grove connector, which helps you to connect it to your Arduino easily. You can use this device for making some projects which need to detect the light, such as a simple UV detector for your Raspberry Pi weather station, or a smart irrigation system using Arduino if you need to monitor the visible spectrum.

Getting Started with SeeedStudio Grove Sunlight Sensor

Hardware Overview:

• Grove Connector – a 4pin interface, containing VCC, GND, SDA and SCL
• LED – LED Driver pin
• INT – a programmable interrupt output
• SI1145 – IC

Application:

1. Light detection
2. smart irrigation system
3. DIY weather station

Features:

1. Multi-channel digital light sensor: can detect UV-light, visible light and infrared light

2. Wide spectrum detection range: 280-950nm

3. Easy to use: I2C Interface(7-bit), compatible with Grove port, just plug-and-play
4. Programmable configuration: Versatile for various applications

5. 3.3/5V Supply, suitable for many microcontrollers and SBCs

Package Includes:

1 x SeeedStudio Grove Sunlight Sensor

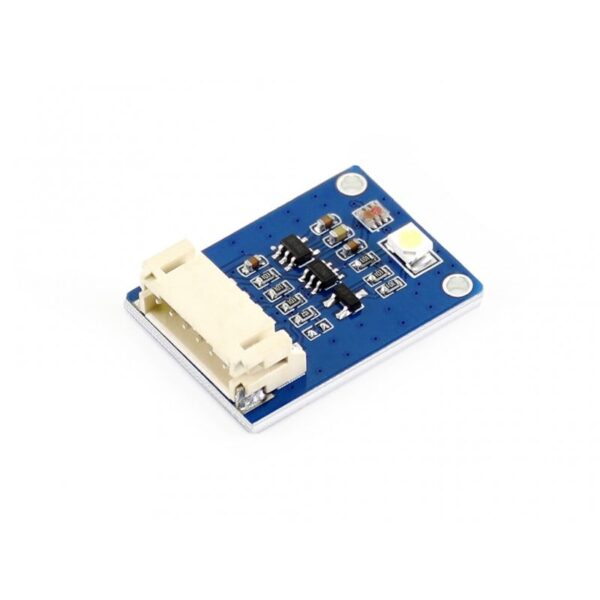

This is a color sensor module based on TCS34725, will output RGB data and light intensity through the I2C interface. Its advantages include high sensitivity, wide dynamic range, accurate measuring, etc.

Waveshare sensor allowing to detect the colours of light. It is based on the sensor TCS34725. It has the LED backlight and a built-in IR filter. It can work with any microcontroller equipped with I2C interface. It runs with the voltage from 3.3 V to 5 V.

Sensor, enabling the detection of colors from the RGB palette, equipped with a built-in IR filter that blocks unwanted components in the range of infrared radiation. To work with the sensor, applied was controlled through the transistor LED indicator, whose task is to illuminate the detected surface.

TCS34725 is used for color sensing. TCS34725 is an I2C bus-based color light-todigital converter with IR filter, provides a digital return of red, green , blue (RGB) and clear light sensing values. The high sensitivity, wide dynamic range and IR blocking filter make the TCS34725 an ideal color sensor solution for use under varying lighting conditions and through attenuating materials.

Application:

1. Sorting by color
2. Ambient light sensing and calibration
3. Products color identification and classification

Features:

1. Onboard TCS34725FN, embedded ADC, high sensitivity, wide dynamic range
2. I2C communication uses a few pins
3. Integrates IR blocking filter, minimizes the IR spectral component of the incoming light
4. Outputs RGB data without white balance
5. Outputs light intensity, feel the light like human eyes
6. Supports light intensity interrupt output, programmable upper and lower thresholds
7. Supports fill-light by onboard LED, adjustable brightness by PWM
8. Onboard voltage level translator, compatible with 3.3V/5V operating voltage
9. Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)

Specification:

1. Sensor: TCS34725FN
2. Communication interface: I2C
3. Operating voltage: 3.3V/5V
4. Dimension: 27mm × 20mm
5. Resolution: 4-ch RGBC, 16-bit per ch
6. Recommended measuring distance: 2mm

Package Includes:

1 x TCS34725 Color Sensor
1 x PH2.0 6PIN wire 20cm

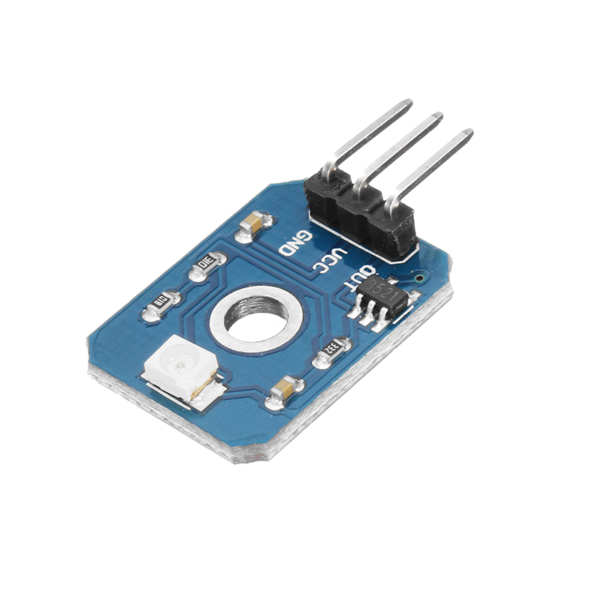

This is a UV Detection Sensor Module that is used to detect the UV radiation emitted by the flame and is sensitive to a wide range of flammable fuels including hydrocarbons, sulfur, hydrazine, and ammonia. This module is suitable for measuring the total amount of solar ultraviolet light intensity. also, it has to Contrast the World Health Organization UV Index grading standards.

UV Index Chart:

Connection mode:

VCC- is the positive input port of power supply, access 3.3V-5V voltage
GND-GND is the negative input port of the power supply
OUT-OUT is the output port of analog signal, connected to the I / O port of MCU

Features:

1. Suitable for measuring the total amount of solar ultraviolet light intensity
2. Contrast the World Health Organization UV Index grading standards
3. The detection wavelength of UV was 200-370nm
4. Fast response, full interchangeability

Specifications:

Package Includes:

1 x DC3.3V-5V UV Detection Sensor Module For Arduino Sensor

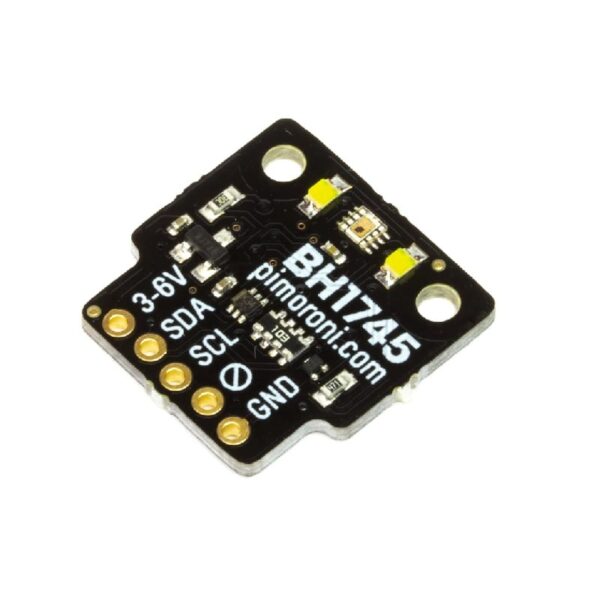

BH1745NUC is digital color sensor IC with I2C bus interface. This IC senses Red, Green and Blue light (RGB) and converts them to digital values. The high sensitivity, wide dynamic range and excellent Ircut characteristics makes this IC the most suitable to obtain the illuminance and color temperature of ambient light for adjusting LCD backlight of TV, mobile phone and
tablet PC. It is possible to detect very wide range light intensity. (0.005 – 40k lx)

Applications:

1. LCD TV
2. Mobile phone
3. NOTE PC
4. Tablet PC
5. Portable
6. game machine
7. Digital camera
8. Digital video camera
9. PDA
10. LCD display

Features:

1. The Excellent Ircut Characteristics with an Ircut Filter
2. The High Sensitivity and Wide Dynamic Range (0.005 – 40k lx)
3.  Supports Low Transmittance (Dark) Window
4. Correspond to I2C Bus Interface ( f/s mode support )
5. Low Current by Power Down Function
6. Rejecting 50Hz/60Hz Light Noise
7. Correspond to 1.8V Logic Interface
8. Programmable Interrupt Function
9. It is possible to select 2 type of I2C bus slave address (ADDR =’L’: “0111000”, ADDR =’H’: “0111001”)

Packages Includes:

1 x PIMORONI BH1745 Luminance and Colour Sensor Breakout

This is the BH1750 16-bit Ambient Light Sensor from Rohm. Because of how important it is to humans and most other living things, sensing the amount of light in an environment is commonplace to get started when learning to work with microcontrollers and sensors. It’s a small, capable and inexpensive light sensor that you can include in your next project to add the detection and measurement of light.

The BH1750 provides 16-bit light measurements in lux, the SI unit for measuring light, making it easy to compare against other values like references and measurements from other sensors. The BH1750 can measure from 0 to 65K+ lux, but with some calibration and advanced adjustment of the measurement time, it can even be convinced to measure as much as 100,000 lux!

Sensors tend to come in small packages and the BH1750 is no different.

Packaged on a PCB in our STEMMA QT form factor, the BH1750 comes integrated with a voltage regulator and level shifting circuitry to allow it to be used with 3.3V devices, like a Feather M4 or Raspberry Pi, or 5V devices, such as an Arduino.

Features:
