PM42S-048 Bipolar Stepper Motor

0 Reviews
Out of stock

Original price was: ₹121.90.Current price is: ₹97.75.

(-20%)
  • Estimated delivery time 2-4 days
  • (Subject to stock Availability)
SKU: rz24335633

Product details

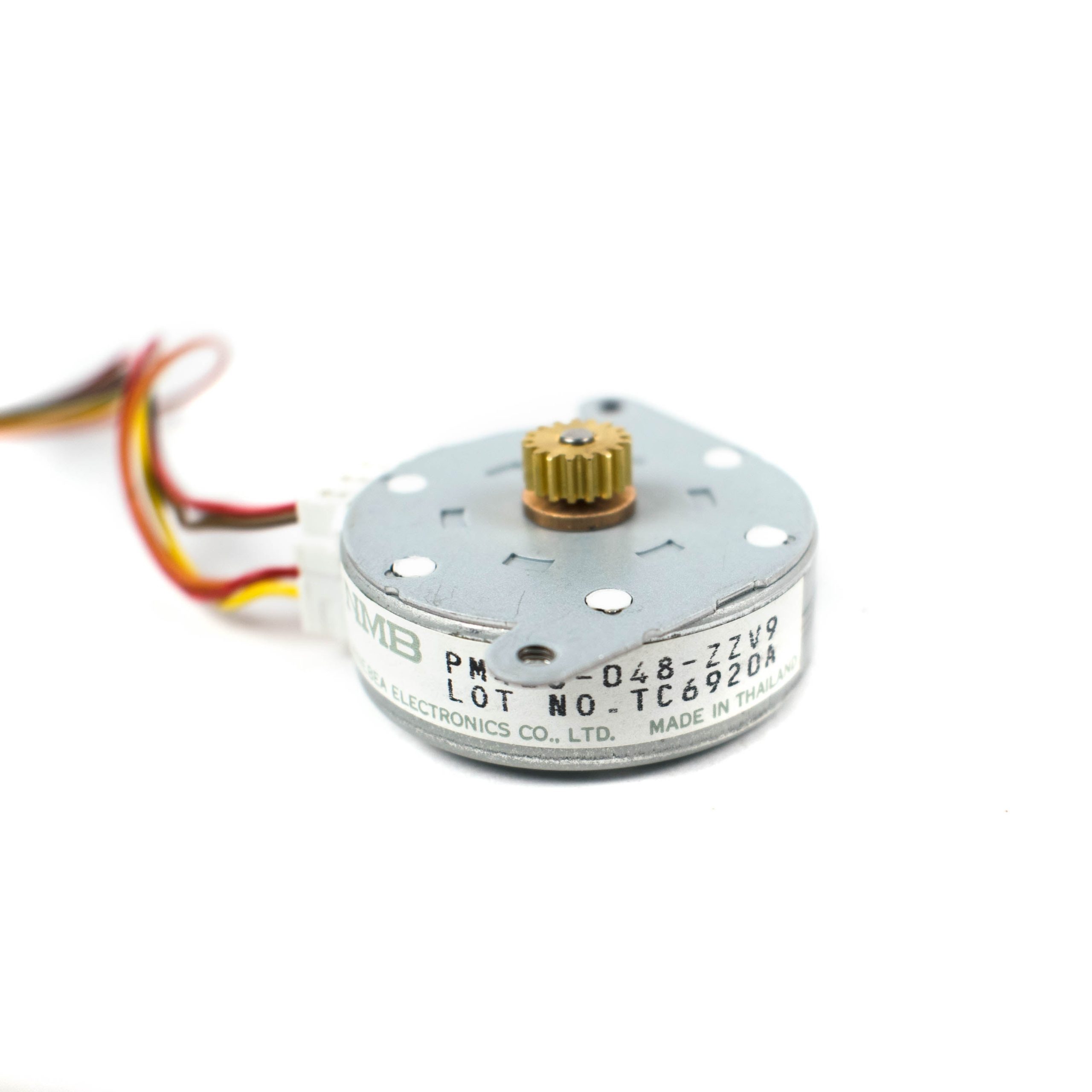

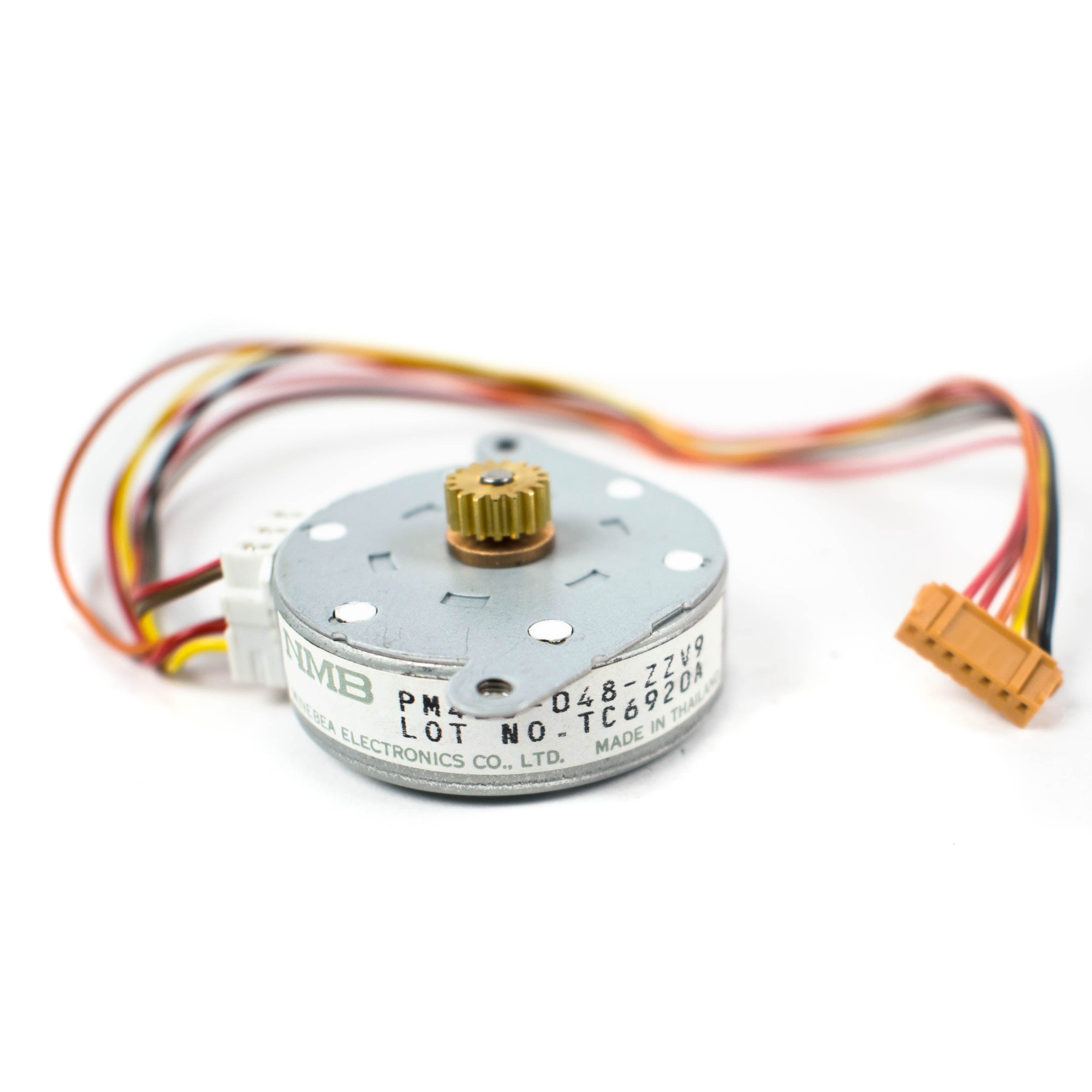

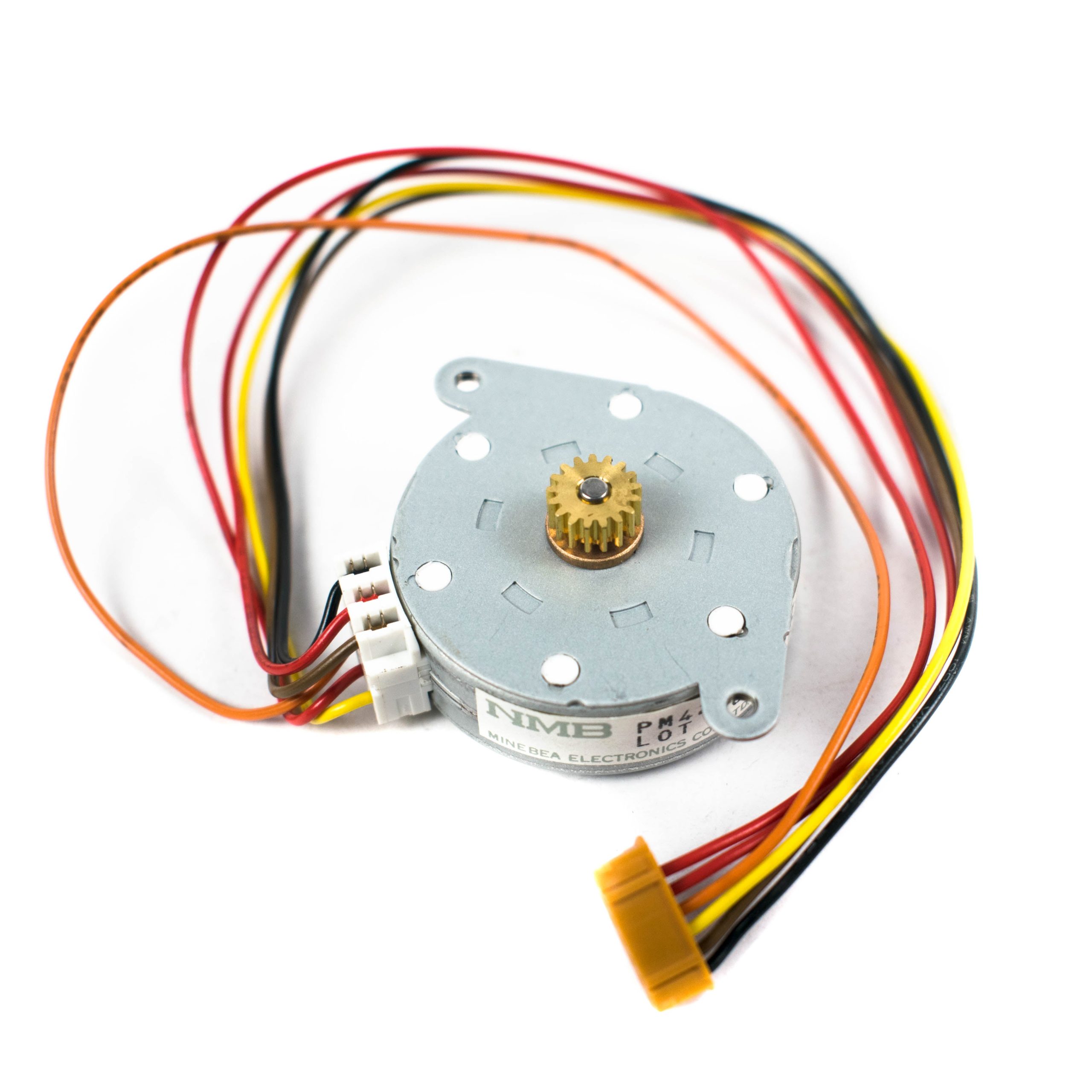

The PM42S-048 is a tiny 2-2 PHASE stepper motor with 48 steps per rotation and an operating voltage of 24v 600ma. It offers adequate torque to move small robots and comes with a gear shaft.

Application

  • OA Equipment: Printer/Scanner
  • Industrial Equipment: Flow control valve
  • Vending Machines
  • Sewing machine, Blind slider
Specifications
Model PM42S-048-ZZV9
Operating Voltage 24V DC
Max. Operating Current 600mA
Number of Steps per Rotation 48(7.5°/step)
Coil Resistance 11.3Ω
Phase 2-2
Type Bipolar
Holding Torque 66mNm
Size 42x47x22mm
Country of Origin China
